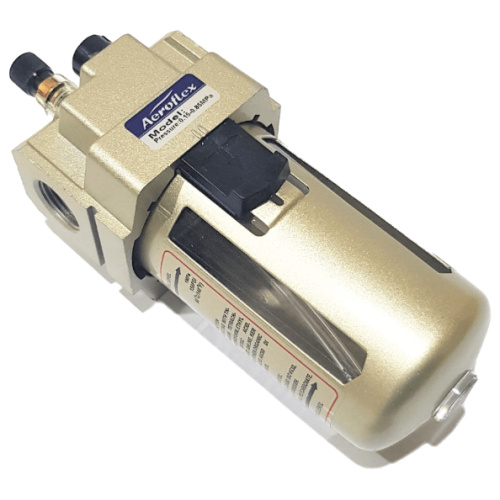

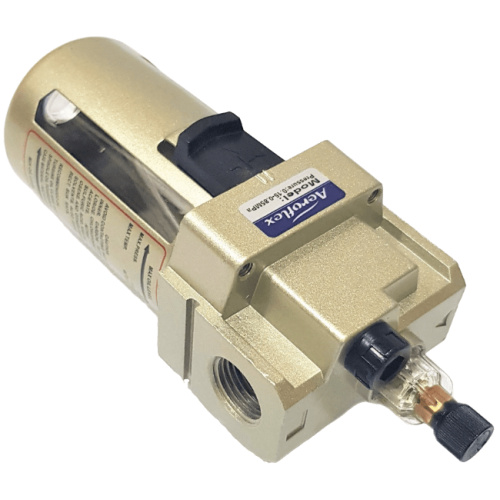

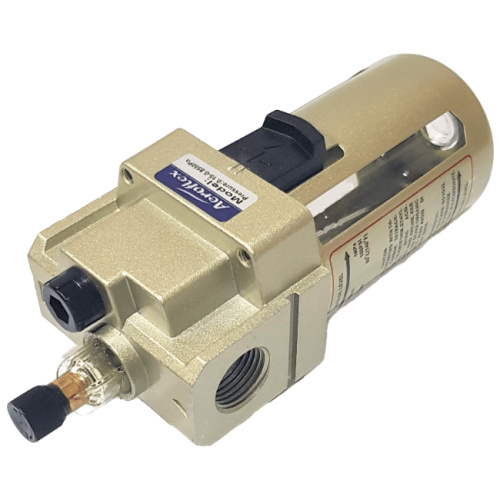

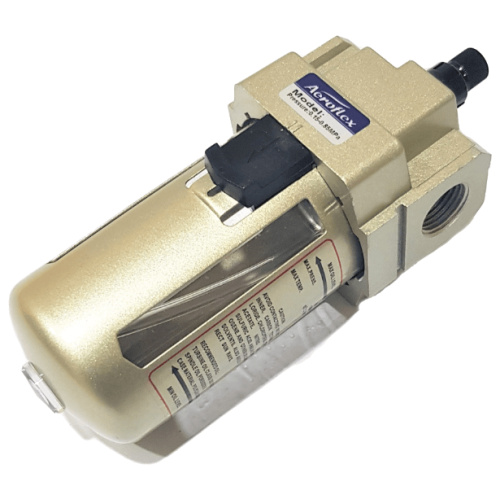

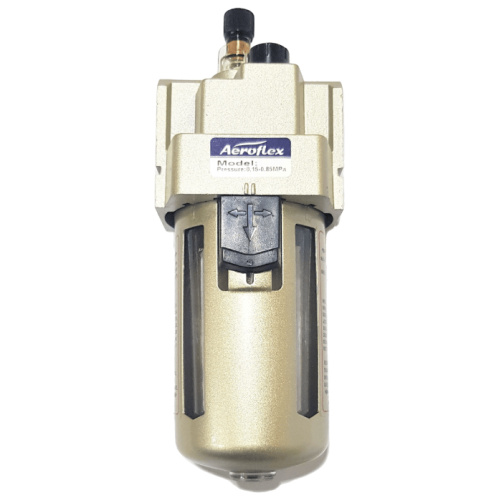

Aeroflex 3/4 Inch Pneumatic Lubricator Unit L-06 – Air Lubricator Unit with Metal Guard
₹1,018.00₹1,357.00 Price Excluding GST - ₹862.71 (-25%)
Features
- Function: Modular Air Lubricator Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Max. Operating Pressure: 10 Bar
- Working Pressure: 0.5 to 8.5 Bar
- Proof Pressure: 15 Bar
Description
| Function | Modular Air Lubricator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Bowl Assembly | Polycarbonate With Metal Bowl Guard |
| Media | Air |
| Max. Operating Pressure | 10 Bar |
| Working Pressure | 0.5 to 8.5 Bar |
| Proof Pressure | 15 Bar |
| Recommended Oil Use | ISO VG32 or Same Grade |
Dimensions
| Port | A | B | C | D | P |
|---|---|---|---|---|---|
|
3/4"
|
75
|
177
|
39
|
70
|
73
|
Technical Data
| Model | Port Size | Bowl Guard | Fluid | Temperature | Oil Use | Working Pressure Range | Max. Flow Rate Nl/Min |
|---|---|---|---|---|---|---|---|
| L-06 | 3/4″ BSP | Metal | Air | 5 to 60deg C | ISO VG32 | 0.5 to 8.5 Bar | 6300 |
