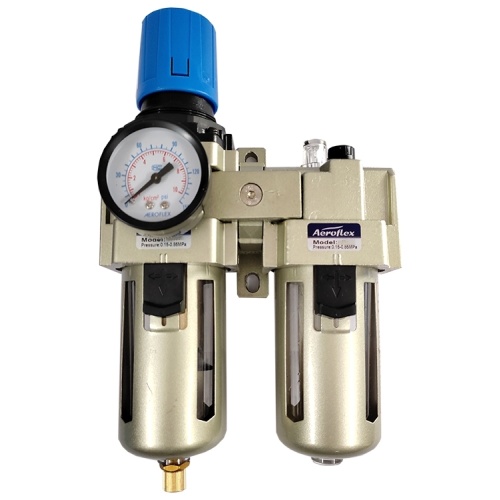

Aeroflex 3/4 Inch Pneumatic FRL Unit 2FRL-06 – Air Filter Regulator and Lubricator Unit with Metal Guard
₹2,744.00₹3,658.00 Price Excluding GST - ₹2,325.42 (-25%)
Features
- Function: Modular Filter Regulator & Lubricator Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Max. Operating Pressure: 10 Bar
- Relief Pressure: Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min)
- Working Pressure: 0.5 to 8.5 Bar
- Proof Pressure: 15 Bar
Description
| Function | Modular Filter Regulator & Lubricator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Filter Element | Bronze |
| Bowl Assembly | Polycarbonate With Metal Bowl Guard |
| Media | Air |
| Max. Operating Pressure | 10 Bar |
| Relief Pressure | Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min) |
| Working Pressure | 0.5 to 8.5 Bar |
| Proof Pressure | 15 Bar |
| Regulator Construction | Relieving Type |
| Recommended Lubricant | Class 1 Turbine Oil (ISO VG32) |
Dimensions
| Port | A | B | C | D | E | F | G | H | I | J | K | L | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3/4"
|
164
|
267
|
114
|
70
|
70.5
|
50
|
82
|
40
|
1/4"
|
9
|
13
|
7
|
88
|
Technical Data
| Model | Port Size | Gauge Port | Fluid | Temperature | Filtration Rating | Working Pressure Range | Max. Flow Rate Nl/Min |
|---|---|---|---|---|---|---|---|
| 2FRL-06 | 3/4″ BSP | 1/4″ | Air | 5 to 60deg C | 40 µm | 0.5 to 8.5 Bar | 3500 |
Condition: Supply Pressure – 7 Bar, Set Pressure: 5 Bar, Filtration: 5 µm.
