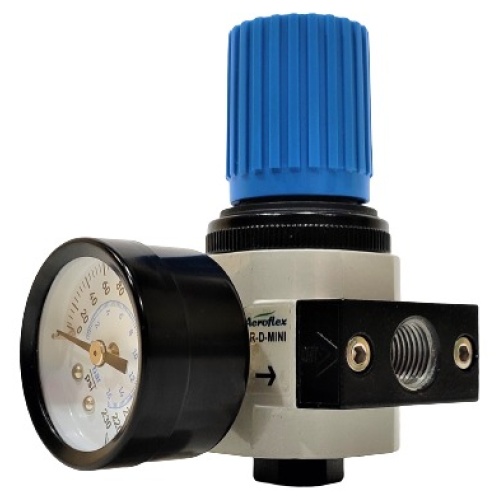

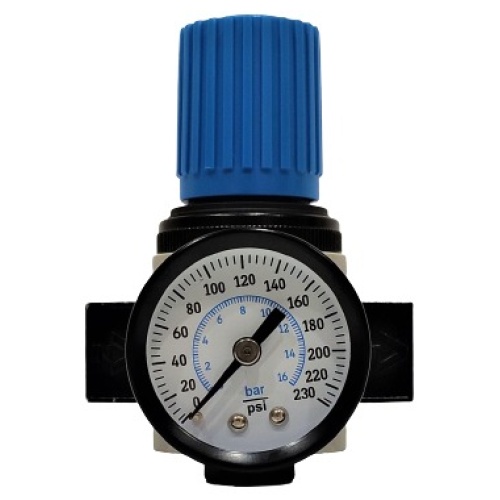

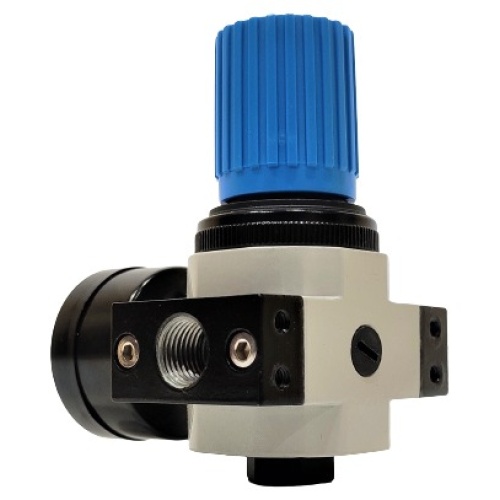

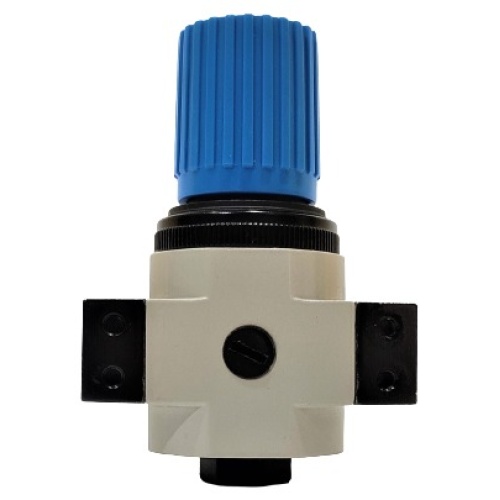

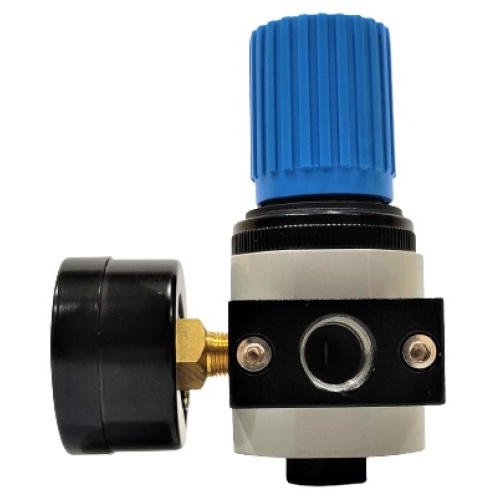

Aeroflex 1/2 Inch Pneumatic Regulator Unit R04-FST – Air Regulator Unit
₹1,991.00₹2,655.00 Price Excluding GST - ₹1,687.29 (-25%)
Features
- Function: Air Regulator Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Media: Air
- Working Pressure: 0.5 to 1.2 Bar
Description
| Function | Air Regulator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Media | Air |
| Working Pressure | 0.5 to 1.2 Bar |
| Regulator Construction | Relieving Type |

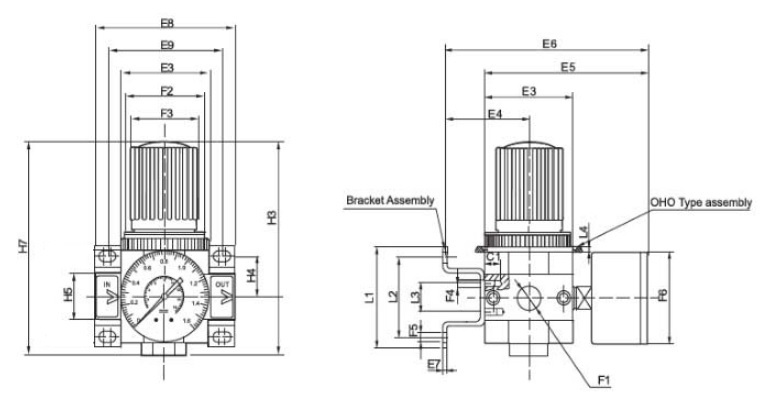

Dimensions
| Port | E3 | E4 | E5 | E6 | E7 | E8 | E9 | F1 | F2 | F3 | F4 | F5 | F6 | L1 | L2 | L3 | H3 | H4 | H5 | H7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1/2"
|
55
|
47
|
93
|
112
|
3
|
85
|
70
|
G 1/2"
|
52 X 1.5
|
50
|
M5
|
5.5
|
52
|
72
|
60
|
22
|
80
|
24.5
|
20
|
96
|
Technical Data
| Model | Port Size | Gauge Port | Fluid | Temperature | Filtration Rating | Working Pressure Range | Nominal Flow Rate L/Min.* |
|---|---|---|---|---|---|---|---|
| R04-FST | 1/2″ BSP | 1/4″ | Air | 5 to 60deg C | 40 µm | 0.5 to 1.2 Bar | 3500 |
Condition: Under Standard Pressure
