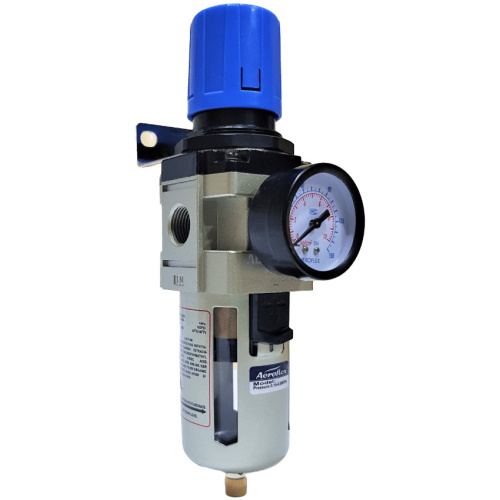

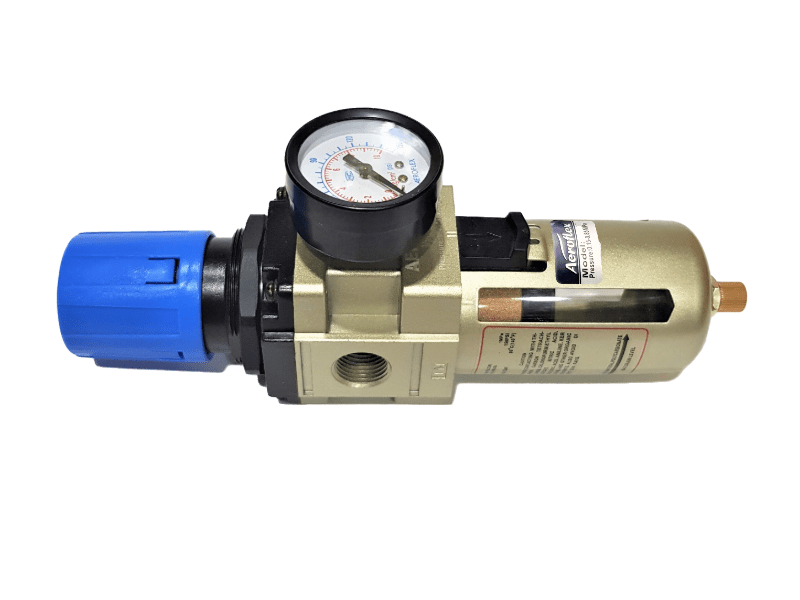

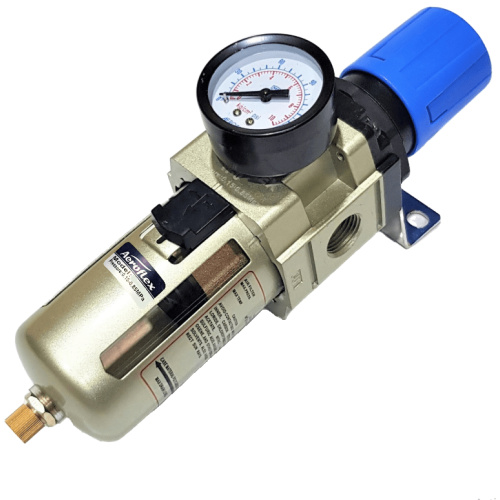

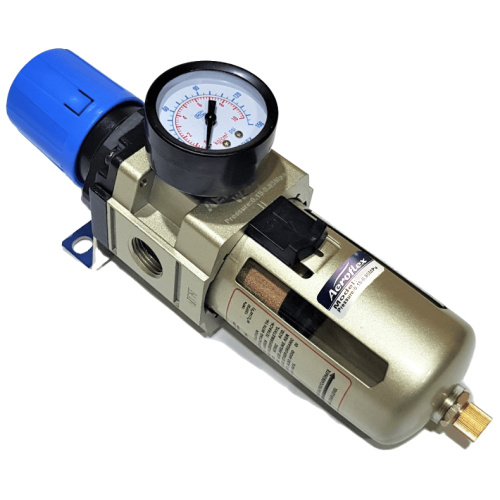

Aeroflex 3/8 Inch Pneumatic FR Unit W-03 – Air Filter Regulator Combination Unit with Metal Guard
₹1,124.00₹1,499.00 Price Excluding GST - ₹952.54 (-25%)
Features
- Function: Modular Filter Regulator Combination Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Max. Operating Pressure: 10 Bar
- Relief Pressure: Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min)
- Working Pressure: 0.5 to 8.5 Bar
- Proof Pressure: 15 Bar
Description
| Function | Modular Air Filter Regulator Combination Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Filter Element | Bronze |
| Bowl Assembly | Polycarbonate With Metal Bowl Guard |
| Media | Air |
| Max. Operating Pressure | 10 Bar |
| Relief Pressure | Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min) |
| Working Pressure | 0.5 to 8.5 Bar |
| Proof Pressure | 15 Bar |
| Regulator Construction | Relieving Type |
| Drain Function | Differential Drain |

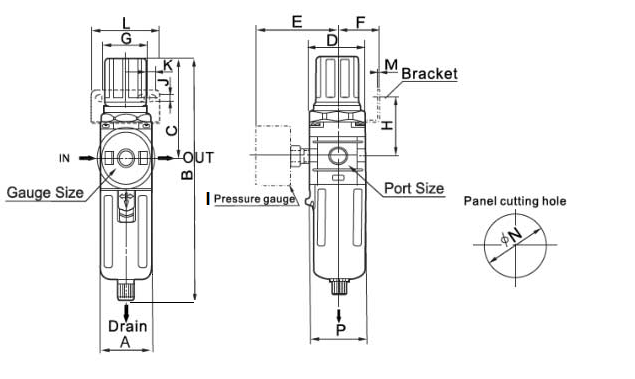

Dimensions
| Port | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3/8"
|
53
|
207
|
91
|
53
|
58
|
39
|
40
|
46
|
1/8"
|
6.5
|
12
|
53
|
2.3
|
42.5
|
56
|
Technical Data
| Model | Port Size | Gauge Port | Fluid | Temperature | Filtration Rating | Working Pressure Range | Max. Flow Rate Nl/Min |
|---|---|---|---|---|---|---|---|
| W-03 | 3/8″ BSP | 1/8″ | Air | 5 to 60deg C | 40 µm | 0.5 to 8.5 Bar | 2000 |
Condition: Supply Pressure – 7 Bar, Set Pressure: 5 Bar, Filtration: 5 µm.
