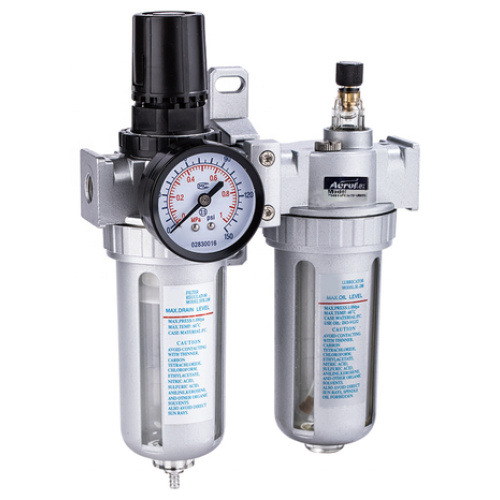

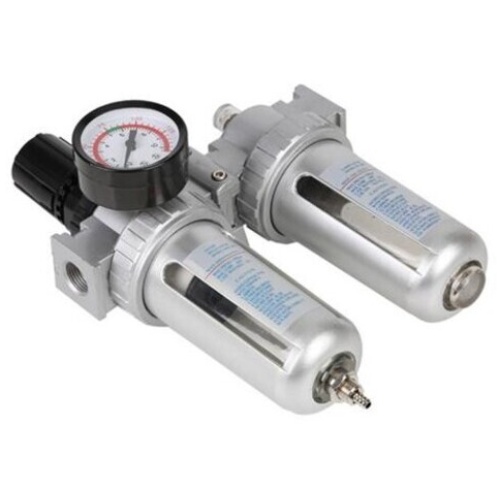

Aeroflex 3/8 Inch Pneumatic FRL Unit SFC-4000 – Air Filter Regulator and Lubricator Unit with Guard
₹1,571.00₹2,095.00 Price Excluding GST - ₹1,331.36 (-25%)
Features
- Function: Filter Regulator & Lubricator Unit
- End Connection: Screwed
- Port Size: 3/8″ with Adaptor
- Body Material: Aluminium Alloy
- Max. Operating Pressure: 10 Bar
- Regulator Construction: Relieving Type
Description
| Function | Air Filter Regulator & Lubricator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Alloy |
| Valve Assembly & Seal | Brass, NBR |
| Filter Element | Bronze |
| Bowl Assembly | Polycarbonate With Metal Bowl Guard |
| Media | Air |
| Max. Operating Pressure | 10 Bar |
| Working Pressure | 1.5 to 8.5 Bar |
| Regulator Construction | Relieving Type |
| Recommended Lubricant | Class 1 Turbine Oil (ISO VG32) |

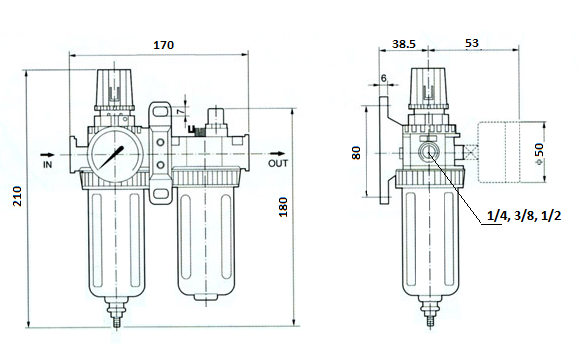

Dimensions
Technical Data
| Model | Port Size | Gauge Port | Fluid | Temperature | Filtration Rating | Working Pressure Range | Max. Flow Rate L/Min |
|---|---|---|---|---|---|---|---|
| SFC4000-38 | 3/8″ BSP | 1/4″ | Air | 5 to 60deg C | 40 µm | 1.5 to 8.5 Bar | 2500 L/min. |
Condition: Under Standard Presure, Port Size – 1/4 & 3/8 with adaptor
