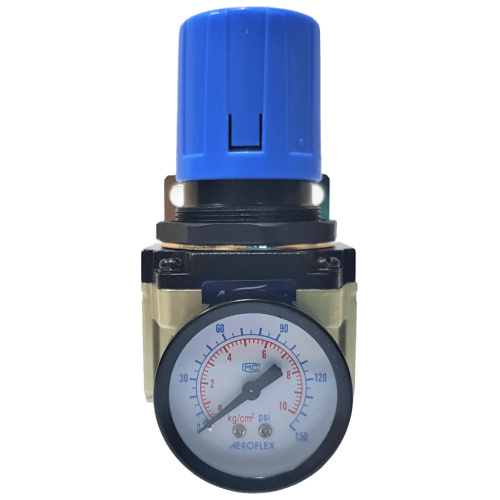

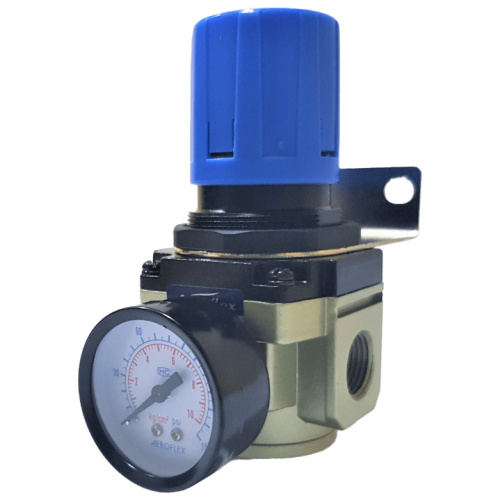

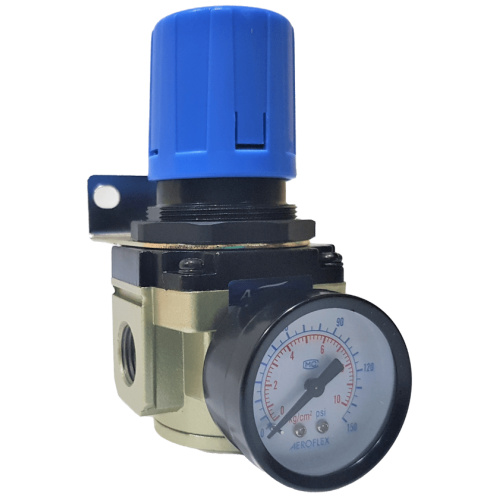

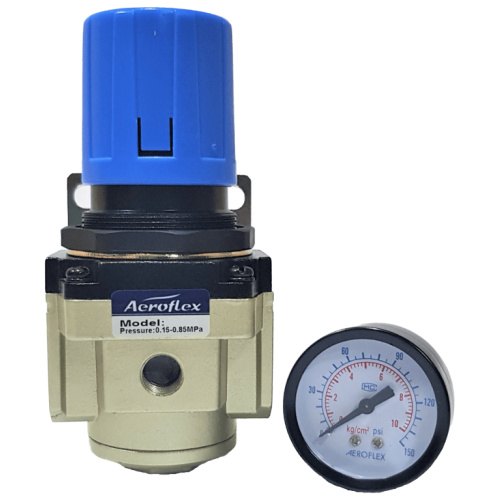

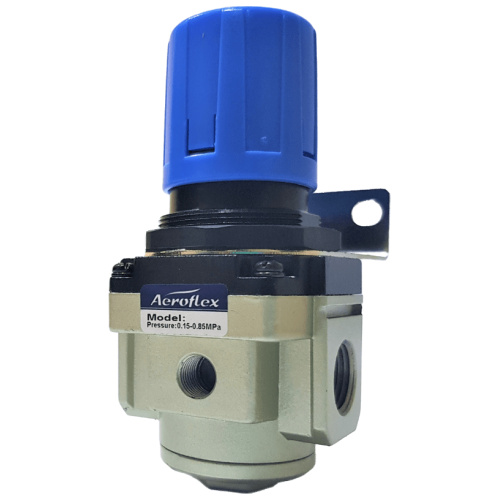

Aeroflex 1/2 Inch Pneumatic Regulator Unit R-04 – Air Regulator Unit
₹1,217.00₹1,623.00 Price Excluding GST - ₹1,031.36 (-25%)
Features
- Function: Modular Air Regulator Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Max. Operating Pressure: 10 Bar
- Relief Pressure: Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min)
- Working Pressure: 0.5 to 8.5 Bar
- Proof Pressure: 15 Bar
Description
| Function | Modular Air Regulator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Media | Air |
| Max. Operating Pressure | 10 Bar |
| Working Pressure | 0.5 to 8.5 Bar |
| Proof Pressure | 15 Bar |
| Regulator Construction | Relieving Type |

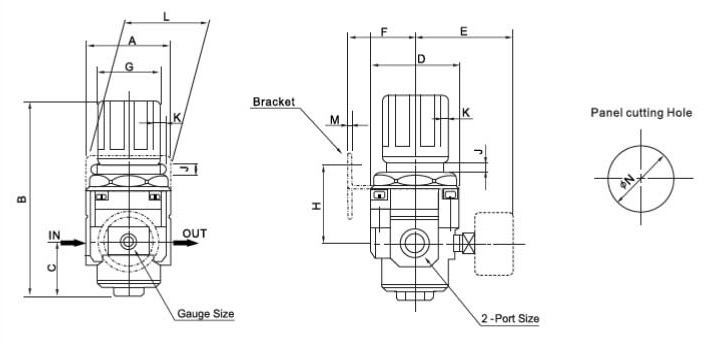

Dimensions
| Port | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1/2"
|
70
|
147
|
37
|
70
|
65
|
50
|
50
|
53
|
1/4"
|
8
|
10
|
70
|
2.3
|
52
|
Technical Data
| Model | Port Size | Gauge Port | Fluid | Temperature | Working Pressure Range | Max. Flow Rate Nl/Min |
|---|---|---|---|---|---|---|
| R-04 | 1/2″ BSP | 1/4″ BSP | Air | 5 to 60deg C | 0.5 to 8.5 Bar | 6000 |
