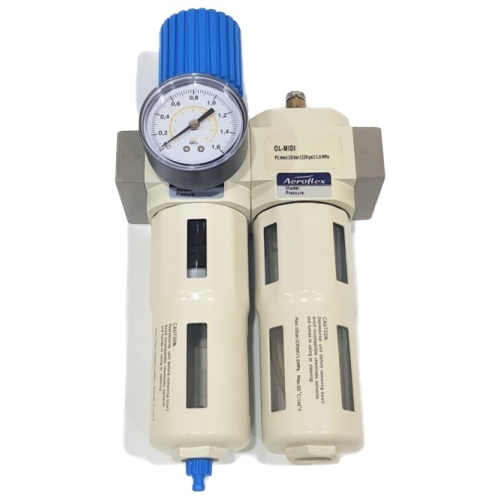

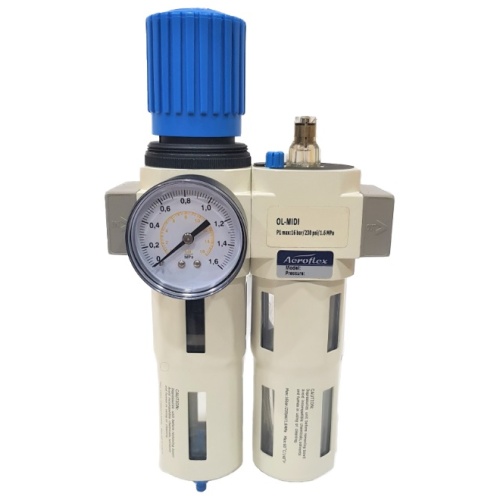

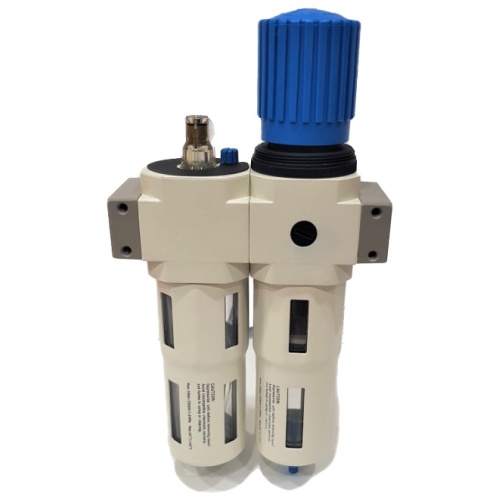

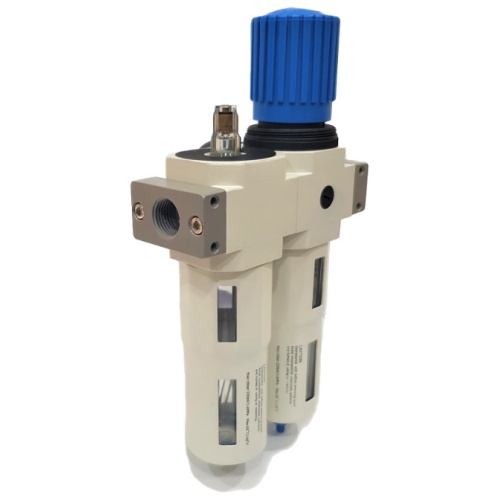

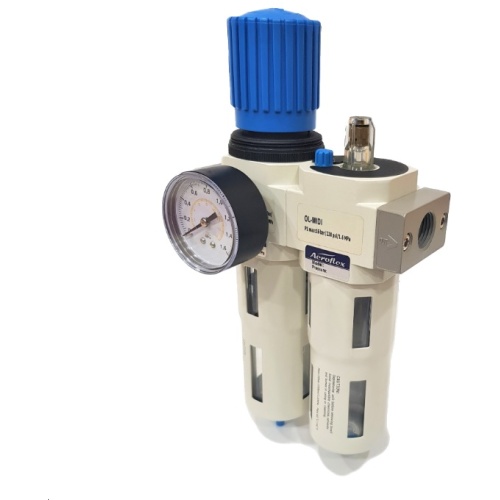

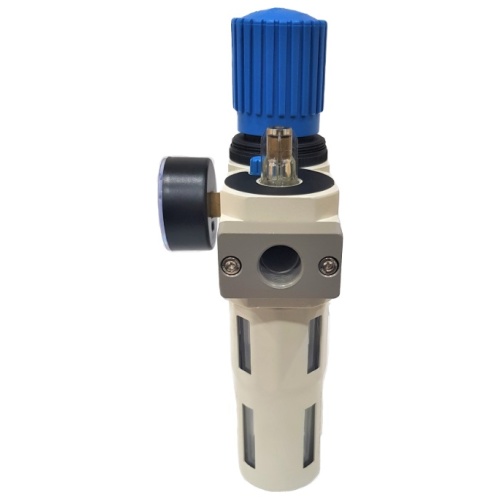

Aeroflex 1/4 Inch Pneumatic FRL Unit 2FRL02-FST – Air Filter Regulator and Lubricator Unit with Guard
₹2,434.00₹3,245.00 Price Excluding GST - ₹2,062.71 (-25%)
Features
- Function: Filter Regulator & Lubricator Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Max. Operating Pressure: 16 Bar
- Media: Compressed Air
- Working Pressure: 0.5 to 1.2 Bar
Description
| Function | Filter Regulator & Lubricator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Filter Element | Bronze |
| Media | Air |
| Bowl Assembly | Polycarbonate With Metal Bowl Guard |
| Working Pressure | 0.5 to 1.2 Bar |
| Regulator Construction | Relieving Type |
| Recommended Lubricant | Class 1 Turbine Oil (ISO VG32) |
Dimensions
| Port | E1 | E2 | E3 | E4 | E5 | E6 | E7 | F1 | F2 | F3 | F4 | F5 | F6 | L1 | L2 | L3 | H1 | H2 | H3 | H4 | H5 | H6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1/4"
|
104
|
92
|
40
|
39
|
74
|
92
|
2
|
G 1/4"
|
36 X 1.5
|
31
|
34
|
4.5
|
40
|
44
|
35
|
11
|
194
|
169
|
69
|
17.5
|
20
|
15
|
Technical Data
| Model | Port Size | Gauge Port | Fluid | Temperature | Filtration Rating | Working Pressure Range | Capacity of Condensate Fluid | Nominal Flow Rate L/Min* |
|---|---|---|---|---|---|---|---|---|
| 2FRL02-FST | 1/4″ BSP | 1/8″ | Air | 5 to 60deg C | 40 µm | 0.5 to 1.2 Bar | 22ml | 1000 |
Condition: Under Standard Pressure
