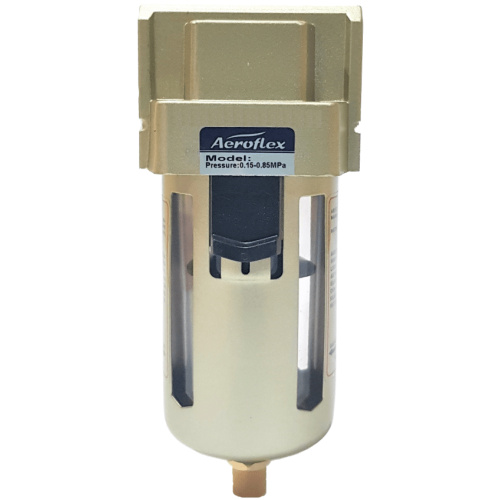

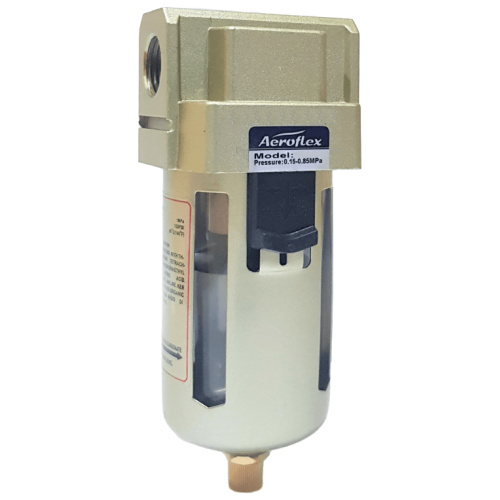

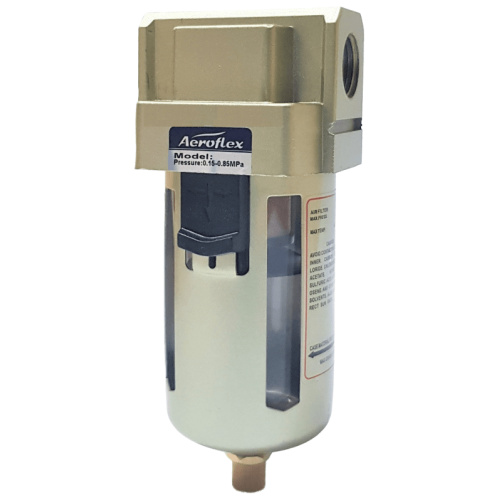

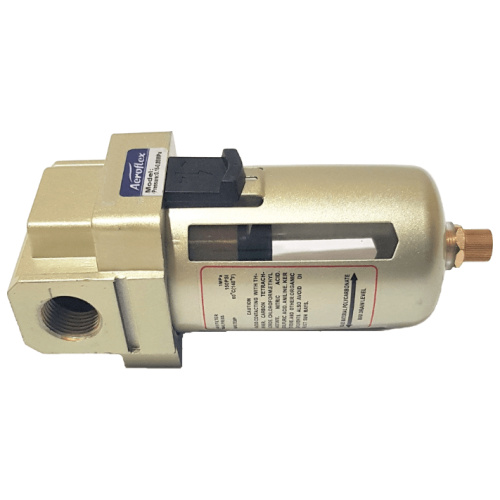

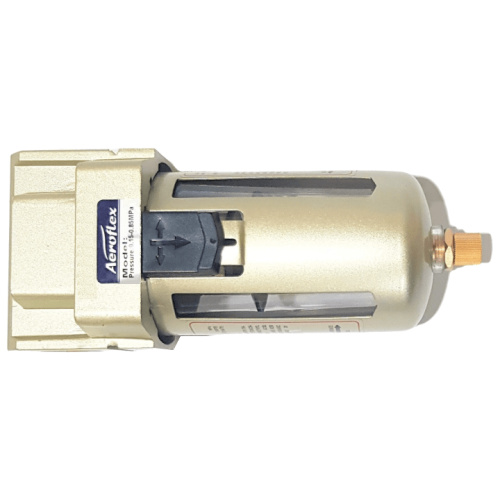

Aeroflex 3/4 Inch Pneumatic Filter Unit F-06 – Air Filter Unit with Metal Guard
₹885.00₹1,180.00 Price Excluding GST - ₹750.00 (-25%)
Features
- Function: Modular Air Filter Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Max. Operating Pressure: 10 Bar
- Working Pressure: 0.5 to 8.5 Bar
- Proof Pressure: 15 Bar
Description
| Function | Modular Filter Regulator Combination Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Filter Element | Bronze |
| Bowl Assembly | Polycarbonate With Metal Bowl Guard |
| Media | Air |
| Max. Operating Pressure | 10 Bar |
| Relief Pressure | Set Pressure + 0.5 Bar (relief flow rate of 0.1 L/min) |
| Working Pressure | 0.5 to 8.5 Bar |
| Proof Pressure | 15 Bar |
| Regulator Construction | Relieving Type |
| Drain Function | Differential Drain |
Dimensions
| Port | A | B | C | D | P |
|---|---|---|---|---|---|
|
3/4"
|
75
|
172.5
|
20
|
70
|
73
|
Technical Data
| Model | Port Size | Bowl Guard | Fluid | Temperature | Filtration Rating | Working Pressure Range | Max. Flow Rate Nl/Min |
|---|---|---|---|---|---|---|---|
| F-06 | 3/4″ BSP | Metal | Air | 5 to 60deg C | 40 µm | 0.5 to 8.5 Bar | 6000 |
Condition: Supply Pressure – 7 Bar, Set Pressure: 5 Bar, Filtration: 5 µm.
