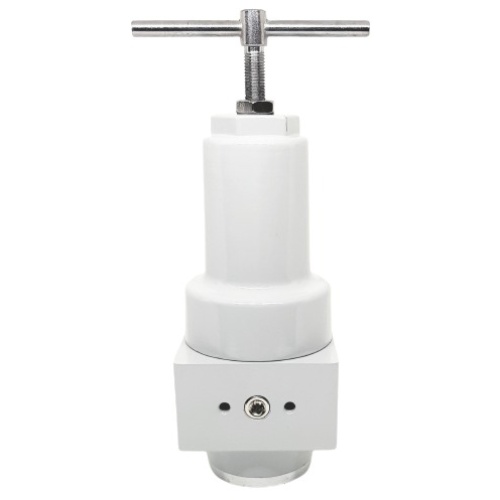

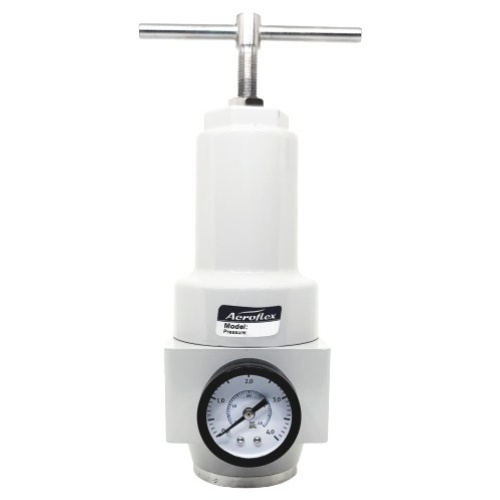

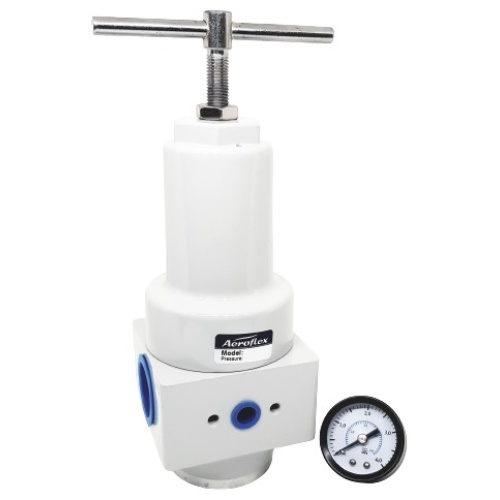

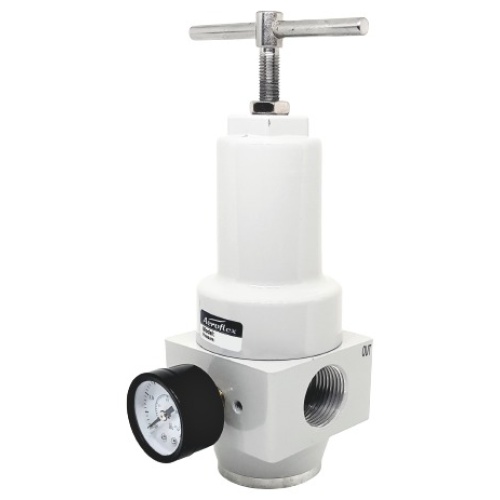

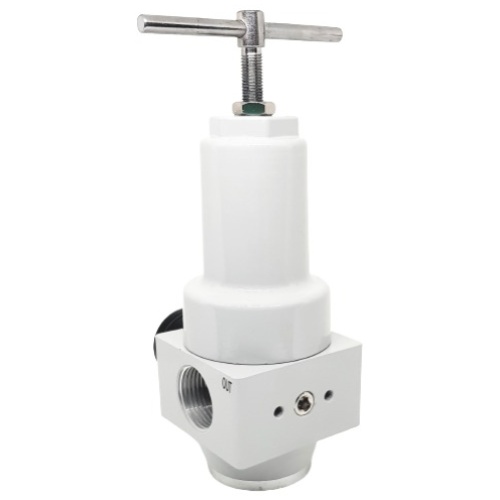

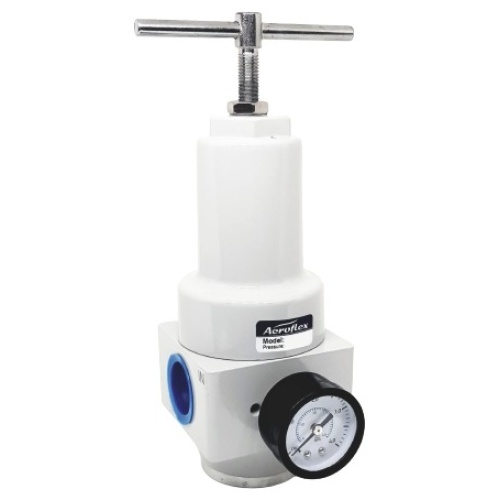

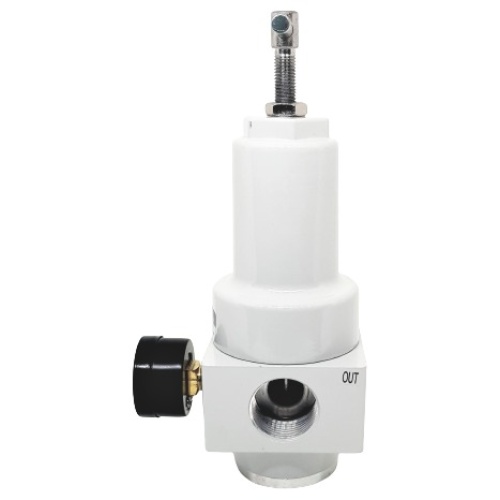

Aeroflex 3/4 Inch High Pressure Air Regulator with Gauge QTYH-25 – Pneumatic High Pressure Regulator Unit
₹4,691.00₹6,254.00 Price Excluding GST - ₹3,975.42 (-25%)
Features
- Function: High Pressure Air Regulator Unit
- Pressure Gauge : Included
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Media: Compressed Air
- Working Pressure: 0.5 to 35 Bar
- Proof Pressure: 40 Bar
Description
| Function | High Pressure Air Regulator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Media | Compressed Air |
| Proof Pressure | up to 40 Bar |
| Regulator Construction | Needle Type |

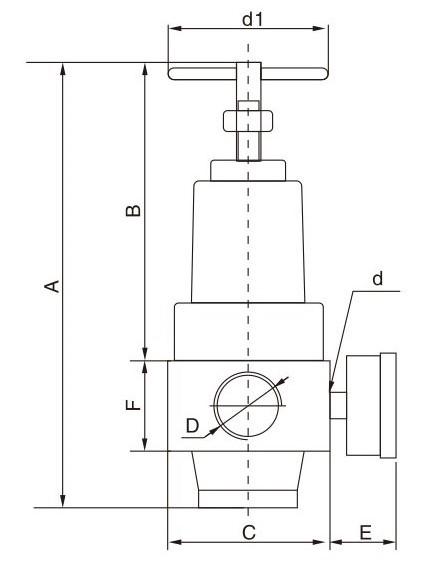

Dimensions
| Port | A | B | C | D | E | F | d | d1 |
|---|---|---|---|---|---|---|---|---|
|
3/4"
|
220
|
150
|
75
|
3/4"
|
33
|
45
|
1/4"
|
100
|
Technical Data
| Model | Body Size | Port Size | Gauge Port | Fluid | Temperature | Working Pressure Range | Proof Pressure |
|---|---|---|---|---|---|---|---|
| QTYH-25-20 | 25 | 3/4″ BSP | 1/4″ | Air | 5 to 60deg C | 0.5 to 35 Bar | 40 Bar |
Condition: Under Standard Pressure, Port Size: with adaptor
