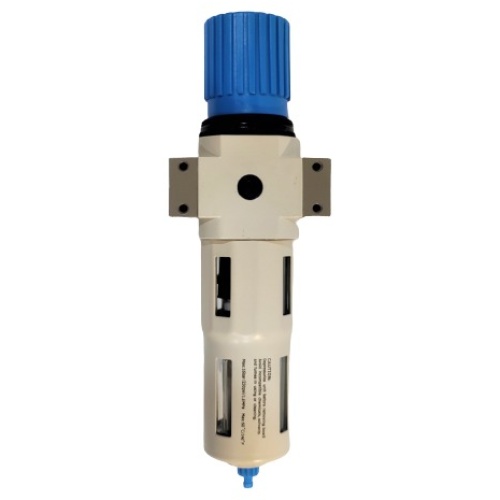

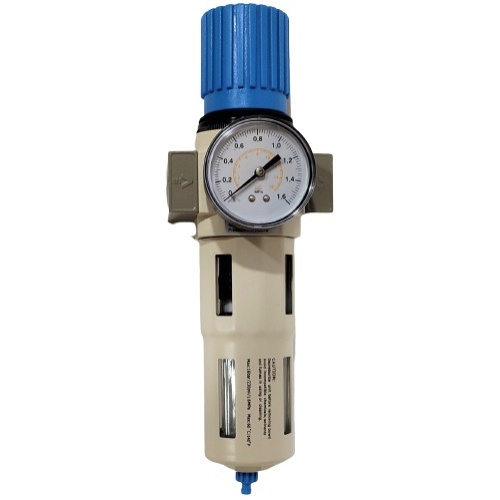

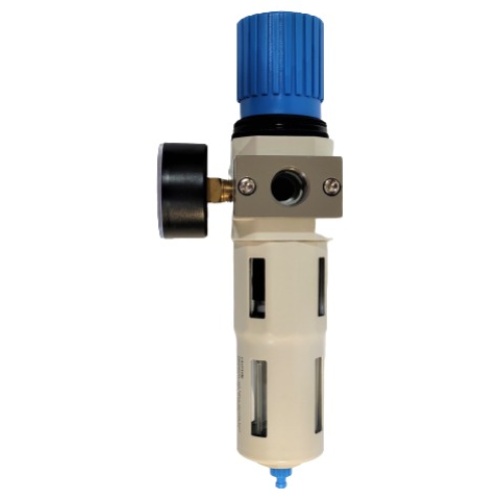

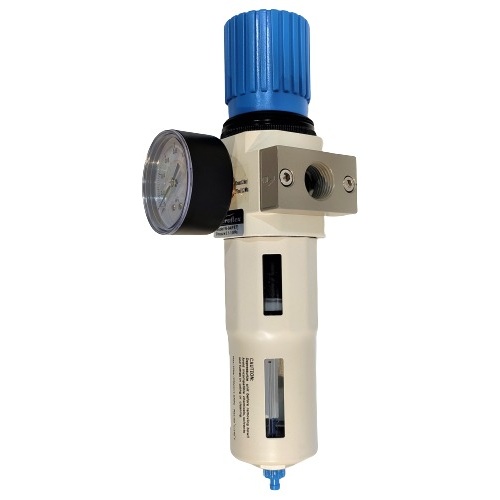

Aeroflex 1/4 Inch Pneumatic FR Unit W02-FST – Air Filter Regulator Combination Unit with Guard
₹1,682.00₹2,242.00 Price Excluding GST - ₹1,425.42 (-25%)
Features
- Function: Filter Regulator Combination Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Media: Air
- Working Pressure: 0.5 to 1.2 Bar
Description
| Function | Filter Regulator Combination Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Filter Element | Bronze |
| Bowl Assembly | Polycarbonate with Metal Bowl Guard |
| Media | Air |
| Working Pressure | 0.5 to 1.2 Bar |
| Regulator Construction | Relieving Type |
| Recommended Lubricant | Class 1 Turbine Oil (ISO VG32) |

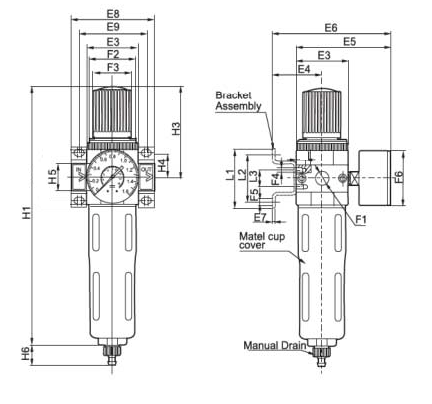

Dimensions
| Port | E3 | E4 | E5 | E6 | E7 | E8 | E9 | F1 | F2 | F3 | F4 | F5 | F6 | L1 | L2 | L3 | H1 | H3 | H4 | H5 | H6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1/4"
|
40`
|
39
|
74
|
92
|
2
|
64
|
52
|
G 1/4"
|
36 X 1.5
|
31
|
M4
|
4.5
|
40
|
44
|
35
|
11
|
194
|
69
|
17.5
|
20
|
15
|
Technical Data
| Model | Port Size | Gauge Port | Fluid | Temperature | Filtration Rating | Working Pressure Range | Capacity of Condensate Fluid | Nominal Flow Rate L/Min |
|---|---|---|---|---|---|---|---|---|
| W02-FST | 1/4″ BSP | 1/8″ | Air | 5 to 60deg C | 40 µm | 0.5 to 1.2 Bar | 22 ml | 1400 |
Condition: Under Standard Pressure
