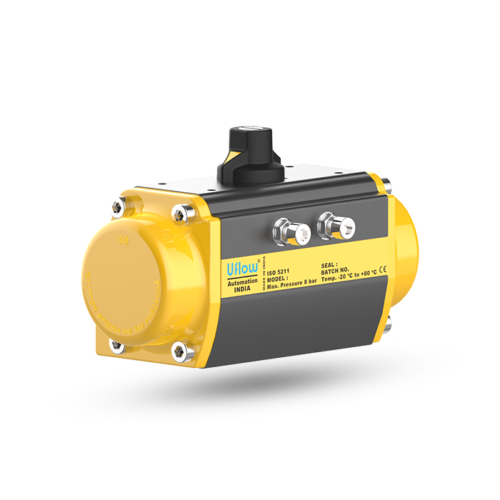

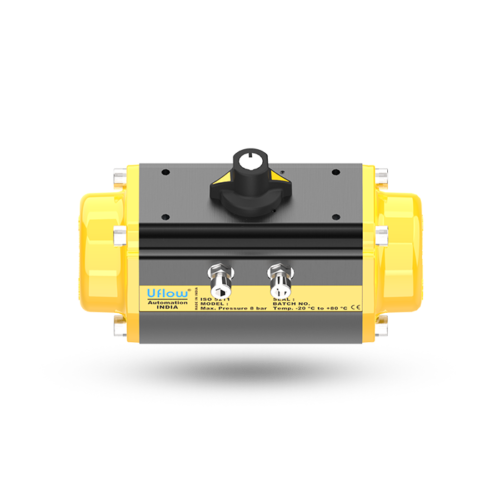

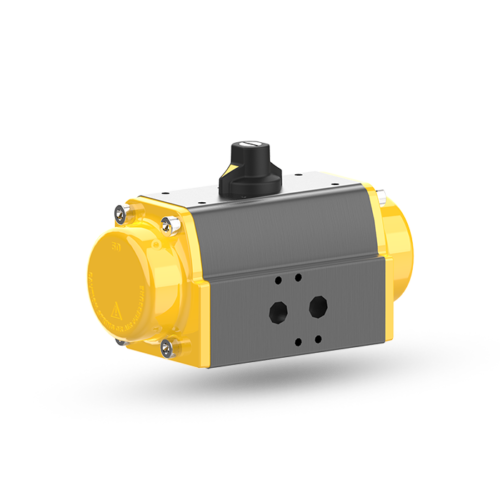

Description
| Body | Aluminum extruded, hard-anodized corrosion resistance |
|---|---|
| Design | Compact, Maintenance-free, Wear proof Aluminum Free Rack & Pinion design |
| Performance | Low air consumption with max. Torque |
| Operation | Finer teeth module for Smooth traveling & jerk-free sliding |

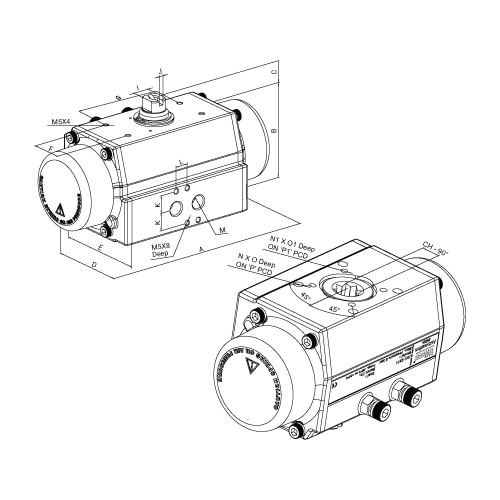

Dimensions
| Model | A | B | C | D | E | F | G | I | J | K | L | M | N | O | P | N1 | O1 | P1 | CH 90 | ISO FLANGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS80
|
233
|
103
|
20
|
98
|
98
|
30
|
80
|
18
|
4
|
16
|
12
|
1/4"
|
M8
|
12
|
70
|
M6
|
10
|
50
|
17
|
F07
|
Technical Data
Torque Chart
| Model No. | Spring Set | Spring Torque | 3 bar | 4 bar | 5 bar | 6 bar | Piston Outward Stroke, ml/bar | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0° (Min) | 90° (Max) | 90° (Min) | 0° (Max) | 90° (Min) | 0° (Max) | 90° (Min) | 0° (Max) | 90° (Min) | 0° (Max) | |||
| AS80 | 201 | 13 | 23 | 29 | 39 | 46 | 56 | 63 | 73 | 80 | 90 |
450 |
| 211 | 19 | 34 | 18 | 33 | 35 | 50 | 52 | 67 | 69 | 84 | ||
| 121 | 23 | 40 | 12 | 29 | 29 | 46 | 46 | 63 | 63 | 80 | ||
| 112 | 23 | 43 | 9 | 29 | 26 | 46 | 43 | 63 | 60 | 80 | ||
| 212 | 26 | 47 | 5 | 26 | 22 | 43 | 39 | 60 | 56 | 77 | ||
| 222 | 36 | 61 | – | – | 8 | 33 | 25 | 50 | 42 | 67 | ||
TORQUE Nm(10Nm = 1 Kgm)
