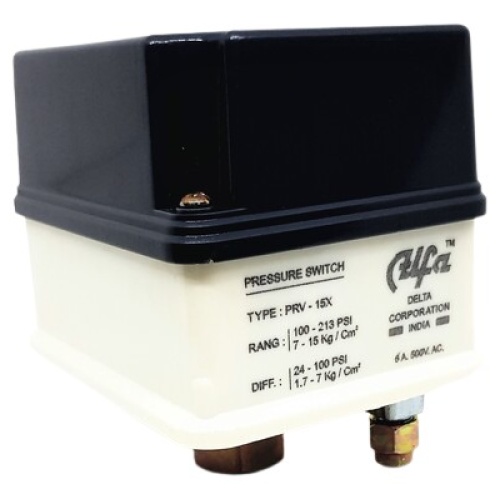

Alfa Pressure Switch 7-15 Bar PRV-15X, Auto Cut-Off Switch for Air & Water

1,064.001,330.00 Price Excluding GST - 901.69 (-20%)

In stock

Features

  • Item: Pressure Switch – Suited for Air Compressors
  • Application: For automatically starting & stopping motors of air compressor and Pressurized water plants
  • Operation: Smooth and Trouble free with exceptionally long life
  • Cut-out Pressure Range: 7-15 (Kg/Cm²) / 100-213 (PSI)
  • Minimum Differential: 1.7-2.3 (Kg/Cm²) / 24-33 (PSI)
  • Maximum Differential: 7 (Kg/Cm²) / 100 (PSI)

W3Schools

1,064.001,330.00 Price Excluding GST - 901.69 (-20%)

Description

Item Pressure Switch (Triple Pole)
Construction Bakelite contact block made of superior grid of phenol formaldehyde powder for very good electrical and mechanical properties
Suitability Ideally Suited for Air Compressors
Application To automatically start and stop motors of compressor & pressurized water
Operation Smooth and Trouble Free with exceptionally long life
Pressure range* A wide range of differential pressure setting available between starting and stopping pressures
Cut out Pressure Range 7 – 15 Kg/Cm²
Minimum Differential Range 1.7 – 2.3 Kg/Cm²
Maximum Differential 7 Kg/Cm²
Connection Size 1/2″ B.S.P.

*Refer the Technical Data Below

Dimensions

Technical Data

Model Cut out Pressure Range Minimum Differential Maximum Differential Temperature Connection Medium On/Off Knob Unloading Valve
PRV-15X 7-15 (Kg/Cm²) / 100-213 (PSI) 1.7-2.3 (Kg/Cm²) / 24-33 (PSI) 7 (Kg/Cm²) / 100 (PSI) 211 F / 100deg C 1/2″ B.S.P. Air & Water Yes Yes (1/4″ Flare)
