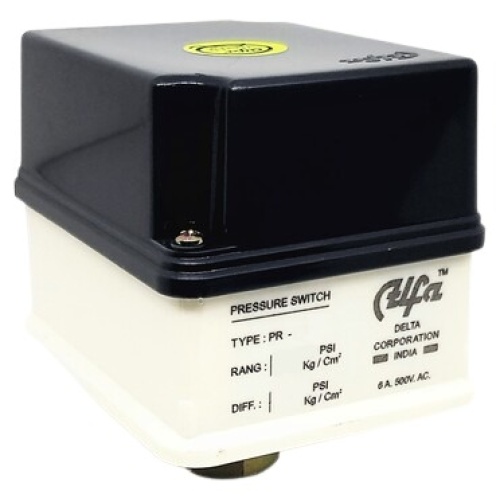

Alfa Pressure Switch 2.5-9.5 Bar PR-9, Auto Cut-Off Switch for Air & Water
₹732.00₹915.00 Price Excluding GST - ₹620.34 (-20%)
Features
- Item: Pressure Switch – Suited for Air Compressors
- Application: For automatically starting & stopping motors of air compressor and Pressurized water plants
- Operation: Smooth and Trouble free with exceptionally long life
- Cut-out Pressure Range: 2.5-9.5 (Kg/Cm²) / 35.5-135 (PSI)
- Minimum Differential: 1.2-1.8 (Kg/Cm²) / 17-26 (PSI)
- Maximum Differential: 7 (Kg/Cm²) / 100 (PSI)
Description
| Item | Pressure Switch (Triple Pole) |
|---|---|
| Construction | Bakelite contact block made of superior grid of phenol formaldehyde powder for very good electrical and mechanical properties |
| Suitability | Ideally Suited for Air Compressors |
| Application | To automatically start and stop motors of compressor & pressurized water |
| Operation | Smooth and Trouble Free with exceptionally long life |
| Pressure range* | A wide range of differential pressure setting available between starting and stopping pressures |
| Cut out pressure | 2.5 up to 9.5 Kg/Cm² |
| Minimum Differential | 1.2 up to 1.8 Kg/Cm² |
| Maximum Differential | 7 Kg/Cm² |
*Refer the Technical Data Below

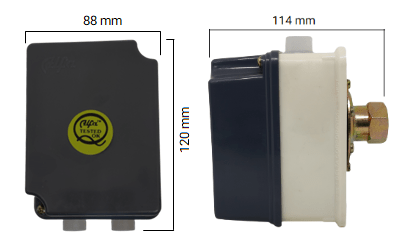

Dimensions
Technical Data
| Model | Cut out Pressure Range | Minimum Differential | Maximum Differential | Temperature | Connection | Medium | On/Off Knob | Unloading Valve |
|---|---|---|---|---|---|---|---|---|
| PR-9 | 2.5-9.5 (Kg/Cm²) / 35.5-135 (PSI) | 1.2-1.8 (Kg/Cm²) / 17-26 (PSI) | 7 (Kg/Cm²) / 100 (PSI) | 211 F / 100deg C | 1/2″ B.S.P. | Air & Water | No | No |
