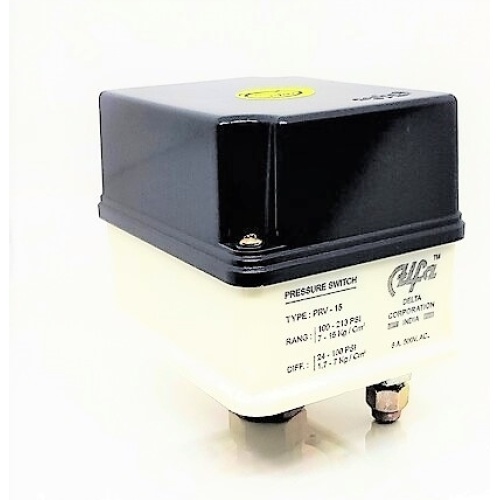

Alfa Pressure Switch 7-15 Bar PRV-15, Auto Cut-Off Switch for Air & Water
₹892.00₹1,115.00 Price Excluding GST - ₹755.93 (-20%)
Features
- Item: Pressure Switch – Suited for Air Compressors
- Application: For automatically starting & stopping motors of air compressor and Pressurized water plants
- Operation: Smooth and Trouble free with exceptionally long life
- Cut-out Pressure Range: 7-15 (Kg/Cm²) / 100-213 (PSI)
- Minimum Differential: 1.7-2.3 (Kg/Cm²) / 24-33 (PSI)
- Maximum Differential: 7 (Kg/Cm²) / 100 (PSI)
Description
| Item | Pressure Switch (Triple Pole) |
|---|---|
| Construction | Bakelite contact block made of superior grid of phenol formaldehyde powder for very good electrical and mechanical properties |
| Suitability | Ideally Suited for Air Compressors |
| Application | To automatically start and stop motors of compressor & pressurized water |
| Operation | Smooth and Trouble Free with exceptionally long life |
| Pressure range* | A wide range of differential pressure setting available between starting and stopping pressures |
| Cut out Pressure Range | 7 – 15 Kg/Cm² |
| Minimum Differential Range | 1.7 – 2.3 Kg/Cm² |
| Maximum Differential | 7 Kg/Cm² |
| Connection Size | 1/2″ B.S.P. |
*Refer the Technical Data Below
Dimensions
Technical Data
| Model | Cut out Pressure Range | Minimum Differential | Maximum Differential | Temperature | Connection | Medium | On/Off Knob | Unloading Valve |
|---|---|---|---|---|---|---|---|---|
| PRV-15 | 7-15 (Kg/Cm²) / 100-213 (PSI) | 1.7-2.3 (Kg/Cm²) / 24-33 (PSI) | 7 (Kg/Cm²) / 100 (PSI) | 211 F / 100deg C | 1/2″ B.S.P. | Air & Water | No | Yes (1/4″ Flare) |
