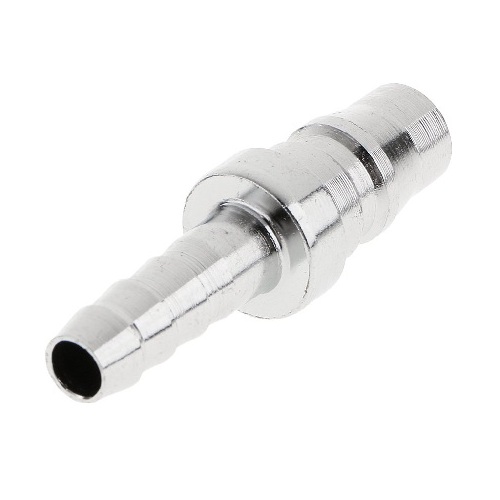

Aeroflex Pneumatic Quick Coupler 3/8 Inch Hose Plug PH30

69.0092.00 Price Excluding GST - 58.47 (-25%)

In stock

Features:

  • Size : 3/8″ (10mm)
  • Type : Plug / Adaptor (with Hose Barb)
  • Interchangeability : It can be coupled with all sizes and varieties of Sockets/Couplers
  • Body Material : Steel
  • Pressure Range : Upto 10 kg/cm2 (bar)
  • Purpose : General purpose Pneumatic application
  • For Other Plug / Adaptor (Hose) : 1/4″, 1/2″

  • Minimum quantity required for this product: 5
SKU: AFPLPH30H10 Categories: ,

69.0092.00 Price Excluding GST - 58.47 (-25%)

Bulk Pricing

Quantity Price
1 - 5 69.00
6 - 10 68.00
11 - 25 66.00
26 - 50 63.00
51+ 59.00

Description

Port Refer technical data sheet (Available in Hose Shank)
End Connection Hose Shank
Body Material Steel
Media Air, Water, Chemical, Gas
Finish Chrome Plated
Other Specification Data Available on Request

Dimensions

Model No. D L H
PH30
11
53
10

Technical Data

Model  No.  MoC  Coupler Type   Size
PH30 Steel (Chrome Plated) Plug 3/8″ (10mm)

* NoteWorking Pressure varies with size and media

Specification

Additional information

Weight 0.05 kg
Dimensions 6 × 2 × 2 cm
