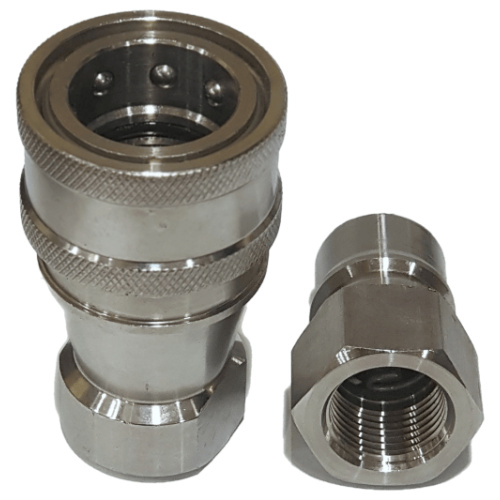

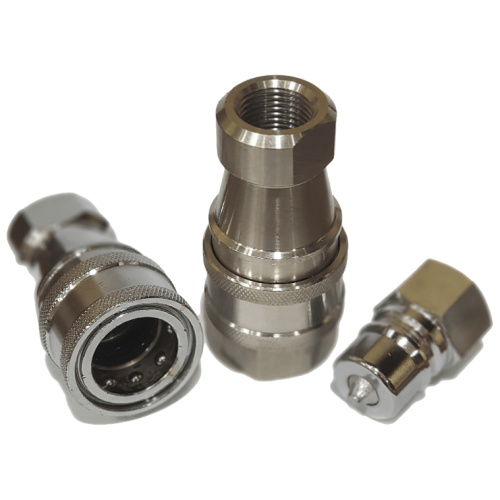

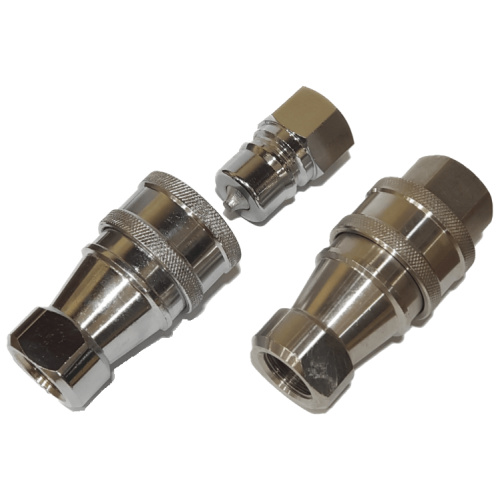

Quick Release Coupling Double Check Valve – Double Shut Off Valve Hydraulic QRC – SS Body Quick Coupler – Size 2″
₹8,753.00₹11,670.00 Price Excluding GST - ₹7,417.80 (-25%)
Features
- Size: 2″ BSP
- Locking System: Ball Bearing with manual sleeve
- Valve: Poppet Type Shut-Off system (Double Check Valve)
- Surface Treatment: SS finish provides excellent resistance to corrosion in most conditions
- Engagement: Smooth connection and release of plug and socket makes it convenient to use
- Working: Flow expedites automatically when coupled
- Body & Ball: Mild Steel (MS) Chromed
- Seal Material: Nitrile (Double Seal for strong gripping in pressure)
Description
| Port | Refer technical data sheet (Available in BSP threading) |
|---|---|
| End Connection | Screwed (Female Threaded) |
| Body Material | Stainless Steel surface treated chromium plated |
| Spring | Spring steel as per IS Standard |
| Balls | MS Chromed |
| Seal | NBR (Nitrile Rubber) |
| Media Temperature | – 25 deg C to + 100 deg C |
| Construction | Quick Coupling with double check valve (one at coupler end & other at adaptor end) |
| Advantages | Fast, Leak proof instant connections, without tools, without threading or twisting, without strains, without sweat. Hence time saving |
Technical Data
| Model No. | Nominal Size (mm) | Nominal Size (Inch) | Max. Working Pressure (PSI) |
|---|---|---|---|
| SSDC-200 | 50 | 2″ | 1500 |
QRC – MS/SS DC-200
| Model No | Thread Size | HA | LA | RS | LS | LC |
|---|---|---|---|---|---|---|
|
MSDC-200 / SSDC-200
|
2” BSP
|
67
|
83
|
85
|
112
|
145
|
