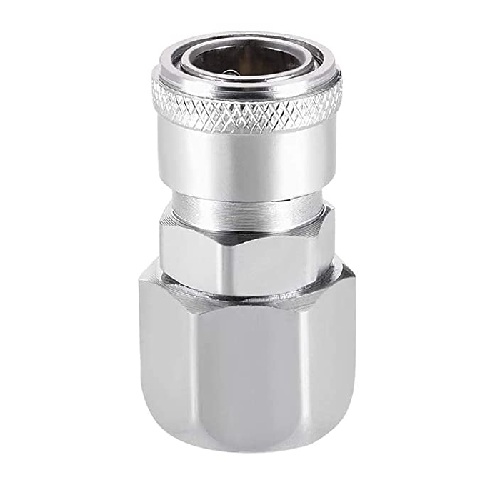

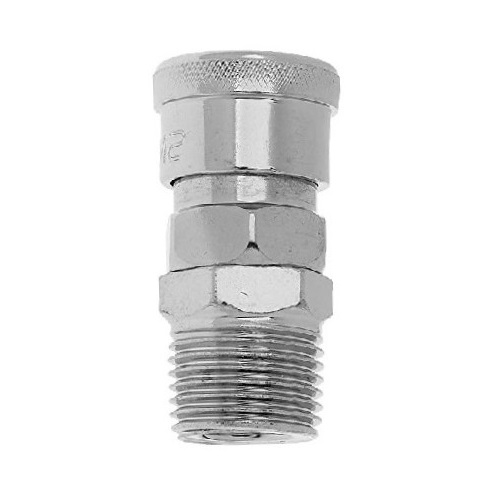

Hydraulic Quick Release Coupling – Hydraulic QRC – ISO 7241-A Coupler – Hydraulic Quick Coupler – Size 3/4″

938.001,250.00 Price Excluding GST - 794.92 (-25%)

In stock

Features

  • Latching System: Ball Bearing with manual sleeve
  • Valve: Poppet Type Shut-Off system
  • Surface Treatment: Cadmium plated, provides excellent resistance to corrosion in most conditions
  • Engagement: Smooth connection and release of plug and socket makes it convenient to use
  • Working: Flow expedites automatically when coupled
  • Standard: Confirms to ISO 7241-A
  • Interchangeability: Yes

W3Schools

938.001,250.00 Price Excluding GST - 794.92 (-25%)

Bulk Pricing

Quantity Price
1 - 2 938.00
3 - 8 915.00
9 - 14 891.00
15 - 20 868.00
21+ 844.00

Description

Port Refer technical data sheet (Available in BSP threading)
End Connection Screwed (Female Threaded)
Body Material High grade carbon steel surface treated cadmium plated
Spring Spring steel as per IS Standard
Balls As per AISI/ASTM Standard
Seal NBR (Nitrile Rubber)
Back-Up Ring PTFE
Media Temperature – 25 deg C to + 100 deg C

Dimensions

Model Nominal Size (mm) Nominal Size (Inch) L L1 L2 H H1 D D1 T (BSP) T1 (BSP)
H001-1/4
6.3
1/4"
36
50
72
19
19
12
26
1/4"
1/4"
H001-3/4
10
3/8"
38
56
77
22
22
17
31
3/8"
3/8"
H001-1/2
12.5
1/2"
44
66
88
27
27
20
38
1/2"
1/2"
H001-3/4
20
3/4"
54
81
108
34
34
29
46
3/4"
3/4"
H001-1
25
1"
62
94
122
41
41
34
55
1"
1"

Technical Data

Model No. Nominal Size (mm) Nominal Size (Inch) Max. Working Pressure (PSI) Max Flow (LPM / GPM) Fluid Spillage (CC)
H001-3/4 20 3/4″ 3000 106/28 9.3
