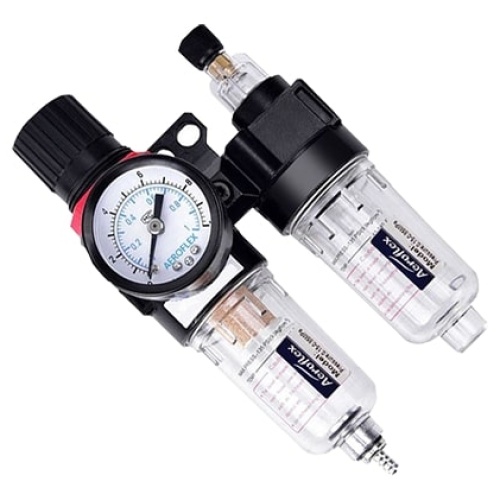

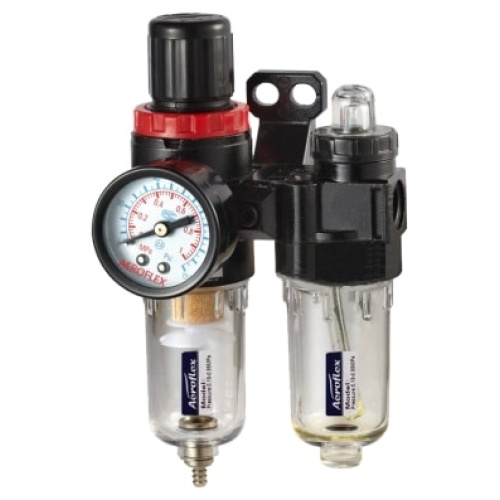

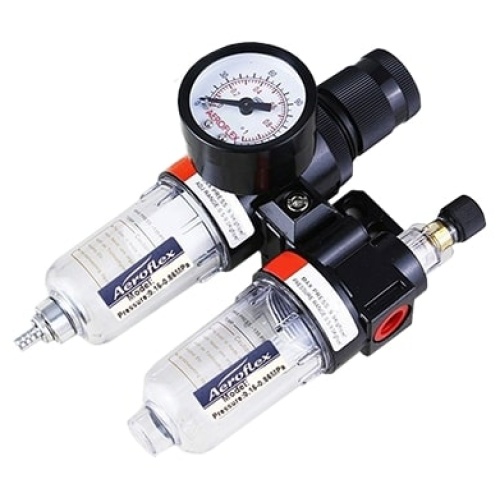

Aeroflex 1/4 Inch Pneumatic FRL Unit FC2000 – Air Filter Regulator and Lubricator Unit
₹775.00₹1,033.00 Price Excluding GST - ₹656.78 (-25%)
Features
- Function: Modular Filter Regulator & Lubricator Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Max. Operating Pressure: 10 Bar
- Working Pressure: 0.5 to 8.5 Bar
- Regulator Construction: Relieving Type
- Recommended Lubricant : Class 1 Turbine Oil (ISO VG32)
Description
| Function | Modular Filter Regulator & Lubricator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Seal | Brass, NBR |
| Filter Element | Bronze |
| Bowl Assembly | Polycarbonate With Bowl Guard |
| Media | Air |
| Max. Operating Pressure | 10 Bar |
| Working Pressure | 0.5 to 8.5 Bar |
| Regulator Construction | Relieving Type |
| Recommended Lubricant | Class 1 Turbine Oil (ISO VG32) |

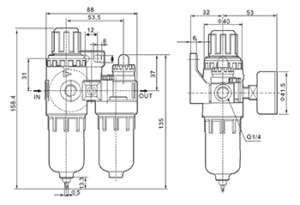

Dimension
Technical Data
| Model | Port Size | Gauge Port | Fluid | Temperature | Filtration Rating | Working Pr. Range | Capacity Filter / Oil Cup |
|---|---|---|---|---|---|---|---|
| FC2000 | 1/4″ BSP | 1/8″ | Air | 5° to 60°C | 40 µm | 0.5 to 8.5 Bar | 15ml / 25ml |
