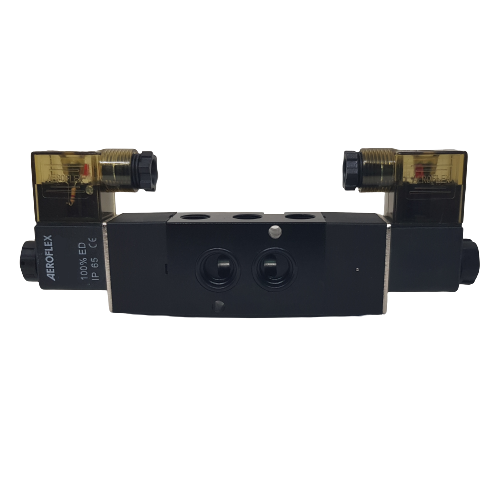

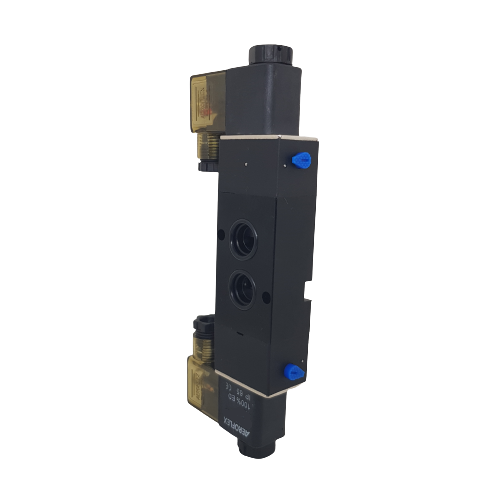

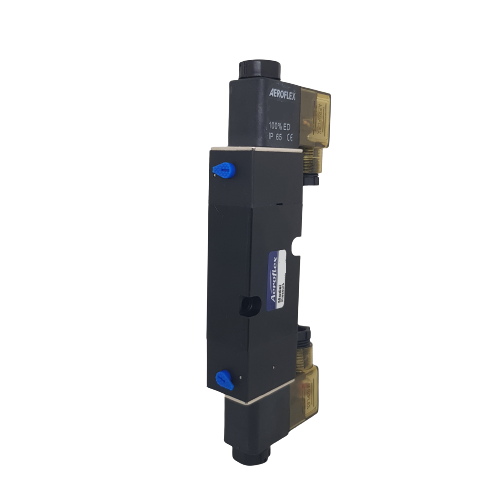

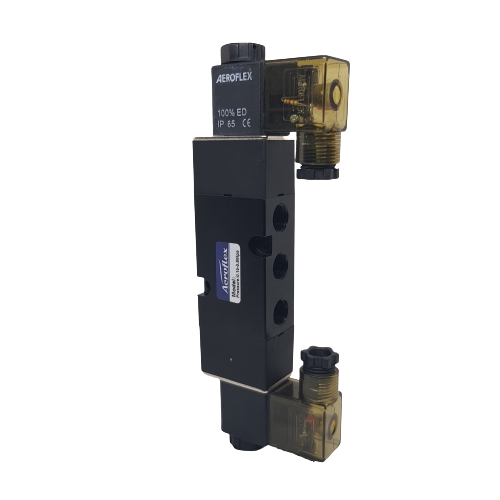

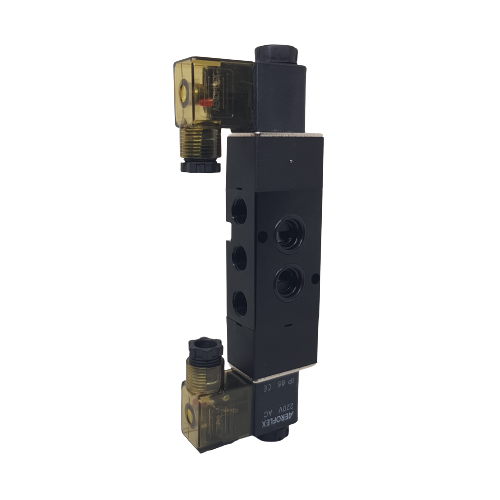

Aeroflex 1/4 Inch 5/2 Way 230V AC Namur Type Double Solenoid Valve with Spring Return – DV4-308N Pneumatic Namur Solenoid Valve 1/4″ x 5/2 in 230V AC

1,373.001,830.00 Price Excluding GST - 1,163.56 (-25%)

In stock

Features

  • Item Name: Namur Solenoid Valve
  • Design: Compact Body Spool Operated (Inner Guide Motion)
  • Type: 5 Port 2 Position (5/2 Way)
  • Coil Actuation: Double Solenoid Coil Actuation
  • End Connection: Screwed Ends
  • Body Material: Aluminium Alloy
  • Working Pressure: 0.15 to 0.8 MPa
  • Proof Pressure: 1.2 MPa

W3Schools

Bulk Pricing

Quantity Price
1 - 2 1,373.00
3 - 8 1,339.00
9 - 14 1,304.00
15 - 20 1,270.00
21+ 1,236.00
SKU: AFPL-DV4308N-230A Categories: , ,

Description

Function Namur Solenoid Valve
Design Compact Body Spool Operated (Inner Guide Motion)

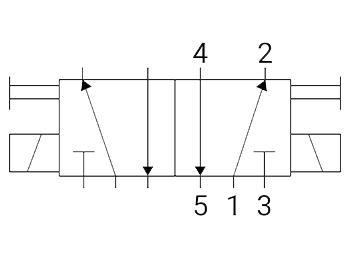

Type 5 Port 2 Position (5/2 Way)
Coil Actuation Double Solenoid Coil
End Connection Screwed Ends
Port Size Available in 1/4″ (Refer Technical Data)
Voltage All Standard Voltages available (230v AC, 24v DC, 110v AC, 12v DC, 24v AC)
Media Filtered Air
Working Pressure 0.15 to 0.8 MPa
Proof Pressure 1.2 MPa
Body Material Aluminium Alloy
Seal NBR
Temperature 5°C TO 50°C

Technical Data

Model in & Exhaust Port Size Out Port Fluid Actuation Temperature Effective Section Area mm² Cv Value Frequency Shortest Excitation Time
DV4-308N 1/4″ BSP Namur Air Double Coil 5° to 50°C 25 1.39 Max.5 Cycles / Second 0.05s

Dimensions
