Aeroflex 3/8 Inch 5/2 Way 24V AC Double Solenoid Valve with Spring Return – DV4-10 Pneumatic Solenoid Valve 3/8″ x 5/2 in 24V AC

1,324.001,765.00 Price Excluding GST - 1,122.03 (-25%)

In stock

Features

  • Item Name: Solenoid Valve
  • Design: Compact Body Spool Operated (Inner Guide Motion)
  • Type: 5 Port 2 Position (5/2 Way)
  • Coil Actuation: Double Solenoid Coil Actuation
  • End Connection: Screwed Ends
  • Body Material: Aluminium Alloy
  • Working Pressure: 0.15 to 0.8 MPa
  • Proof Pressure: 1.2 MPa

W3Schools

Bulk Pricing

Quantity Price
1 - 2 1,324.00
3 - 8 1,291.00
9 - 14 1,258.00
15 - 20 1,225.00
21+ 1,192.00

Description

Function Solenoid Valve
Design Compact Body Spool Operated (Inner Guide Motion)
Type 5 Port 2 Position (5/2 Way)
Coil Actuation Double Solenoid Coil
End Connection Screwed Ends
Port Size Available in 1/8”, 1/4″, 3/8” & 1/2″ (Refer Technical Data)
Voltage All Standard Voltages available (230v AC, 24v DC, 110v AC, 12v DC, 24v AC)
Media Filtered Air
Working Pressure 0.15 to 0.8 MPa
Proof Pressure 1.2 MPa
Body Material Aluminium Alloy
Seal NBR
Temperature 5°C TO 50°C

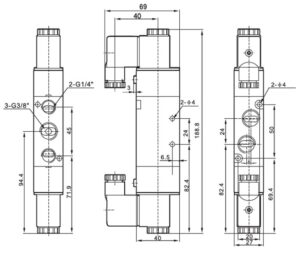

Dimensions

Technical Data

Model in-Out Port Size Exhaust Port Fluid Temperature Effective Section Area mm² Cv Value Frequency Shortest Excitation Time
DV4-10 3/8″ BSP 1/4″ BSP Air 5° to 50°C 30 1.68 Max.5 Cycles / Second 0.05s
