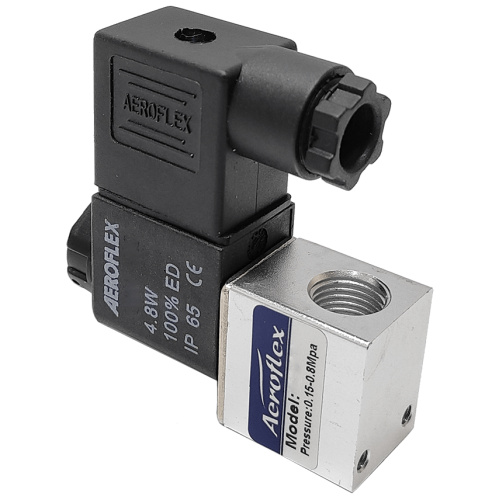

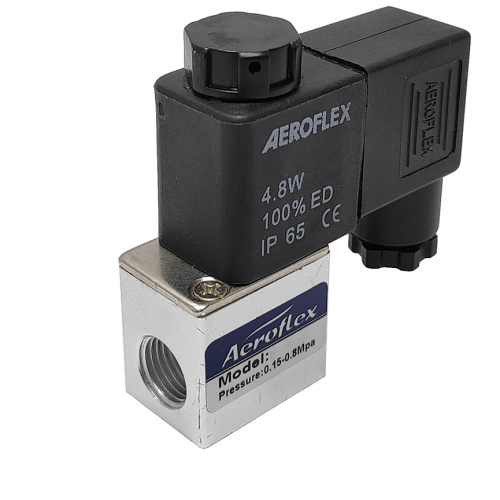

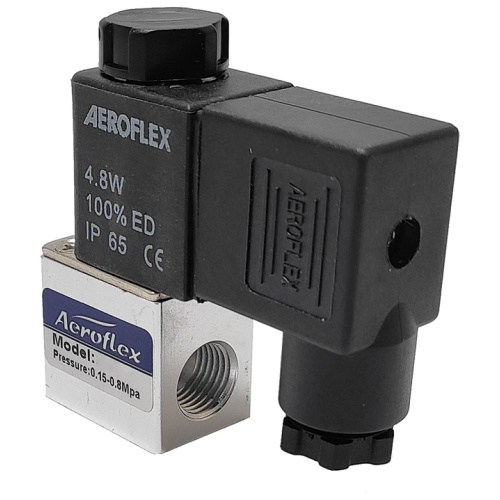

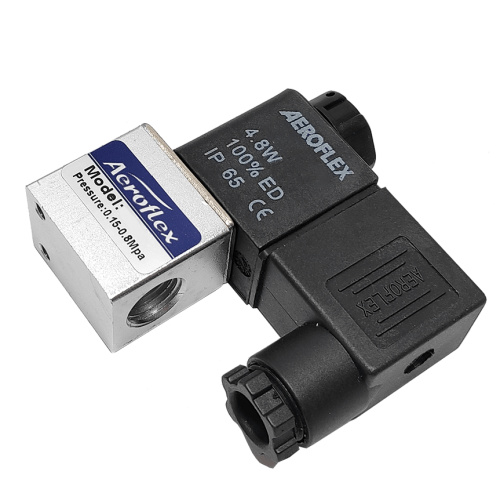

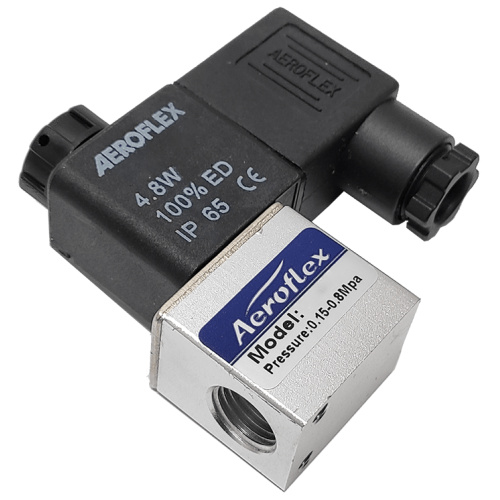

Aeroflex 1/4 Inch 2/2 Way 110V AC Single Solenoid Valve with Spring Return – V2-08 Pneumatic Solenoid Valve 1/4″ x 2/2 in 110V AC
₹488.00₹650.00 Price Excluding GST - ₹413.56 (-25%)
Features
- Item Name: Solenoid Valve with Spring Return
- Design: Compact Body Spool Operated (Direct Drive Motion)
- Type: 2 Port 2 Position (2/2 Way)
- Coil Actuation: Single Solenoid Coil Actuation
- End Connection: Screwed Ends
- Body Material: Aluminium Alloy
- Working Pressure: 0.15 to 0.8 MPa
- Proof Pressure: 1.2 MPa
Description
| Function | Solenoid Valve with Spring Return |
|---|---|
| Design | Compact Body Spool Operated (Direct Drive Motion) |
| Type | 2 Port 2 Position (2/2 Way) |
| Coil Actuation | Single Solenoid Coil |
| End Connection | Screwed Ends |
| Port Size | Available in 1/4″ (Refer Technical Data) |
| Voltage | All Standard Voltages available (230v AC, 24v DC, 110v AC, 12v DC, 24v AC) |
| Media | Filtered Air |
| Working Pressure | 0.15 to 0.8 MPa |
| Proof Pressure | 1.2 MPa |
| Body Material | Aluminium Alloy |
| Seal | NBR |
| Temperature | 5°C TO 50°C |

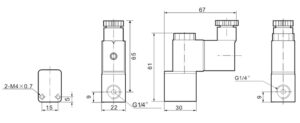

Dimension
Technical Data
| Model | In Port Size | Out Port Size | Fluid | Temperature | Seal | Working Pressure | Frequency | Shortest Excitation Time |
|---|---|---|---|---|---|---|---|---|
| V2-08 | 1/4″ BSP | 1/4″ BSP | Air | 5° to 50°C | NBR | 0.15 to 0.8 MPa | Max.10 Cycles / Second | 0.05s |
