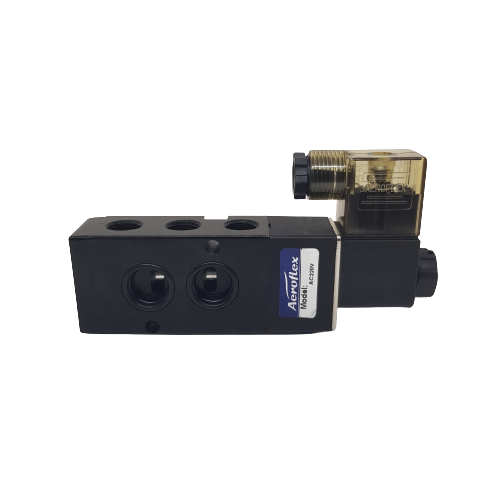

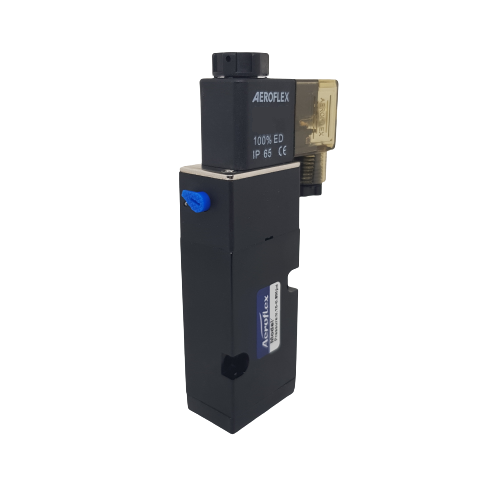

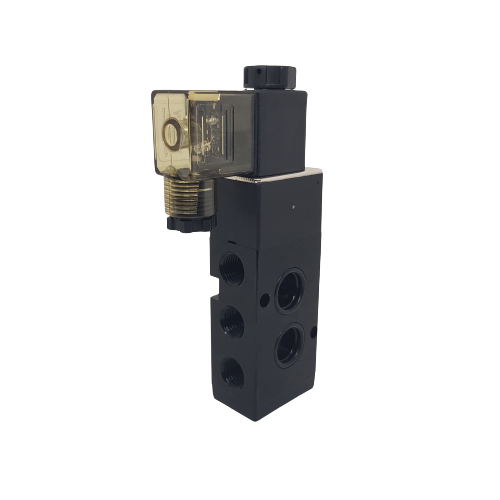

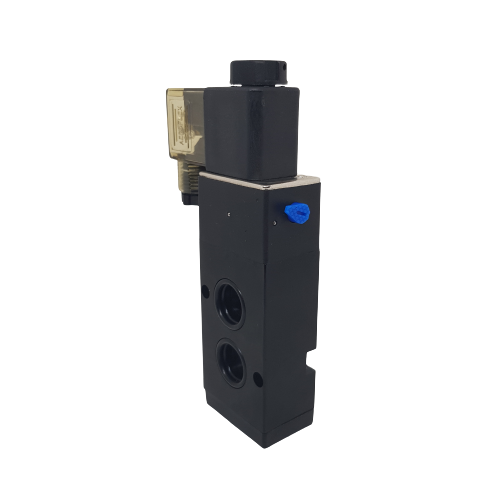

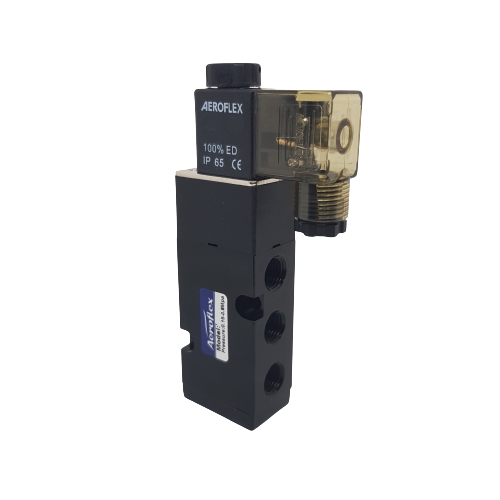

Aeroflex 1/4 Inch 5/2 Way 12V DC Namur Type Single Solenoid Valve with Spring Return – V4-308N Pneumatic Namur Solenoid Valve 1/4″ x 5/2 in 12V DC

915.001,220.00 Price Excluding GST - 775.42 (-25%)

In stock

Features

  • Item Name: Namur Solenoid Valve with Spring Return
  • Design: Compact Body Spool Operated (Inner Guide Motion)
  • Type: 5 Port 2 Position (5/2 Way)
  • Coil Actuation: Single Solenoid Coil Actuation
  • End Connection: Screwed Ends
  • Body Material: Aluminium Alloy
  • Working Pressure: 0.15 to 0.8 MPa
  • Proof Pressure: 1.2 MPa

W3Schools

SKU: AFPL-V4308N-12D Categories: , ,

915.001,220.00 Price Excluding GST - 775.42 (-25%)

Bulk Pricing

Quantity Price
1 - 2 915.00
3 - 8 893.00
9 - 14 870.00
15 - 20 847.00
21+ 824.00

Description

Function Namur Solenoid Valve with Spring Return
Design Compact Body Spool Operated (Inner Guide Motion)
Type 5 Port 2 Position (5/2 Way)
Coil Actuation Single Solenoid Coil
End Connection Screwed Ends
Port Size Available in 1/4″ (Refer Technical Data)
Voltage All Standard Voltages available (230v AC, 24v DC, 110v AC, 12v DC, 24v AC)
Media Filtered Air
Working Pressure 0.15 to 0.8 MPa
Proof Pressure 1.2 MPa
Body Material Aluminium Alloy
Seal NBR
Temperature 5°C TO 50°C

Technical Data

Model In & Exhaust Port Size Out Port Fluid Actuation Temperature Effective Section Area mm² Cv Value Frequency Shortest Excitation Time
V4-308N 1/4″ BSP Namur Air Single Coil 5° to 50°C 25 1.39 Max.5 Cycles / Second 0.05s

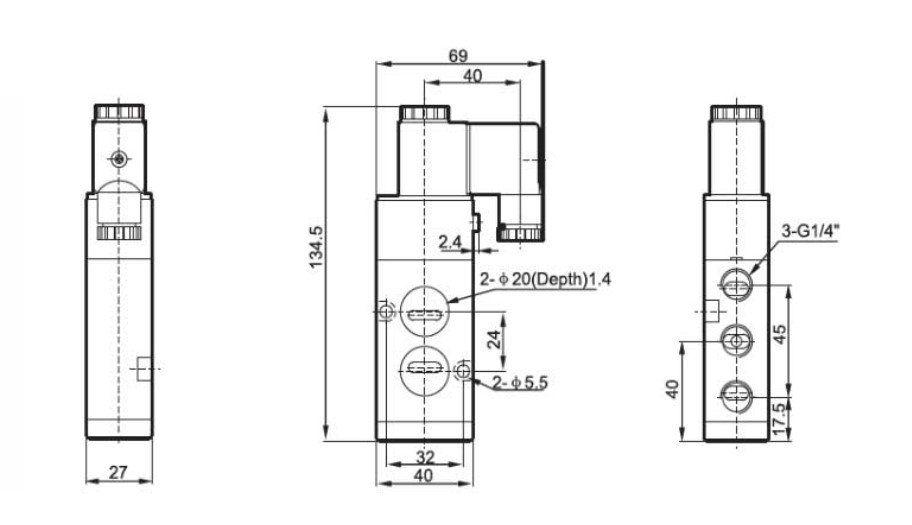

Dimensions
