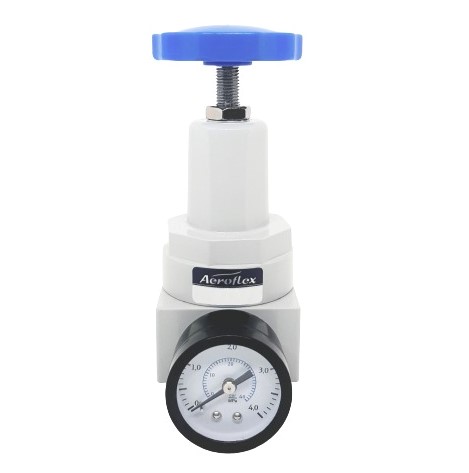

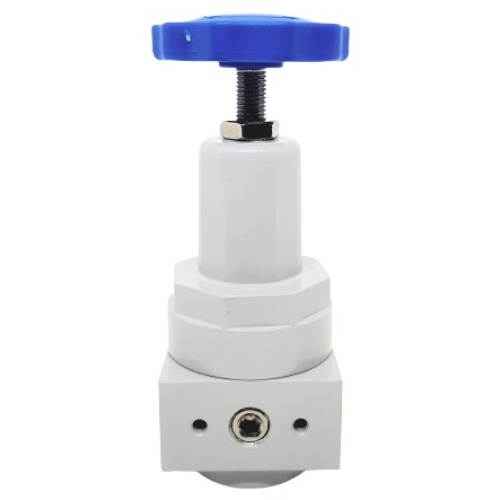

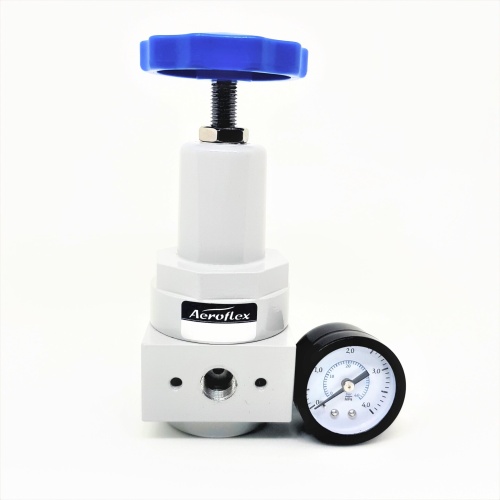

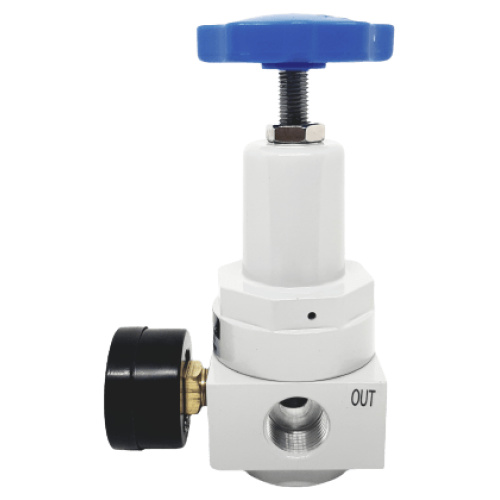

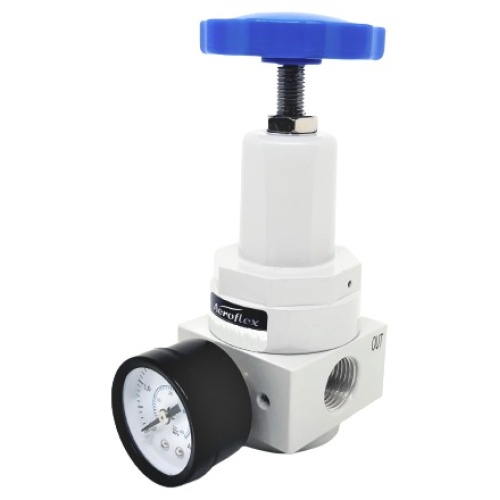

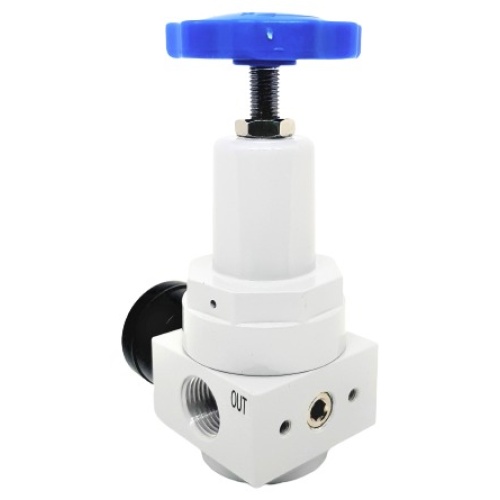

Aeroflex 1/2Inch High Pressure Air Regulator with Gauge QTYH-15 – Pneumatic High Pressure Regulator Unit
₹1,726.00₹2,301.00 Price Excluding GST - ₹1,462.71 (-25%)
Features
- Function: High Pressure Air Regulator Unit
- Pressure Gauge : Included
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Media: Compressed Air
- Working Pressure: 0.5 to 35 Bar
- Proof Pressure: 40 Bar
Description
| Function | High Pressure Air Regulator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Media | Compressed Air |
| Proof Pressure | up to 40 Bar |
| Regulator Construction | Needle Type |

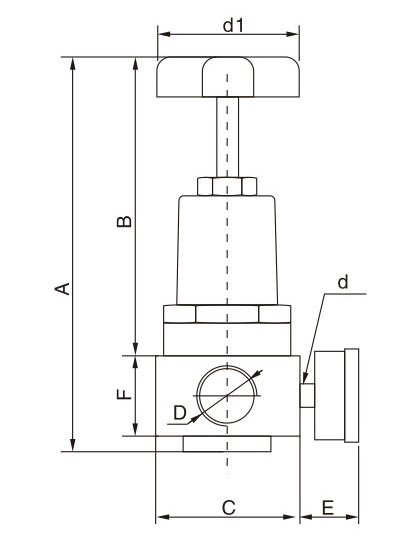

Dimensions
| Port | A | B | C | D | E | F | d | d1 |
|---|---|---|---|---|---|---|---|---|
|
1/2"
|
145
|
105
|
55
|
1/2"
|
33
|
30
|
1/4"
|
59
|
Technical Data
| Model | Body Size | Port Size | Gauge Port | Fluid | Temperature | Working Pressure Range | Proof Pressure |
|---|---|---|---|---|---|---|---|
| QTYH-15 | 15 | 1/2″ BSP | 1/4″ | Air | 5 to 60deg C | 0.5 to 35 Bar | 40 Bar |
Condition: Under Standard Pressure
