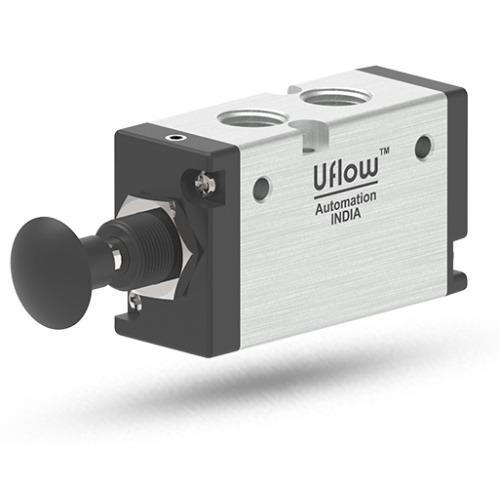

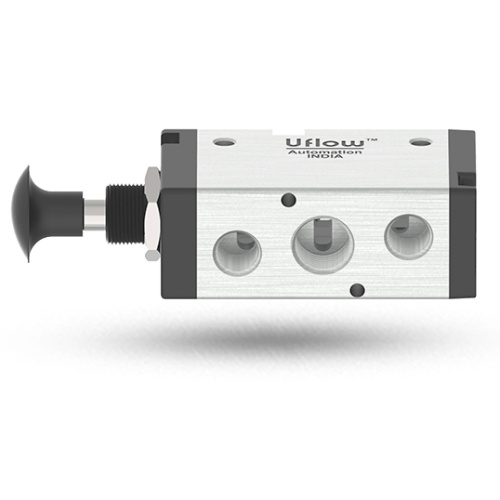

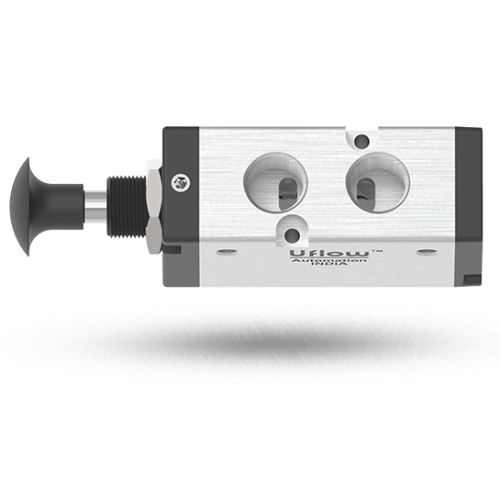

Uflow 1/4 Inch 5/2 Way Push Pull Valve – 1/4 Inch 5 port 2 position Spool Type Detent Pneumatic Push Pull Valve – PFA1D

1,160.001,450.00 Price Excluding GST - 983.05 (-20%)

In stock

Features:

  • Port Size : 1/4″BSP
  • Valve Type : 5 Port 2 Position Spool Type with Manual Return (Detent)
  • Rotation : Head can rotate 180 Deg
  • MoC : Aluminium, Nitrile, Brass, Polymer
  • Mounting : Can be mounted in any positon
  • Design : Cartridge Type design for long life
  • Working Pressure Range : 0 to 10 kg/cm2 (bar)
  • Response : 2 lacs Cycle tested
  • Applications : Compressed Air
  • Other Specification / Data : Check the tabs given below for details

W3Schools

1,160.001,450.00 Price Excluding GST - 983.05 (-20%)

Bulk Pricing

Quantity Price
1 - 2 1,160.00
3 - 5 1,126.00
6 - 8 1,091.00
9 - 14 1,044.00
15+ 1,010.00

Description

Valve Type Push Pull Valve Manual Return (Detent)
Valve Operation Manual / Mechanical / Hand Operated
Port In & Out : 1/4″ BSP / Exhaust : 1/8″ BSP
Design Spool with Catridge Type Compact Design
Position 2 position
Body Material Aluminium
Media Pressure 0 – 10 Bar
Ambient Temp. 5° C to 60° C
Media Compressed Air
Recommendation Use of Filter in the inlet port

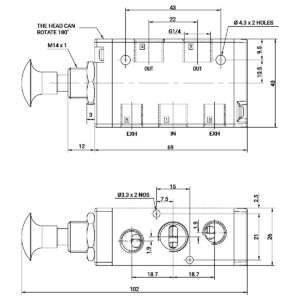

Dimension

Technical Data

Model  No.  Body  Material   Port Size (Inch) Working Pressure Kg/cm² Flow (lpm)
PFA1D ALUMINIUM 1/4″ 0 – 10 Bar 1200
