Uflow 1/4 Inch 5/2 Way Hand Lever Valve – 1/4 Inch 5 port 2 position Spool Type with Spring Return Pneumatic Hand Lever Valve – LFA1
₹1,040.00₹1,300.00 Price Excluding GST - ₹881.36 (-20%)
Features:
- Port Size : 1/4″BSP

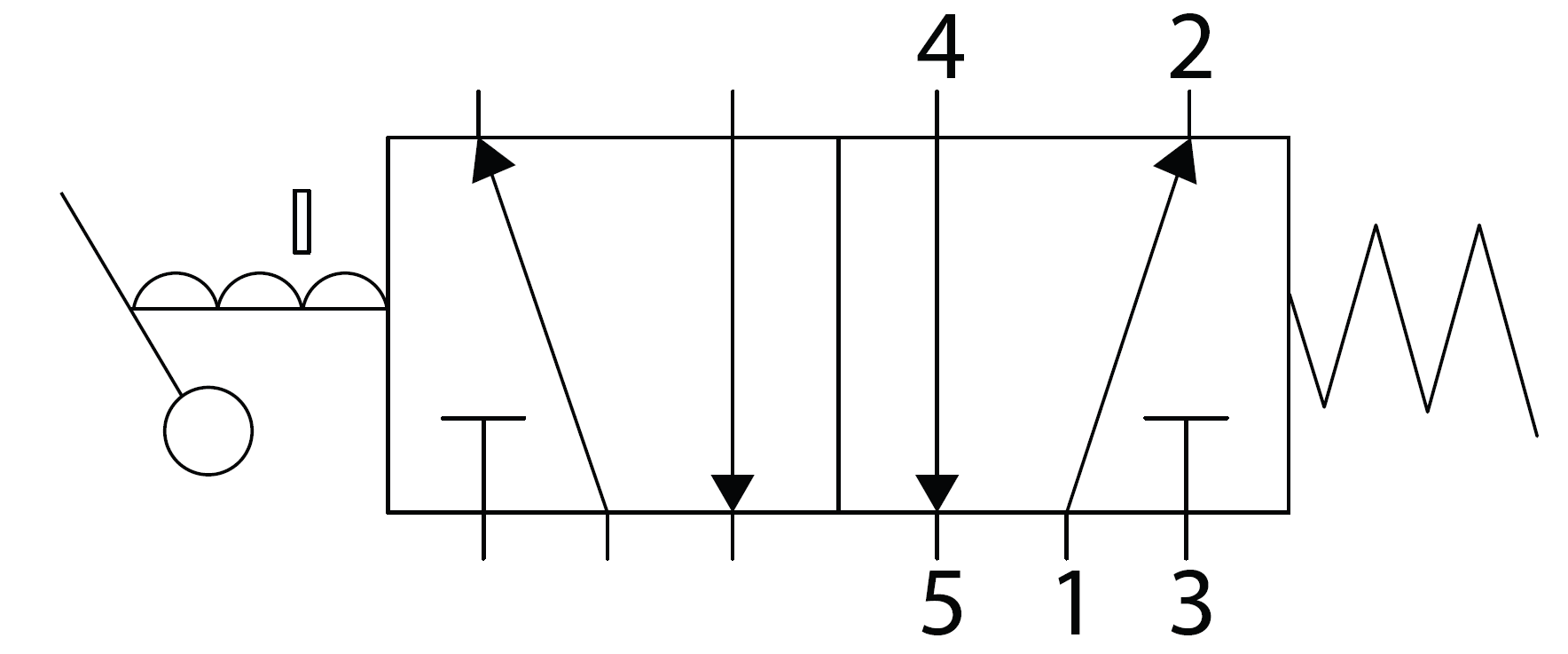

- Valve Type : 5 Port 2 Position Spool Type with Spring Return
- Rotation : Head can rotate 180 Deg
- MoC : Aluminium, Nitrile, Brass, Polymer
- MO : Available with Manual Override
- Design : Cartridge Type design for long life
- Working Pressure Range : 0 to 10 kg/cm2 (bar)
- Response : 2 lacs Cycle tested
- Applications : Compressed Air
- Other Specification / Data : Check the tabs given below for details
Description
| Valve Type | Hand Lever Valve with Spring Return |
|---|---|
| Valve Operation | Manual / Mechanical / Hand Operated |
| Port | In & Out : 1/4″ BSP / Exhaust : 1/8″ BSP |
| Design | Spool with Catridge Type Compact Design |
| Position | 2 position |
| Body Material | Aluminium |
| Media Pressure | 0 – 10 Bar |
| Ambient Temp. | 5° C to 60° C |
| Media | Compressed Air |
| Recommendation | Use of Filter in the inlet port |
Dimension
Technical Data
| Model No. | Body Material | Port Size (Inch) | Working Pressure Kg/cm² | Flow (lpm) |
|---|---|---|---|---|
| LFA1 | ALUMINIUM | 1/4″ | 0 – 10 Bar | 1200 |
