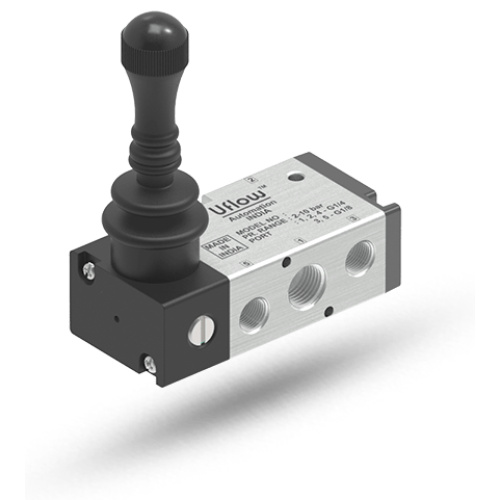

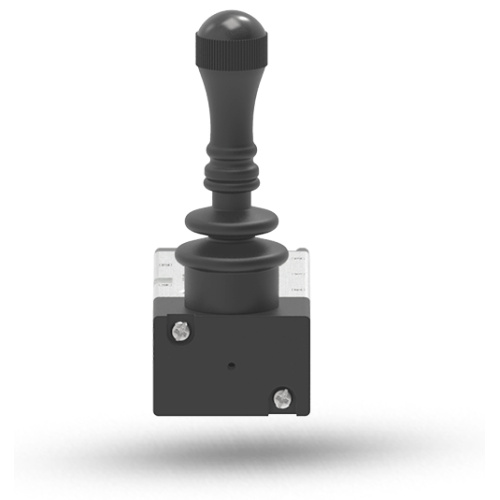

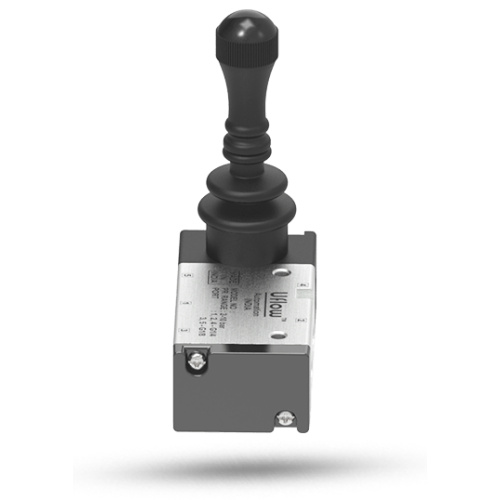

Uflow 1/4 Inch 5/2 Way Hand Lever Valve – 1/4 Inch 5 port 2 position Spool Type Detent Pneumatic Hand Lever Valve – LFA1D

1,020.001,275.00 Price Excluding GST - 864.41 (-20%)

In stock

Features:

  • Port Size : 1/4″BSP

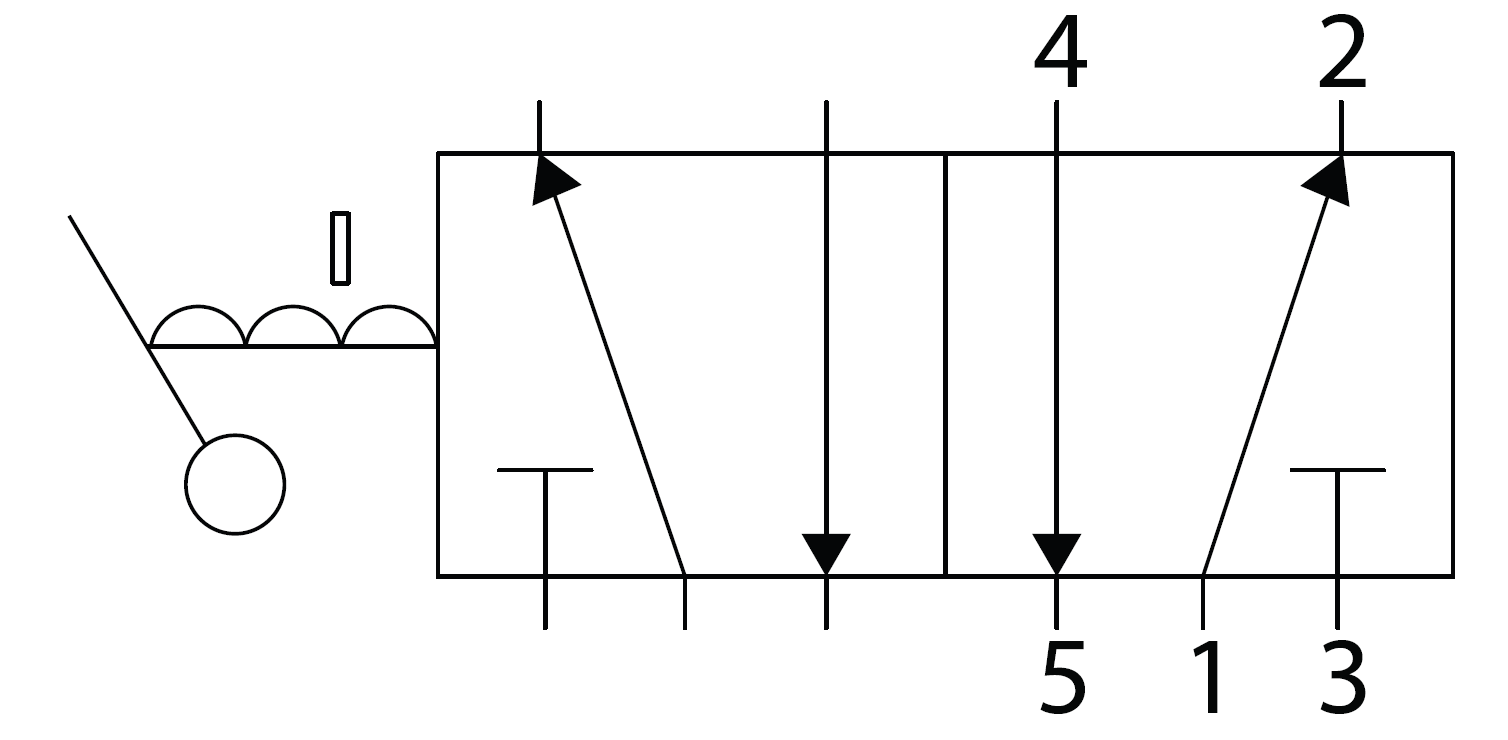

  • Valve Type : 5 Port 2 Position Spool Type with Manual Return (Detent)
  • Rotation : Head can rotate 180 Deg
  • MoC : Aluminium, Nitrile, Brass, Polymer
  • MO : Available with Manual Override
  • Design : Cartridge Type design for long life
  • Working Pressure Range : 0 to 10 kg/cm2 (bar)
  • Response : 2 lacs Cycle tested
  • Applications : Compressed Air
  • Other Specification / Data : Check the tabs given below for details

W3Schools

1,020.001,275.00 Price Excluding GST - 864.41 (-20%)

Bulk Pricing

Quantity Price
1 - 2 1,020.00
3 - 5 990.00
6 - 8 959.00
9 - 14 918.00
15+ 888.00

Description

Valve Type Hand Lever Valve Manual Return (Detent)
Valve Operation Manual / Mechanical / Hand Operated
Port In & Out : 1/4″ BSP / Exhaust : 1/8″ BSP
Design Spool with Catridge Type Compact Design
Position 2 position
Body Material Aluminium
Media Pressure 0 – 10 Bar
Ambient Temp. 5° C to 60° C
Media Compressed Air
Recommendation Use of Filter in the inlet port

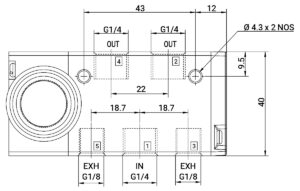

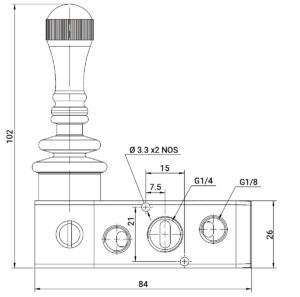

Dimension

Technical Data

Model  No.  Body  Material   Port Size (Inch) Working Pressure Kg/cm² Flow (lpm)
LFA1D ALUMINIUM 1/4″ 0 – 10 Bar 1200
