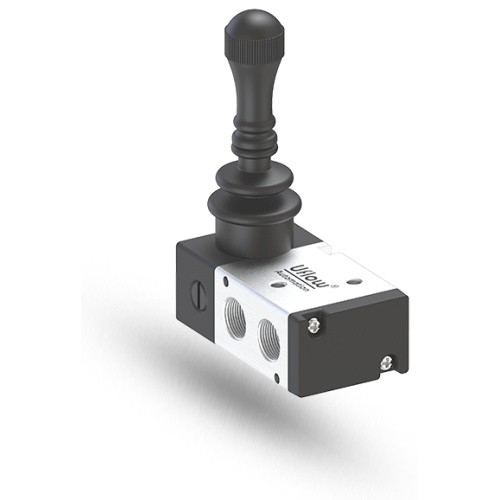

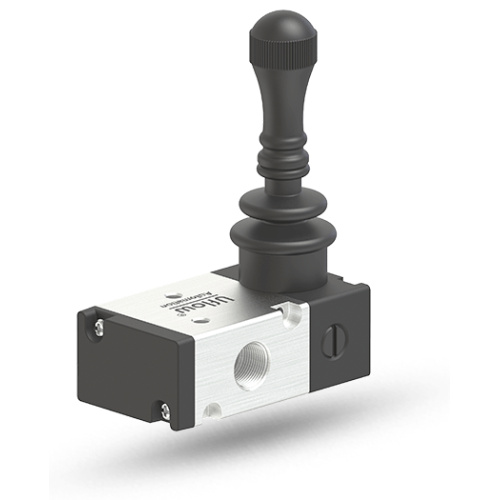

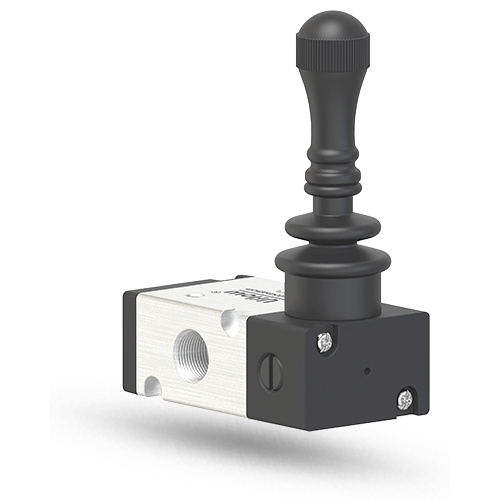

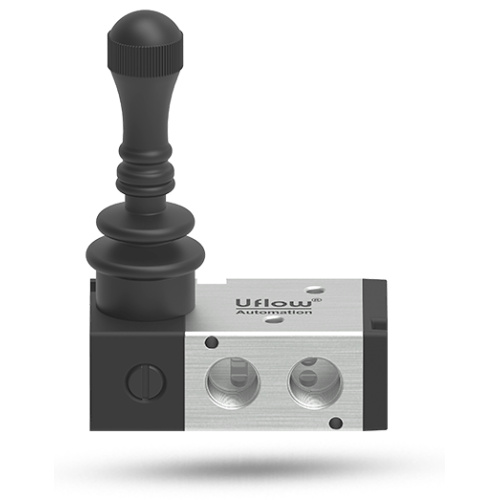

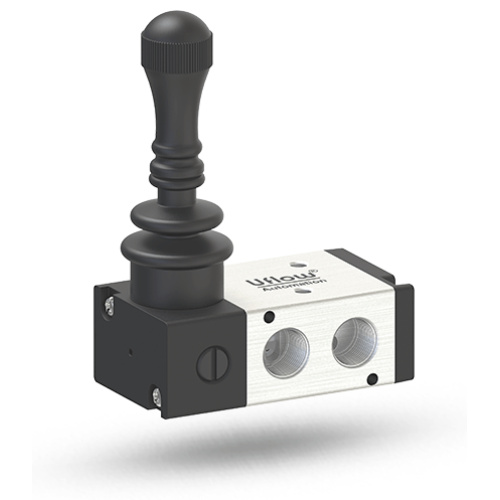

Uflow 1/4 Inch 3/2 Way Hand Lever Valve – 1/4 Inch 3 port 2 position Spool Type Detent Pneumatic Hand Lever Valve – LTA1D

975.001,219.00 Price Excluding GST - 826.27 (-20%)

In stock

Features:

  • Port Size : 1/4″BSP
  • Valve Type : 3 Port 2 Position Spool Type with Manual Return (Detent)
  • Rotation : Head can rotate 180 Deg
  • MoC : Aluminium, Nitrile, Brass, Polymer
  • MO : Available with Manual Override
  • Design : Cartridge Type design for long life
  • Working Pressure Range : 0 to 10 kg/cm2 (bar)
  • Response : 2 lacs Cycle tested
  • Applications : Compressed Air
  • Other Specification / Data : Check the tabs given below for details

W3Schools

975.001,219.00 Price Excluding GST - 826.27 (-20%)

Bulk Pricing

Quantity Price
1 - 2 975.00
3 - 5 946.00
6 - 8 917.00
9 - 14 878.00
15+ 849.00

Description

Valve Type Hand Lever Valve Manual Return (Detent)
Valve Operation Manual / Mechanical / Hand Operated
Port In / Out / Exhaust : 1/4″ BSP
Design Spool with Catridge Type Compact Design
Position 2 position
Body Material Aluminium
Media Pressure 0 – 10 Bar
Ambient Temp. 5° C to 60° C
Media Compressed Air
Recommendation Use of Filter in the inlet port

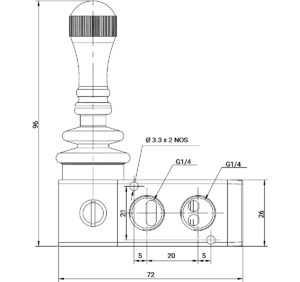

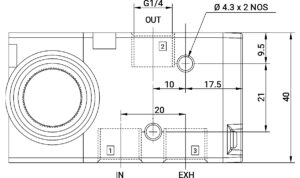

Dimension

Technical Data

Model  No.  Body  Material   Port Size (Inch) Working Pressure Kg/cm² Flow (lpm)
LTA1D ALUMINIUM 1/4″ 0 – 10 Bar 1200
