Uflow 1/4 Inch 3/2 Way 110V AC Single Solenoid Valve – 1/4 Inch 3 port 2 position Spool Type with Spring Return Pneumatic Solenoid Valve – STA1

1,335.001,669.00 Price Excluding GST - 1,131.36 (-20%)

In stock

Features:

  • Port Size : 1/4″BSP

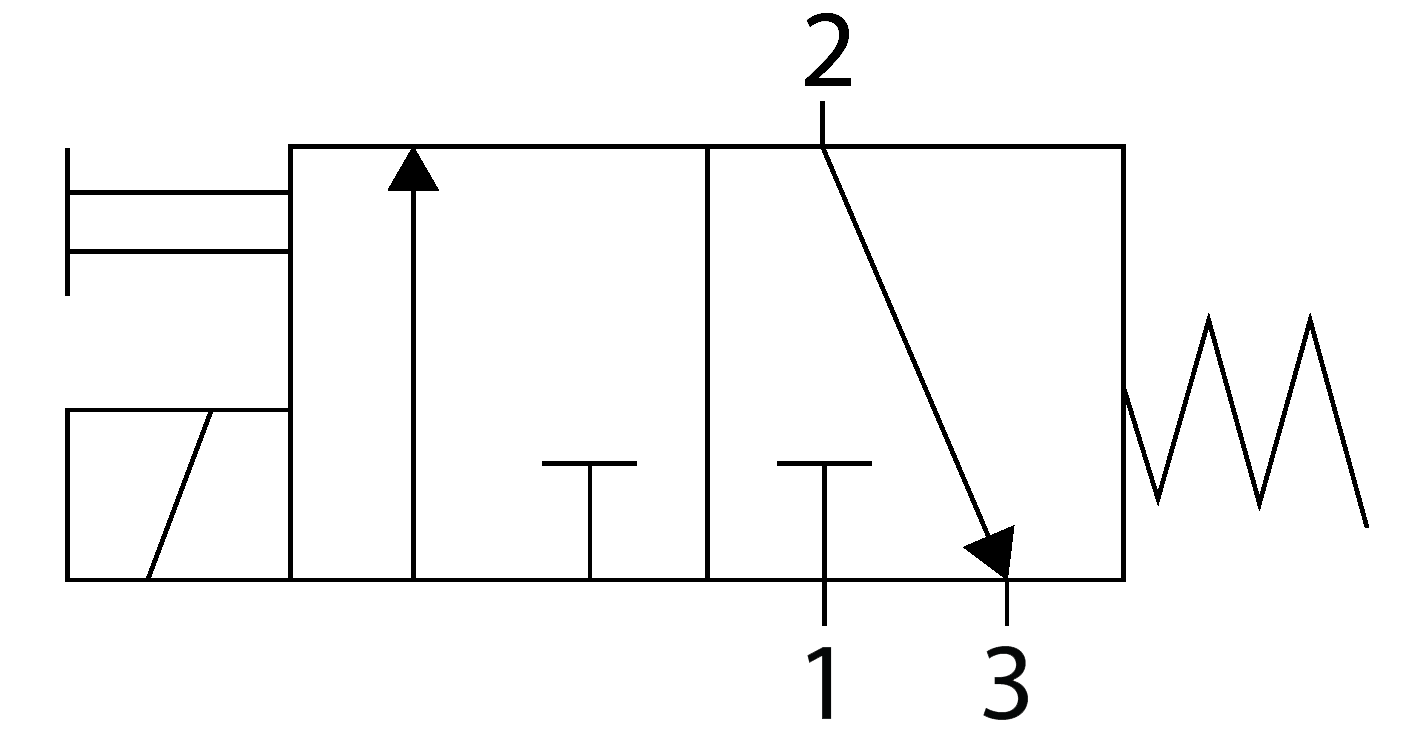

  • Valve Type : 3 Port 2 Position Spool Type Single Solenoid with Spring Return
  • Coil Voltage : 110V AC
  • MoC : Aluminium, Nitrile, Brass, Polymer
  • MO : Available with Manual Override switch
  • Working Pressure Range : 2 to 10 kg/cm2 (bar)
  • Response : Quick Response time at Max.1500 Cycle/Min. – 2 lacs Cycle tested
  • Power : Low Power Consumption
  • Applications : Compressed Air
  • Other Specification / Data : Check the tabs given below for details

W3Schools

SKU: STA1-10EMS-110VAC Categories: , ,

1,335.001,669.00 Price Excluding GST - 1,131.36 (-20%)

Bulk Pricing

Quantity Price
1 - 2 1,335.00
3 - 5 1,295.00
6 - 8 1,255.00
9 - 14 1,202.00
15+ 1,162.00

Description

Port In & Out : 1/4″ / Exhaust : 1/4″
Design Spool with Catridge Type Compact Design
Position 2 position
Body Material Aluminium
Media Pressure 2 – 10 Bar
Ambient Temp. 5° C to 60° C
Media Compressed Air
Coil Voltages Available in various voltages
Recommendation Use of Filter in the inlet port

Dimension

Technical Data

Model  No.  Body  Material   Port Size (Inch) Working Pressure Kg/cm² Flow (lpm) No. of Coil Coil Insulation Coil Protection
STA1 ALUMINIUM 1/4″ 2 – 10 Bar 1200 Single Class H IP-65
