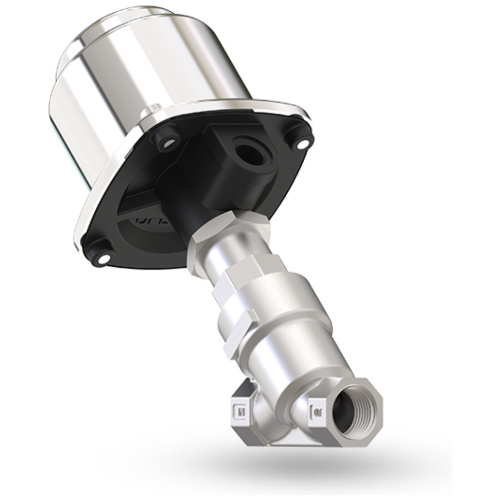

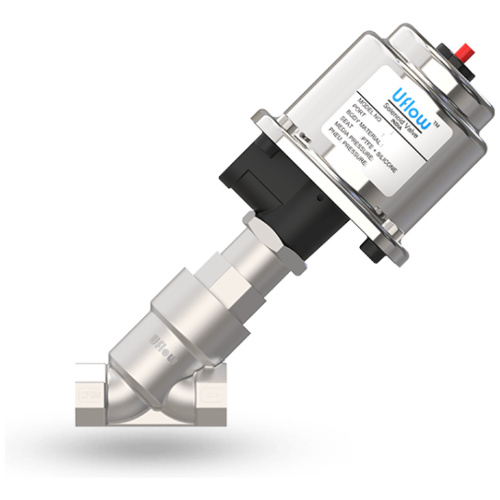

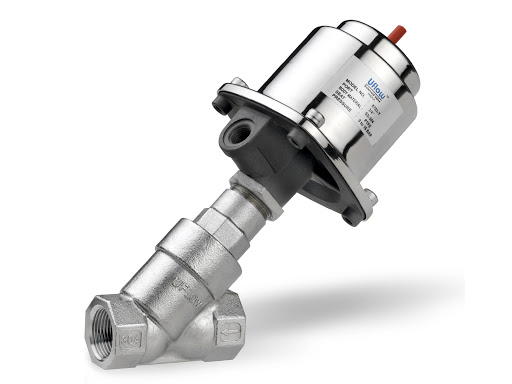

Uflow 1/2 Inch Angle Seat Valve – 1/2 Inch Y Type Pneumatic Control Valve with Steel Operator SS Body (0 – 16 Bar) Screwed End – Normally Close
₹3,040.00₹3,800.00 Price Excluding GST - ₹2,576.27 (-20%)
Features:
- Size : 1/2″BSP
- Valve Type : Single Acting Normally Closed Screwed Ends
- Body Material : SS304 (ASTM A351 Grade CF8)
- Media Pressure Range : 0 to 16 kg/cm2 (bar)
- Actuator Pressure Range : 3.5 to 7 kg/cm2 (bar)
- Seat : Teflon (PTFE)
- Temperature (Media) : -10° C to 180° C
- Media : Steam, Air, Water, Gases, Chemicals, Oil
- Applications : To regulate the flow of liquids, gases, steam, high Viscosity media and harsh applications
- Other Specification / Data : Check the tabs given below for details
Description
| Port | Refer technical data sheet (Available in BSP threading) | ||
|---|---|---|---|
| End Connection | Screwed | ||
| Body Material | SS 304 / CF8 | ||
| Body Sleeve & Shaft | SS 304 | ||
| Media Pressure | 0 – 16 Bar | ||
| Seat |
|
||
| Media Temp. | |||
| Circumstance Temp. | -10° C to 70° C | ||
| Media | Steam, Air, Water, Gases, Chemical, Oil, Diesel etc. | ||
| Actuator Cover | SS 304 | ||
| Actuator Plate | Aluminium Die Cast | ||
| Actuator Working Pressure | 3.5 to 7 Bar (Not recommened for pressure above 7 Bar) | ||
| Life | More than 10 million cycles | ||
| OTHER SPECIFICATION DATA | Available on Request | ||
| Recommendation | Use of Filter in the inlet port |
NOTE1: Optional Seal : VITON / SILICON / EPDM on request
NOTE2: Optional Thread : NPT on request
Dimension
| Model No. | Port Size | A | B | C | D | E |
|---|---|---|---|---|---|---|
|
YCP25
|
½”
|
65
|
163
|
151
|
173
|
90
|
Technical Data
| Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphragm Material | Flow Factor Kv m³ / hr |
|---|---|---|---|---|---|---|---|
| YCP25 | SS 304 | 1/2″ | 15 | 0 | 16 | PTFE | 6 |
* Note – Seal : EPDM / Viton / Silicon on request
