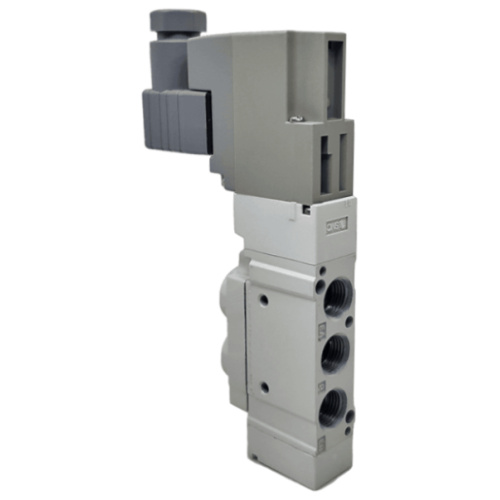

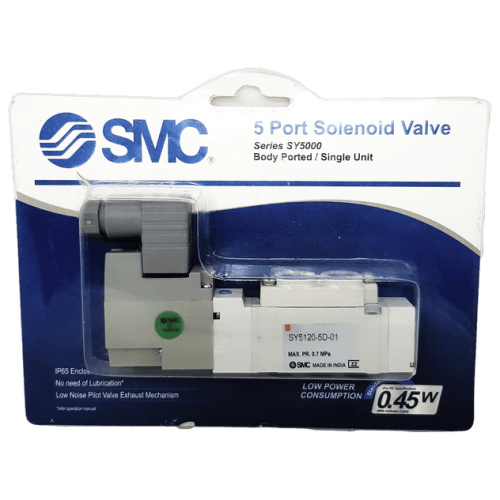

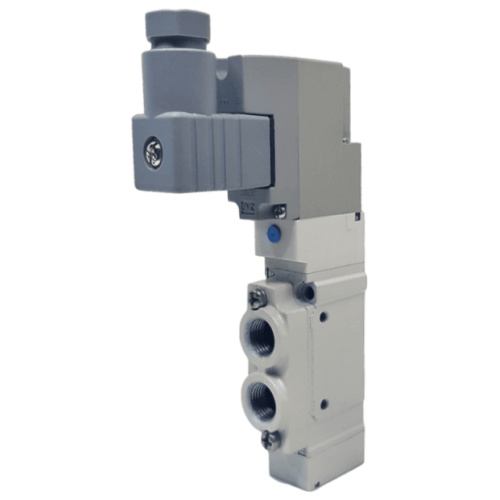

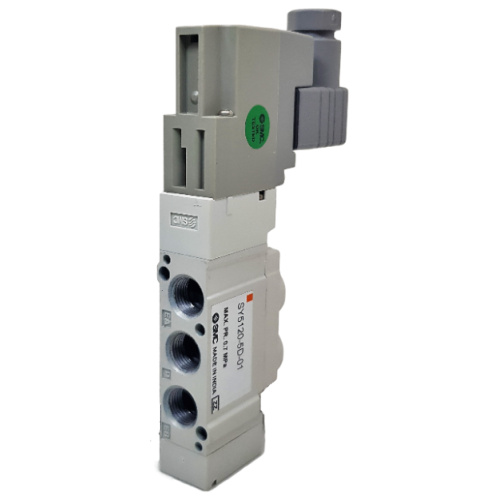

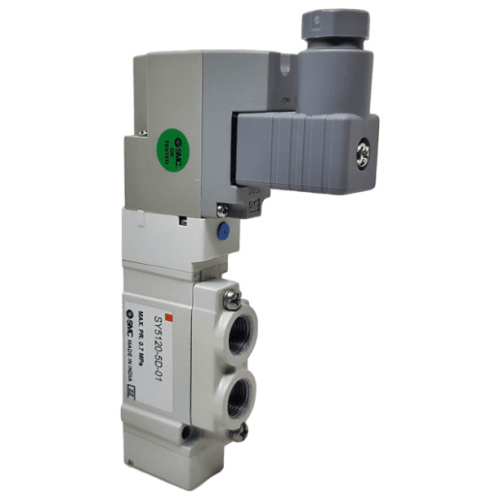

SMC SY5120-5D-01 Pneumatic Single Solenoid Valve 1/8″x5/2 Way 24V DC

2,820.003,525.00 Price Excluding GST - 2,389.83 (-20%)

In stock

Features

  • Item : 5/2 Way Single Solenoid Valve
  • Body : Aluminum Die Cast
  • Fluid : Air
  • Port Size : 1/8 inch
  • Voltage : 24V DC
  • Electrical Entry : DIN Terminal
  • Indicator Light & Supressor : No

SKU: SMCCIPLSY51205D01-185224V Categories: , ,

2,820.003,525.00 Price Excluding GST - 2,389.83 (-20%)

Description

Item Single Solenoid Valve
Position 5/2-Way
Port Size 1/8″
Operating Pressure 0.15 – 0.7 MPa
Max. Operating Frequency 5 Hz
Type of actuation Single Solenoid
Material of Construction Die Cast Aluminium
Manual Override Non-Locking Push Type
Type of mounting Can be Mounted
On Manifold
Or With through hole
Or Bracket

Technical Data

Model Port Size Actuation Type Power Consumption Response Time @ 0.5MPa Seal
SY5120-4D-01 1/8″ Electric 0.4W 19 or less ms H-NBR

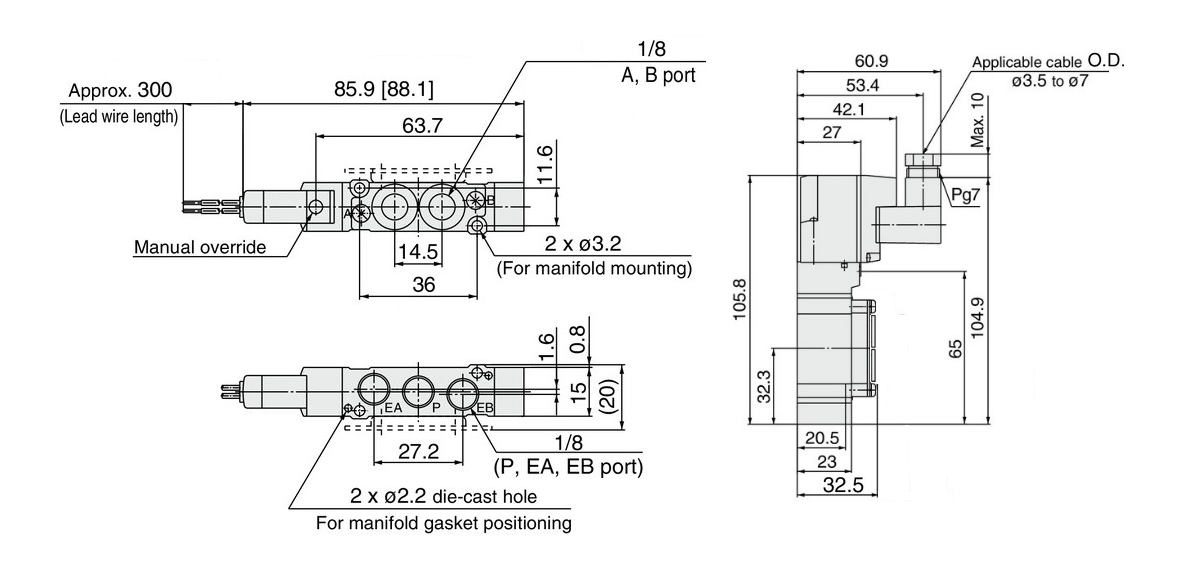

Dimensions
