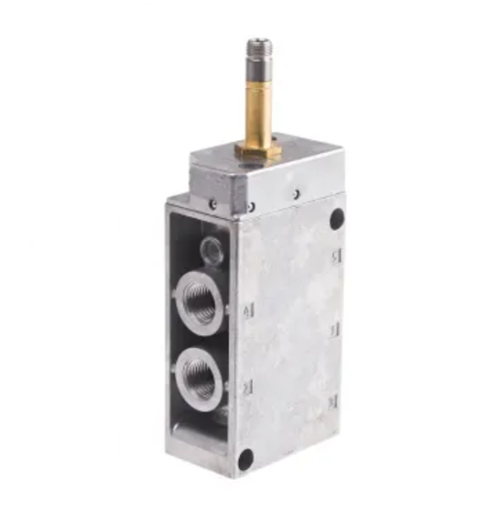

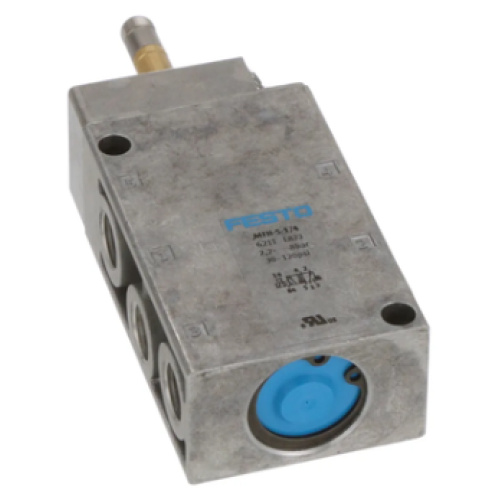

Festo MFH-5-1/4 6211 Pneumatic Single Solenoid Valve 1/4″x5/2 Way
₹3,640.00₹4,550.00 Price Excluding GST - ₹3,084.75 (-20%)
Features
- Item : Single Solenoid Valve

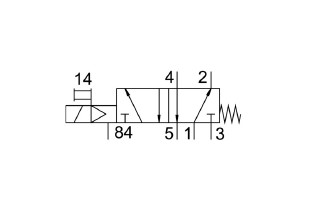

- Position : 5/2-Way
- Port Size : G 1/4
- Body : Aluminum Die Cast
- Design : Poppet Seat
- Operating Pressure : 2.2 – 8 bar
- Media : Air
Description
| Item | Single Solenoid Valve |
|---|---|
| Position | 5/2-Way |
| Port Size | G 1/4 |
| Design | Poppet Seat |
| Type of actuation | Electric |
| Material of Construction | Die Cast Aluminium |
| Media | Air |
| Type of mounting | Either On Manifold rail Or With through hole |
Technical Data
| Model | Port Size | Actuation Type | Media | Degree of Protection | Switching Time On/Off | Material Seals |
|---|---|---|---|---|---|---|
| MFH-5-1/4 | G 1/4 | Electric | Air | IP65 | 9 / 29 ms | NBR |
Dimensions
| Model | B1 | B2 | B3 | B4 | B6 | D1 | D2 | D4 | D5 | H1 | H2 | H3 | H4 | H5 | H6 | H7 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MFH-5-1/4
|
30.4 ±0.1
|
-
|
5 ±0.15
|
-
|
22
|
G1/4
|
M5
|
M5
|
6.5 ±0.14
|
128
|
143
|
12
|
24 ±0.15
|
28 ±0.1/0.2
|
-
|
94
|
50 ±0.4/-0.2/
|
73.5
|
