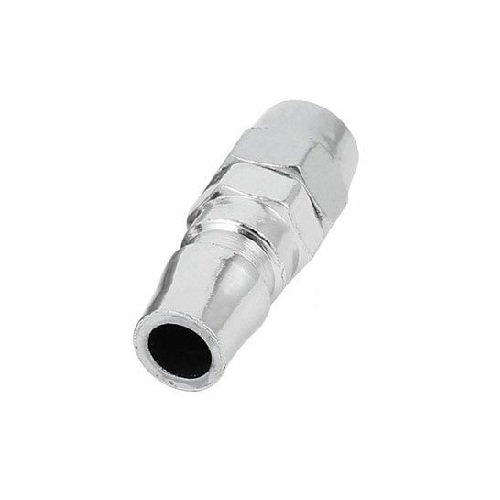

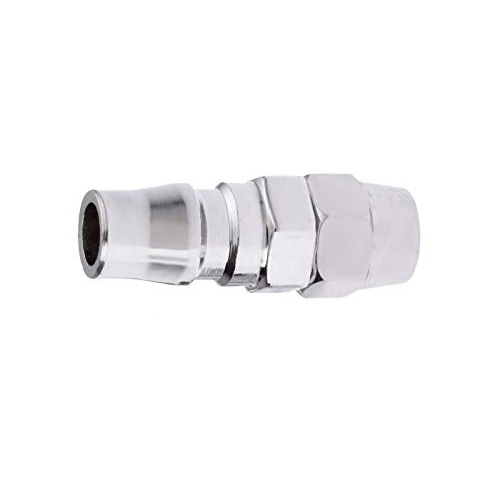

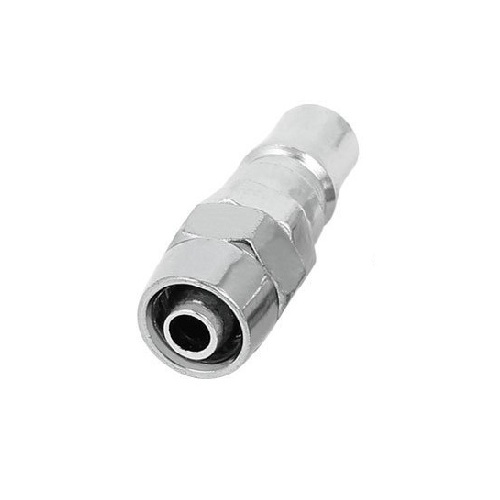

Aeroflex Pneumatic Quick Coupler 1/4 Inch PU Plug PP20
₹60.00₹80.00 Price Excluding GST - ₹50.85 (-25%)
Features:
- Size : 8mm OD
- Type : Plug / Adaptor (with PU Fitting)
- Interchangeability : It can be coupled with all sizes and varieties of Sockets/Couplers
- Body Material : Steel
- Pressure Range : Upto 10 kg/cm2 (bar)
- Purpose : General purpose Pneumatic application
- For Other Plug / Adaptor (PU) : 3/8″ , 1/2″
- Minimum quantity required for this product: 5
Description
| Port | Refer technical data sheet (Available in PU Fitting) |
|---|---|
| End Connection | PU Fitting |
| Body Material | Steel |
| Media | Air, Water, Chemical, Gas |
| Finish | Chrome Plated |
| Other Specification Data | Available on Request |

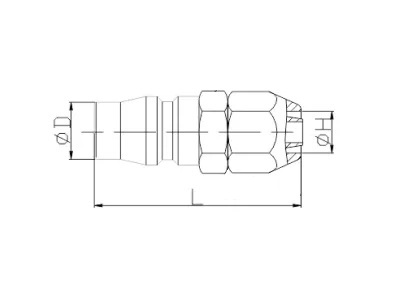

Dimensions
| Model No. | D | L | H |
|---|---|---|---|
|
PP20
|
11
|
41
|
8
|
Technical Data
| Model No. | MoC | Coupler Type | Size |
|---|---|---|---|
| PP20 | Steel (Chrome Plated) | Plug | 8 OD |
* Note – Working Pressure varies with size and media
Specification
Additional information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 2 × 2 cm |
