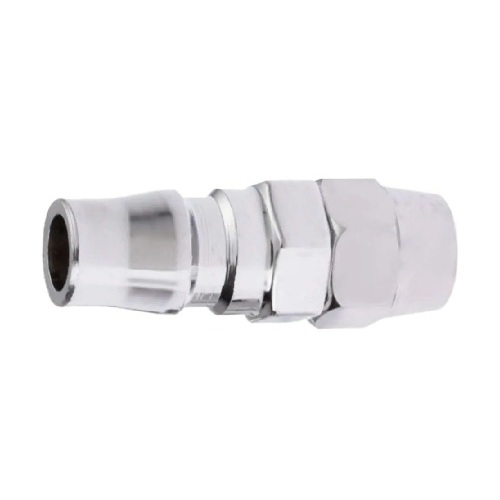

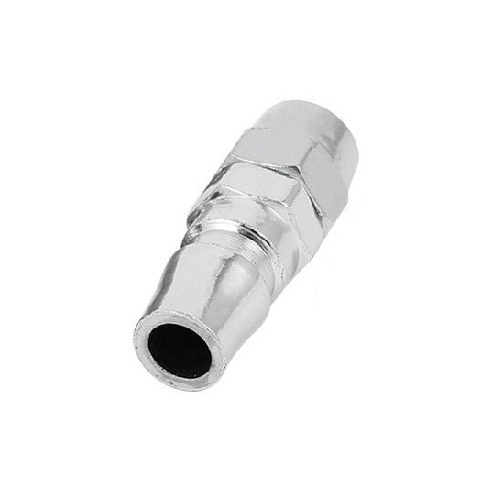

Aeroflex Pneumatic Quick Coupler 1/2 Inch PU Plug PP40
₹81.00₹108.00 Price Excluding GST - ₹68.64 (-25%)
Features:
- Size : 12mm OD
- Type : Plug / Adaptor (with PU Fitting)
- Interchangeability : It can be coupled with all sizes and varieties of Sockets/Couplers
- Body Material : Steel
- Pressure Range : Upto 10 kg/cm2 (bar)
- Purpose : General purpose Pneumatic application
- For Other Plug / Adaptor (PU) : 1/4″ , 3/8″
- Minimum quantity required for this product: 5
Description
| Port | Refer technical data sheet (Available in PU Fitting) |
|---|---|
| End Connection | PU Fitting |
| Body Material | Steel |
| Media | Air, Water, Chemical, Gas |
| Finish | Chrome Plated |
| Other Specification Data | Available on Request |
Dimensions
| Model No. | D | L | H |
|---|---|---|---|
|
PP40
|
11
|
43
|
12
|
Technical Data
| Model No. | MoC | Coupler Type | Size |
|---|---|---|---|
| PP40 | Steel (Chrome Plated) | Plug | 12 OD |
* Note – Working Pressure varies with size and media
Specification
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 5 × 2 × 2 cm |
