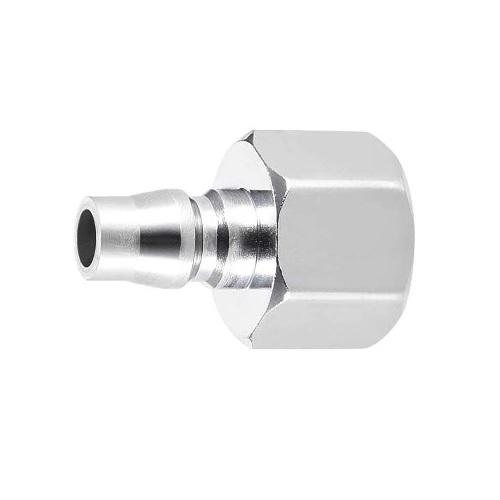

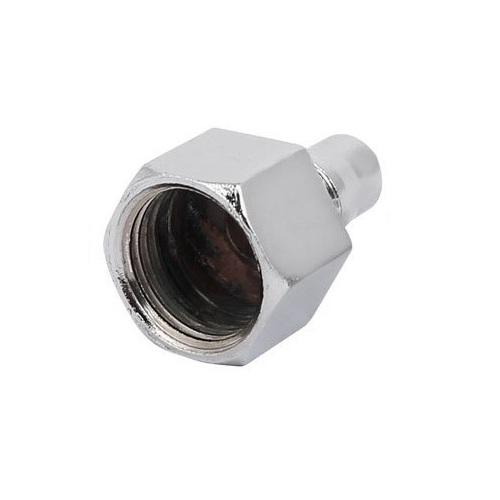

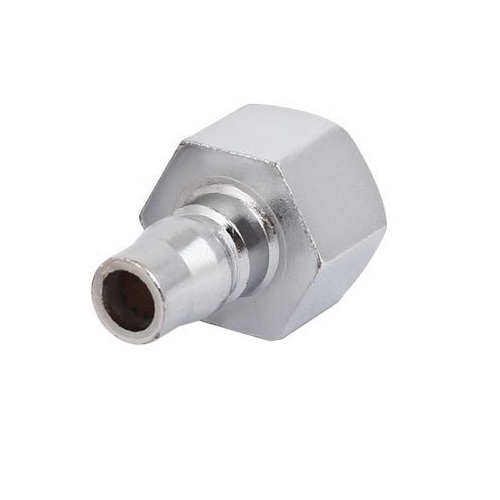

Aeroflex Pneumatic Quick Coupler 1/2 Inch Female Plug PF40

81.00108.00 Price Excluding GST - 68.64 (-25%)

In stock

Features:

  • Size : 1/2″
  • Type : Plug / Adaptor (Female Threaded)
  • Interchangeability : It can be coupled with all sizes and varieties of Sockets/Couplers
  • Body Material : Steel
  • Pressure Range : Upto 10 kg/cm2 (bar)
  • Purpose : General purpose Pneumatic application
  • For Other Plug / Adaptor (Female Threaded) : 1/4″ , 3/8″

  • Minimum quantity required for this product: 5
SKU: AFPLPF40F12 Categories: ,

81.00108.00 Price Excluding GST - 68.64 (-25%)

Bulk Pricing

Quantity Price
1 - 5 81.00
6 - 10 79.00
11 - 25 77.00
26 - 50 73.00
51+ 69.00

Description

Port Refer technical data sheet (Available in BSP/BSPT threading)
End Connection Screwed
Body Material Steel
Media Air, Water, Chemical, Gas
Finish Chrome Plated
Other Specification Data Available on Request

Dimensions

Model No. D L MT
PF40
11
40
1/2"

Technical Data

Model  No.  MoC  Coupler Type   Size
PF40 Steel (Chrome Plated) Plug 1/2″

* NoteWorking Pressure varies with size and media

Specification

Additional information

Weight 0.1 kg
Dimensions 4 × 2 × 2 cm
