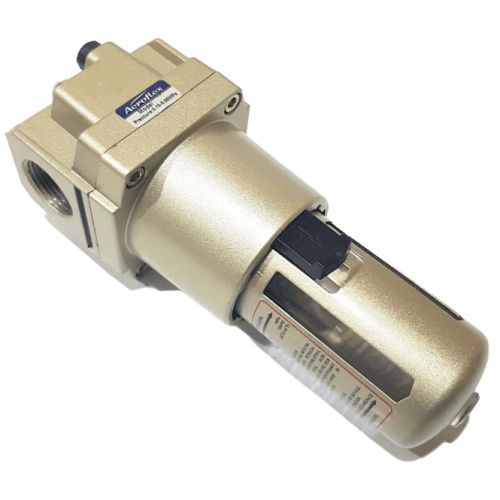

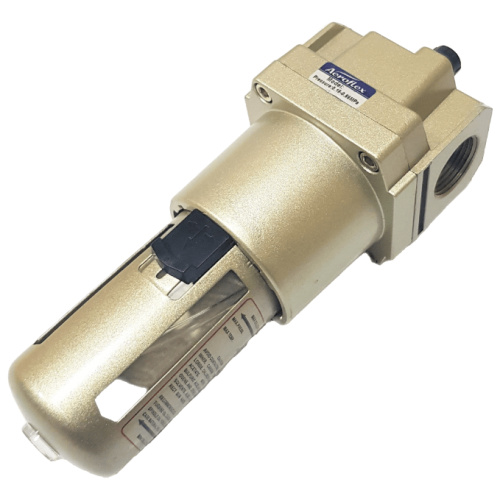

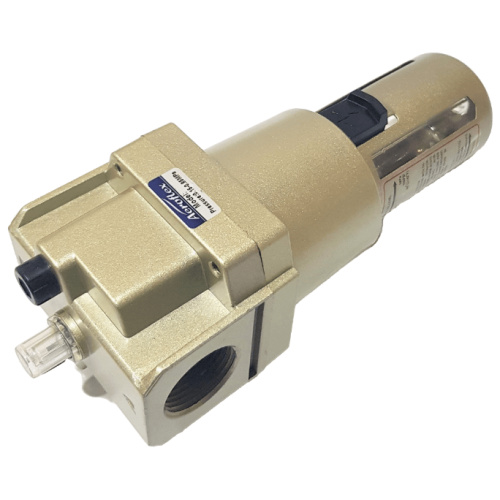

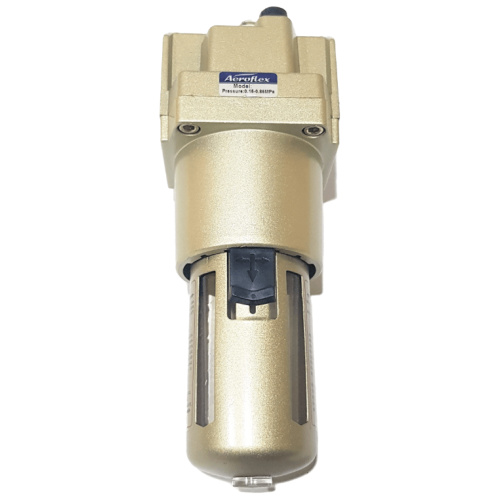

Aeroflex 1 Inch Pneumatic Lubricator Unit L-10 – Air Lubricator Unit with Metal Guard
₹1,770.00₹2,360.00 Price Excluding GST - ₹1,500.00 (-25%)
Features
- Function: Modular Air Lubricator Unit
- End Connection: Screwed
- Body Material: Aluminium Die Cast
- Max. Operating Pressure: 10 Bar
- Working Pressure: 0.5 to 8.5 Bar
- Proof Pressure: 15 Bar
Description
| Function | Modular Air Lubricator Unit |
|---|---|
| End Connection | Screwed |
| Body Material | Aluminium Die Cast |
| Valve Assembly & Seal | Brass, NBR |
| Bowl Assembly | Polycarbonate With Metal Bowl Guard |
| Media | Air |
| Max. Operating Pressure | 10 Bar |
| Working Pressure | 0.5 to 8.5 Bar |
| Proof Pressure | 15 Bar |
| Recommended Oil Use | ISO VG32 or Same Grade |

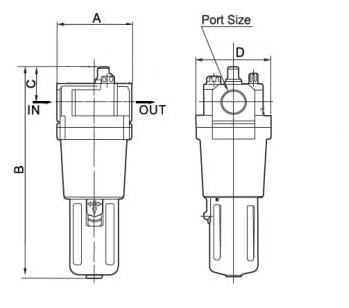

Dimensions
| Port | A | B | C | D | P |
|---|---|---|---|---|---|
|
1"
|
90
|
250
|
45
|
90
|
90
|
Technical Data
| Model | Port Size | Bowl Guard | Fluid | Temperature | Oil Use | Working Pressure Range | Max. Flow Rate Nl/Min |
|---|---|---|---|---|---|---|---|
| L-10 | 1″ BSP | Metal | Air | 5 to 60deg C | ISO VG32 | 0.5 to 8.5 Bar | 9000 |
