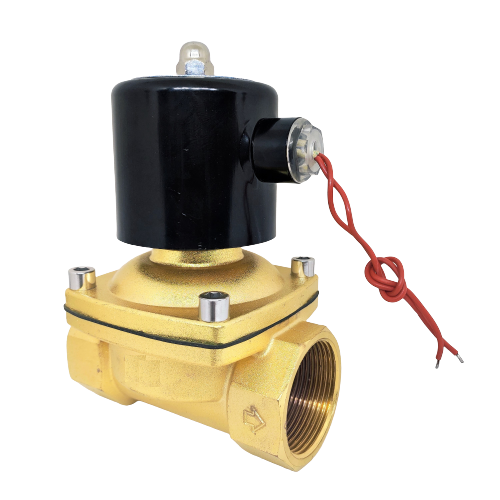

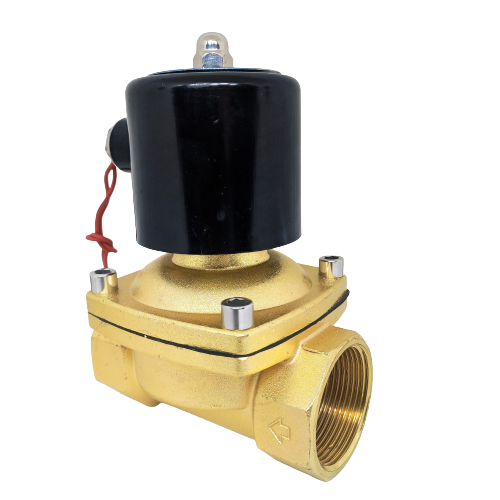

Aeroflex 1.1/2 Inch 2/2 Way 230V AC Normally Close Diaphragm Solenoid Valve Brass Finish – 40-2WZ
₹3,927.00₹5,236.00 Price Excluding GST - ₹3,327.97 (-25%)
Features:
- Size : 1.1/2″BSP
- Coil Type : Metallic Casing Round Coil with Wire
- Valve Type : 2/2 way Normally Closed Screwed End
- Body Material : Brass Finish Alloy
- Pressure Range : 0 to 10 kg/cm2 (bar)
- Temperature (Media) : -5° C to 90° C
- Seal : Nitrile (NBR)
- Media : Suitable for Air, Water, Chemical, Gas
- Other Specification / Data : Check the tabs given below for details
Description
| Port | Refer technical data sheet (Available in BSP threading) | ||
|---|---|---|---|
| End Connection | Screwed | ||
| Body Material | Brass Finish Alloy | ||
| Diaphragm |
|
||
| Media Temp. | |||
| Media | Air, Water, Chemical, Gas | ||
| Operating Voltage | 230AC & 24DC | ||
| Coil Features | Easy coil change or freely movable in between as require | ||
| Other Specification Data | Available on Request |
NOTE: Use of filter in the inlet port is recommended.
Dimensions
| Model No. | G | A | B | C | D | E |
|---|---|---|---|---|---|---|
|
40-2WZ
|
1.1/2"
|
140
|
92
|
168
|
117
|
68
|
Technical Data
| Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphragm Material |
|---|---|---|---|---|---|---|
| 40-2WZ | Brass Finish Alloy | 1.1/2″BSP | 40 | 0 | 10 | NBR |
* Note – Working Pressure varies with size and media
