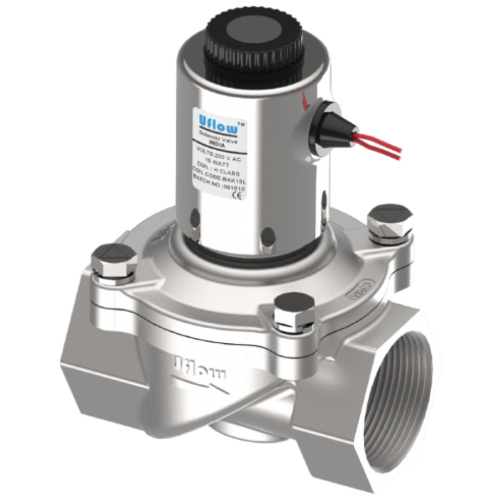

Uflow 1/2 Inch 2/2 Way Normally Open Semi-Lift Diaphragm Operated Solenoid Valve SS304 with Metallic Round Coil – Screwed Ends
₹4,005.00 – ₹4,405.00 (-20%)
Features:
- Size : 1/2″BSP
- Coil Type : Metallic Round Coil with Lead Wire
- Valve Type : 2/2 way Normally Open Screwed End Gravity Pressure Valve
- Body Material : SS304 (ASTM A351 Grade CF8)
- Pressure Range : 0 to 7 kg/cm2 (bar)
- Temperature (Media) : -30° C to 90° C
- Seal : Nitrile (NBR)
- Media : Suitable for Air, Water, Chemical, Gas
- Other Specification / Data : Check the tabs given below for details
Description
Port | Refer technical data sheet (Available in BSP threading) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
End Connection | Screwed | ||||||||||
Body Material | SS ASTM A351 Grade CF8 | ||||||||||
Diaphragm |
|
||||||||||
Media Temp. | |||||||||||
Circumstance Temp. | -10° C to 70° C | ||||||||||
Media | Air, Water, Chemical, Gas, Oil, Steam. LPG | ||||||||||
Main Features | Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment | ||||||||||
Operating Voltage |
|
||||||||||
POWER CONSUMPTION | |||||||||||
COIL FEATURES | High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require. | ||||||||||
COIL TYPES | Epoxy Moulded Coil with LED, Metallic Round Coil with Wire, Metallic Round Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil | ||||||||||
OPTIONAL FEATURE | 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces. | ||||||||||
OTHER SPECIFICATION DATA | Available on Request |
NOTE1: Seal – NBR is standard. Rest – Optional
NOTE2: Use of filter in the inlet port is recommended.
Dimensions
Model No. | Port Size | Diagram No | A | B | C | D | E | E1 |
---|---|---|---|---|---|---|---|---|
MCN23Z
|
1/2"
|
12.1
|
69
|
116
|
101
|
56
|
38
|
48.50
|
Technical Data
Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pr. Kg/cm² | Max. Operating Pr. Kg/cm² | Seal & Diaphragm Material | Flow Factor Kv m³/hr |
---|---|---|---|---|---|---|---|
MCN23Z | CF8 (SS304) | 1/2″ | 16.50 | 0 | 7 | NBR | 3.20 |
* Note – Body Material : CF8M (SS316) on request, Seal : EPDM / Viton / PTFE on request
