Uflow Solenoid Coil 30mm Epoxy Moulded Round Terminal 230v AC / 24v DC / 110v AC / 12v DC / 24v AC
₹2,020.00₹2,525.00 (-20%)
Features:
- Coil Type : Epoxy Moulded Round with Terminal
- Coil Housing : Epoxy Moulded Round
- Coil Connection : With Terminal
- Coil Bore : 30mm
- Standard : Coils are conforming as per IEC-60335-1 with derivatives (LVD / EMC)
- Coil Volatge : 230v AC
- Other Specification / Data : Check the tabs given below for details
Description
| Bore | 30mm | ||||
|---|---|---|---|---|---|
| Connection | with Terminal | ||||
| Housing | Epoxy Moulded Round | ||||
| Voltage Options |
|
||||
| POWER CONSUMPTION | |||||
| COIL FEATURES | High Reliability, Surge Suppressors for High Wattage Coils, Easy coil changes coil lockable in 4X90 position or freely movable in between as require. | ||||
| COIL TYPES | Epoxy Moulded Coil with LED, Metallic Round Coil with Wire, Metallic Round Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil | ||||
| OPTIONAL FEATURE | 90% Power saver and Latching Coil series also available | ||||
| OTHER SPECIFICATION DATA | Available on Request |
NOTE1: Please check coils compatibility with valve
Technical Data
| Model No. | Housing | Bore (mm) | Coil Voltage |
|---|---|---|---|
| MAQ28L | Epoxy Moulded Round | 30mm | 230v AC |
Dimension
| Type | Diagram No. | A | B | C | D | E |
|---|---|---|---|---|---|---|
|

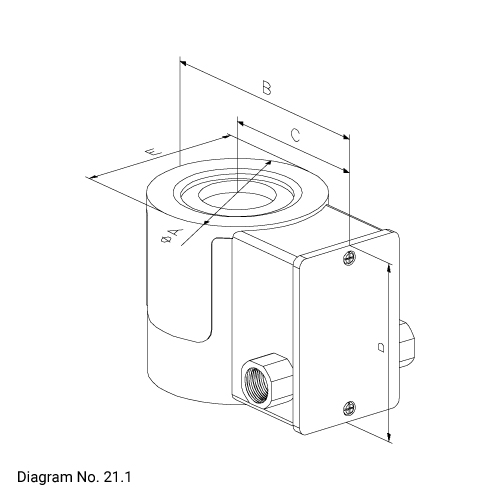

Epoxy Moulded Round Coil
|
21.1
|
30.50
|
105
|
69
|
75
|
71
|
