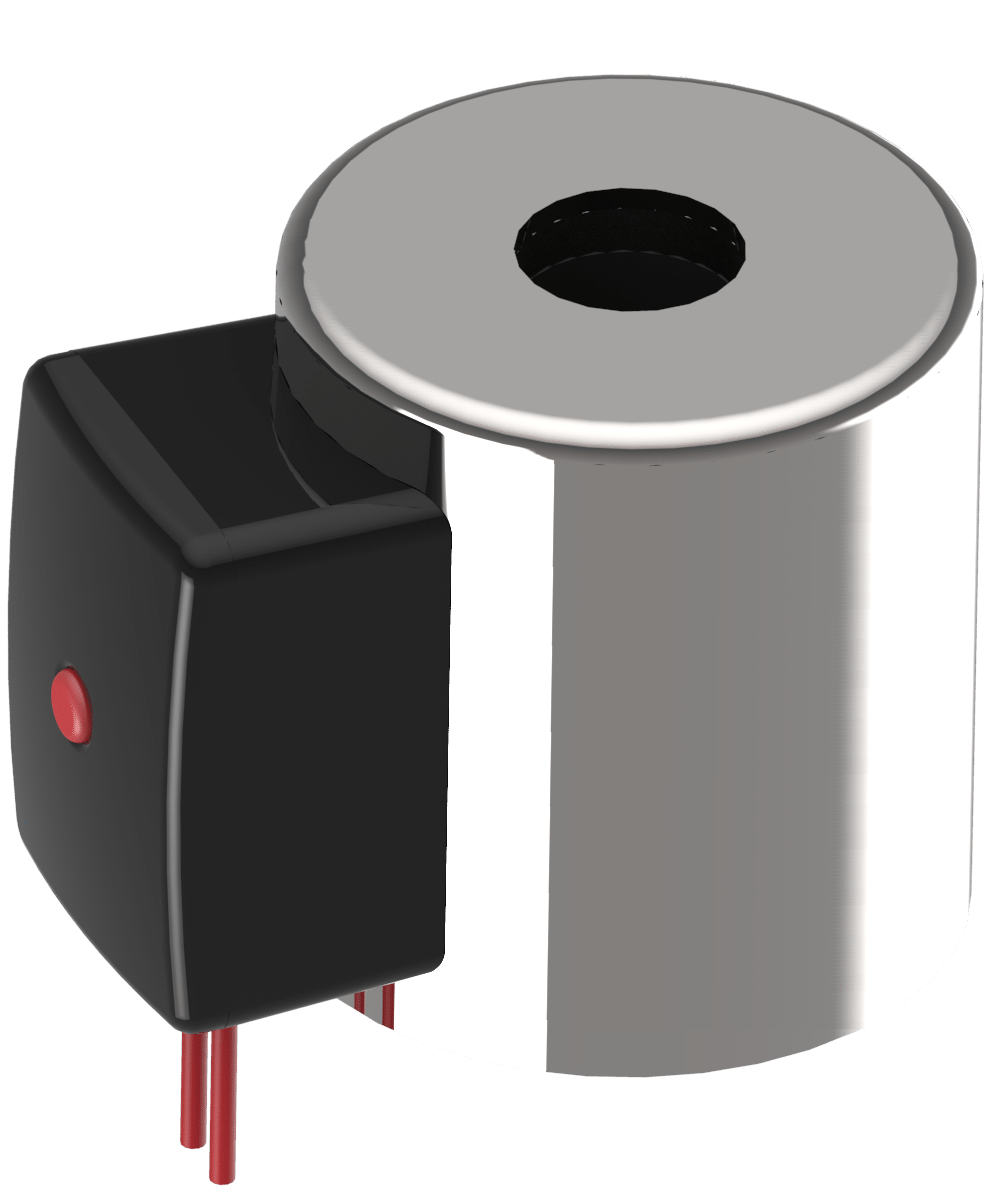

Uflow Solenoid Coil 18mm Power Saver 230v AC / 24v DC
₹1,290.00₹1,613.00 (-20%)
Features:
- Coil Type : Power Saver
- Coil Housing : Metallic Round Power Saver
- Coil Connection : With Lead Wire
- Coil Bore : 18mm
- Coil Class : H Class
- Benefits : Saves Energy, Reduces Cost, Low Wattage
- Coil Volatge : 230v AC
- Other Specification / Data : Check the tabs given below for details
Description
| Bore | 18mm | ||||
|---|---|---|---|---|---|
| Connection | with Lead Wire | ||||
| Housing | Power Saver | ||||
| Voltage Options |
|
||||
| POWER CONSUMPTION | |||||
| COIL FEATURES | High Reliability, Surge Suppressors for High Wattage Coils, Easy coil changes coil lockable in 4X90 position or freely movable in between as require. | ||||
| COIL TYPES | Epoxy Moulded Coil with LED, Metallic Round Coil with Wire, Metallic Round Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil | ||||
| OPTIONAL FEATURE | 90% Power saver and Latching Coil series also available | ||||
| OTHER SPECIFICATION DATA | Available on Request |
NOTE1: Please check coils compatibility with valve
Technical Data
| Model No. | Housing | Bore (mm) | Coil Voltage |
|---|---|---|---|
| PAK03L | Power Saver | 18mm | 230v AC |

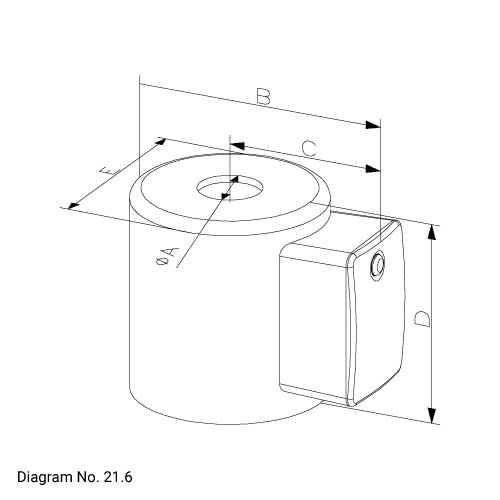

Dimension
| Type | Diagram No. | A | B | C | D | E |
|---|---|---|---|---|---|---|
|
Metallic Round Shape Power Saver (18mm)
|
21.6
|
18.50
|
67.30
|
42
|
62.00
|
50
|
