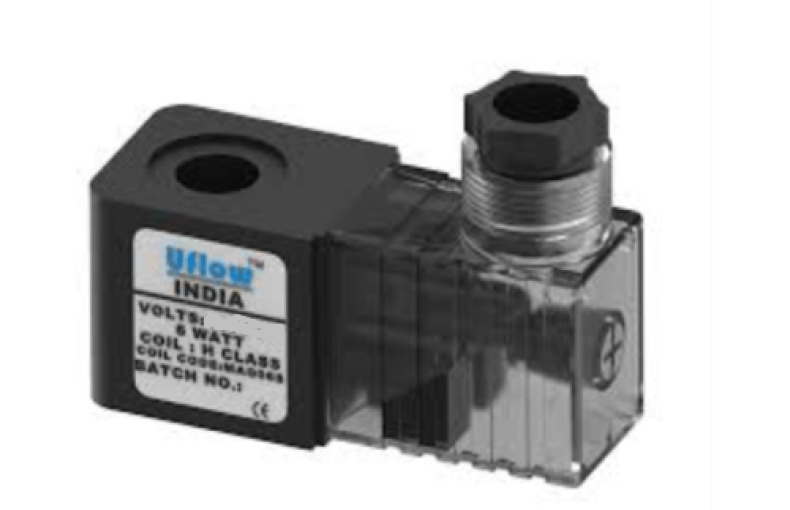

Uflow Solenoid Coil 10mm Epoxy Moulded with LED 230v AC / 24v DC / 110v AC / 12v DC / 24v AC

510.00560.00 (-20%)

In stock

Features:

  • Coil Type : Epoxy Moulded with LED Din Connector
  • Coil Housing : Epoxy Moulded
  • Coil Connection : With LED Din Connector
  • Coil Bore : 10mm
  • Coil Class : H Class
  • Coil Volatge : 230v AC
  • Other Specification / Data : Check the tabs given below for details

W3Schools

510.00560.00 (-20%)

Clear

Description

Bore 10mm
Connection with LED Din Connector
Housing Epoxy Moulded
Voltage Options
24AC 110AC 230AC 12DC 24DC
6W 6W 6W 6W 6W
POWER CONSUMPTION
COIL FEATURES High Reliability, Surge Suppressors for High Wattage Coils, Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
COIL TYPES Epoxy Moulded Coil with LED, Metallic Round Coil with Wire, Metallic Round Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil, Power Saver Coil
OPTIONAL FEATURE 90% Power saver and Latching Coil series also available
OTHER SPECIFICATION DATA Available on Request

NOTE1: Please check coils compatibility with valve

Technical Data

Model  No.  Housing   Bore (mm) Coil Voltage
MAG06L Epoxy Moulded with LED 10mm 230v AC

Dimension

Type Diagram No. A B C D E
Epoxy Moulded With LED Din Connector
21.3
10.30
65
52
46
26
