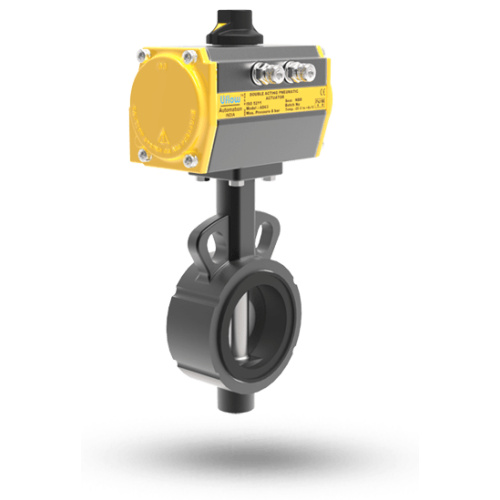

Uflow 3 Inch / 80mm Pneumatic Actuator Operated CI Body Butterfly Valve PN10

5,790.007,238.00 Price Excluding GST - 4,906.78 (-20%)

In stock

Features:

  • Valve Size : 3″ / 80mm
  • End Connection : Wafer – API 609 (CAT – A)
  • Actuator : Type – Double Acting / Size – 50
  • Body Material : CI Body (FG210)
  • Disc Material : SS304
  • Stem Design / Material : Single Shaft / ASTM A 276 TYPE SS 410
  • Seat Material : EPDM
  • Pressure Rating : PN10

W3Schools

Bulk Pricing

Quantity Price
1 - 2 5,790.00
3 - 5 5,617.00
6 - 8 5,443.00
9 - 14 5,211.00
15+ 5,038.00

Description

Design Standard IS 13095, Bi-directional zero leakage butterfly valve
End Connection Wafer end
Operator Actuator Operated
Mounting Can be mounted between flanges as per ASME, BS-10 and ISO Pad for actuator
Flange Accommodation ANSI B16.5 150#, BS10 TABLE E, TABLE F, TABLE H
Leakage Class 100% tightness at full differential Pressure.
Disc Rotation 360 Degree
Testing 100% tested under Water and Pneumatic
Pressure Rating PN10 & PN16
Nominal Diameter DN50 – DN200



NOTE: Other options of Seat Material / Pressure Range / Body Material and Additional Attachments only on request.

Dimension

Model No. A B C D E CH ISO
RINAACAWI
46
80
122
242
13
11
F05
