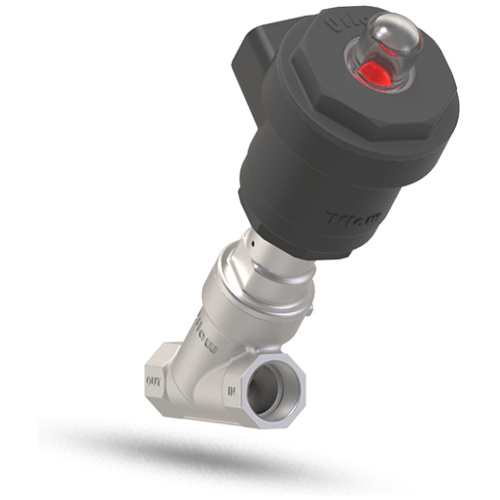

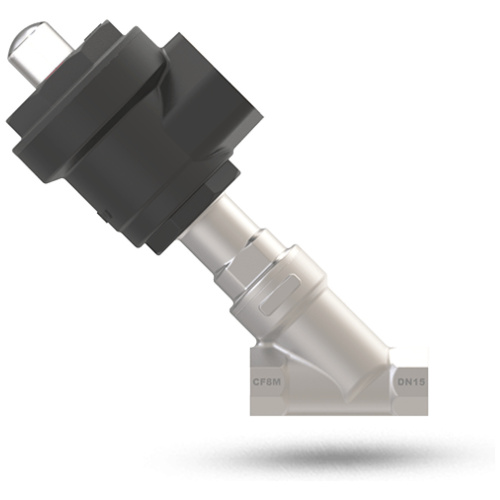

Uflow 3/4 Inch Angle Seat Valve – 3/4 Inch Y Type Pneumatic Control Valve with Plastic Operator SS Body (0 – 16 Bar) NC/Bi-Directional – Screwed End
₹3,310.00₹4,138.00 Price Excluding GST - ₹2,805.08 (-20%)
Features:
- Size : 3/4″BSP
- Valve Type : Single Acting (NC / Bi-directional)
- Body Material : SS304 (ASTM A351 Grade CF8)
- Media Pressure Range : 0 to 16 kg/cm2 (bar)
- Actuator Pressure Range : 3.5 to 7 kg/cm2 (bar)
- Seat : Teflon (PTFE)
- Temperature (Media) : -10° C to 180° C
- Media : Steam, Air, Water, Gases, Chemicals, Oil
- Applications : To regulate the flow of liquids, gases, steam, high Viscosity media and harsh applications
- Other Specification / Data : Check the tabs given below for details
Description
| Port | Refer technical data sheet (Available in BSP threading) | ||
|---|---|---|---|
| End Connection | Screwed | ||
| Body Material | SS 304 / CF8 | ||
| Body Sleeve & Shaft | SS 304 | ||
| Media Pressure | 0 – 16 Bar | ||
| Seat |
|
||
| Media Temp. | |||
| Circumstance Temp. | -10° C to 70° C | ||
| Media | Steam, Air, Water, Gases, Chemical, Oil, Diesel etc. | ||
| Actuator Cover | SS 304 | ||
| Actuator Plate | Aluminium Die Cast | ||
| Actuator Working Pressure | 3.5 to 7 Bar (Not recommened for pressure above 7 Bar) | ||
| Life | More than 10 million cycles | ||
| OTHER SPECIFICATION DATA | Available on Request | ||
| Recommendation | Use of Filter in the inlet port |
NOTE1: Optional Seal : VITON / SILICON / EPDM on request
NOTE2: Optional Thread : NPT on request
Dimension
| Model No. | Port Size | A | B | C | D | ØE | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|---|
|
ACP355
|
3/4"
|
77
|
160.1
|
140.9
|
170.6
|
70
|
24
|
G1/4"
|
32
|
M5
|
Technical Data
| Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphragm Material | Flow Factor Kv m³ / hr |
|---|---|---|---|---|---|---|---|
| YCP35 | SS 304 | 3/4″ | 20 | 0 | 16 | PTFE | 10.90 |
* Note – Seal : EPDM / Viton / Silicon on request
