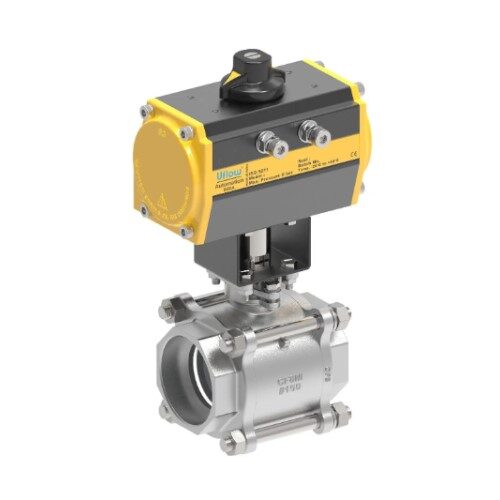

Uflow 2 Inch / 50mm SS304 Pneumatic Ball Valve

10,070.0012,588.00 Price Excluding GST - 8,533.90 (-20%)

In stock

Features:

  • Size: Valve – 2″ BSP, Actuator – 63
  • End Connection : Screwed End
  • Pressure Class : #150
  • Design : 3 Piece Twinseal ball valve
  • Bore : Full Bore
  • MoC : Body / Stem / Ball – All SS304 (CF8)
  • Seat : PTFE

W3Schools

Description

PNEUMATIC ROTARY ACTUATOR
Body Aluminum extruded, hard-anodized corrosion resistance
Design Compact, Maintenance-free, Wear proof Aluminum Free Rack & Pinion design
Performance Low air consumption with max. Torque
Operation Finer teeth module for Smooth traveling & jerk-free sliding
BALL VALVE
Body Valve / stem / Ball – SS304(CF8) – Screwed End
Bore Full port
Design Standard ASME B16.10, ASME B16.25, ASME B16.34 ASME B16.5, API 598, BS EN ISO 17292, ISO 5211
Performance Balls are precision machined and mirror finished for bubble-tight shut off with less operating torque
