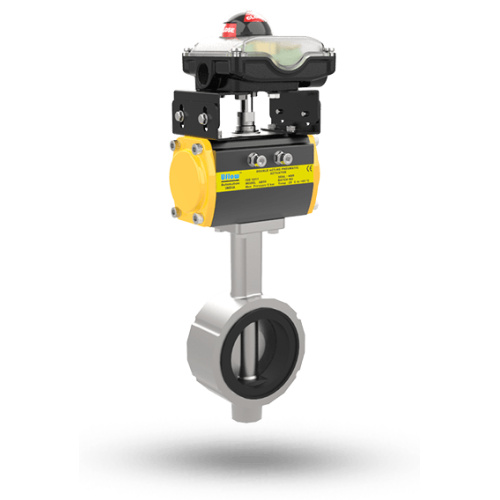

Uflow 2 Inch / 50mm Pneumatic Actuator Operated CI Butterfly Valve PN10 with Limit Switch
₹7,250.00₹9,063.00 Price Excluding GST - ₹6,144.07 (-20%)
Features:
- Valve Size : 2″ / 50mm
- End Connection : Wafer – API 609 (CAT – A)
- Actuator : Type – Double Acting / Size – 50
- Attachment : Limit Switch
- Body Material : CI Body (FG210)
- Disc Material : SS304
- Stem Design / Material : Single Shaft / ASTM A 276 TYPE SS 410
- Seat Material : EPDM
- Pressure Rating : PN10
Description
| Design Standard | IS 13095, Bi-directional zero leakage butterfly valve |
|---|---|
| End Connection | Wafer end |
| Operator | Actuator Operated |
| Mounting | Can be mounted between flanges as per ASME, BS-10 and ISO Pad for actuator |
| Flange Accommodation | ANSI B16.5 150#, BS10 TABLE E, TABLE F, TABLE H |
| Leakage Class | 100% tightness at full differential Pressure. |
| Disc Rotation | 360 Degree |
| Testing | 100% tested under Water and Pneumatic |
| Pressure Rating | PN10 & PN16 |
| Nominal Diameter | DN50 – DN200 |
NOTE: Other options of Seat Material / Pressure Range / Body Material and Additional Attachments only on request.
Dimension
| Model No. | A | B | C | D | E | CH | ISO |
|---|---|---|---|---|---|---|---|
|
RIE8AC1WI
|
43
|
51
|
92
|
185
|
13
|
11
|
F05
|
