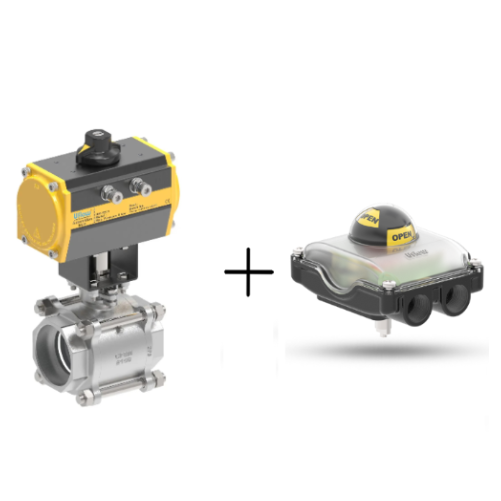

Uflow 2.5 Inch / 65mm SS304 Pneumatic Ball Valve with Limit Switch 2NO-NC

17,581.0021,976.00 Price Excluding GST - 14,899.15 (-20%)

In stock | Dispatch in : 15 - 30 Working days

Features:

  • Size: Valve – 2.5″ BSP, Actuator – 80
  • End Connection : Screwed End
  • Pressure Class : #150
  • Design : 3 Piece Twinseal ball valve
  • Bore : Full Bore
  • MoC : Body / Stem / Ball – All SS304 (CF8)
  • Seat : PTFE
  • Accessories : With Limit Switch (2NO – 2NC)

W3Schools

17,581.0021,976.00 Price Excluding GST - 14,899.15 (-20%)

Description

PNEUMATIC ROTARY ACTUATOR
Body Aluminum extruded, hard-anodized corrosion resistance
Design Compact, Maintenance-free, Wear proof Aluminum Free Rack & Pinion design
Performance Low air consumption with max. Torque
Operation Finer teeth module for Smooth traveling & jerk-free sliding
BALL VALVE
Body Valve / stem / Ball – SS304(CF8) – Screwed End
Bore Full port
Design Standard ASME B16.10, ASME B16.25, ASME B16.34 ASME B16.5, API 598, BS EN ISO 17292, ISO 5211
Performance Balls are precision machined and mirror finished for bubble-tight shut off with less operating torque
LIMIT SWITCH
Design Compact & LightWeight
Indicator Indication Dome inbuilt with transparent cover for open/close indication
Protection Weatherproof Limit Switch
Temperature -20 degree C to 80 degree C
Contact 1NO-NC / 2NO-NC options available
