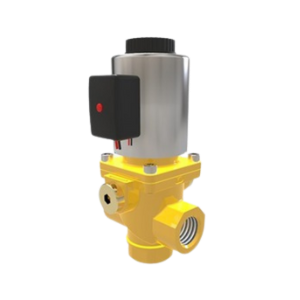

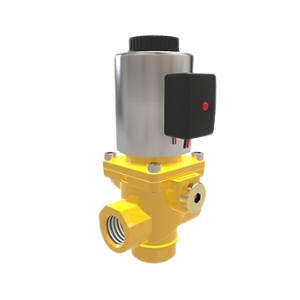

Uflow 1/2 Inch 2/2 way 500mbar Town Gas/Natural Gas/LPG Solenoid Valve with Power Saver Metallic Round Coil

Brand UFLOW
₹ 2690 (Incl. of all taxes)
₹ 2280 + ₹ 410 GST
MRP ₹3362
230v AC
110v AC
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 1 KG
Port Refer to the technical data sheet (available with BSP threading)
End Connection Screwed ends
Body Material Aluminum pressure die-cast
Diaphragm Nitrile rubber (NBR)
Media Temperature -10°C to 60°C
Ambient Temperature -30°C to 70°C
Media Air, Natural Gas, Town Gas
Main Features Flow adjustment, Opening time adjustment, Quick-release initial flow adjustment
Operating Voltage
230 VAC 110 VAC
3 W 3 W
Coil Features High reliability; unaffected by voltage surges. Easy coil replacement. Coil lockable in 4 × 90° positions or freely adjustable in between as required.
Other Coil Types Round metallic power-saver coil
Other Specification Data Available on request

Note: Use of a filter at the inlet port is recommended.

  • Coils conform to IEC 60335-1 and applicable derivatives (LVD / EMC).
  • Gas solenoid valve complies with EN 161 requirements.
Circuit Diagram 2/2 NC
Model No. Body Material Pipe (Inch) Orifice (mm) Min. Operating Pressure (mbar) Max. Operating Pressure (mbar) Seal & Diaphragm Material Flow Factor Kv (m³/hr)
DAN213 Aluminium 1/2" 15 0 500 NBR 4
Size 1/2"BSP
Coil Type Metallic Round Power Saver Coil
Valve Type 2/2 way Normally Closed Screwed End
Key factor with Quick Release Initial Flow Adjustment, Opening Time Adjustment
Body Material Aluminum Pressure Die Cast
Pressure Range 0 to 500 mbar
Temperature (Media) -10° C to 60° C
Seal Nitrile (NBR)
Media Air, Natural Gas, Town Gas
Application Generally used in a boiler or industrial heating application related to Town Gas, Natural gas
Other Specification / Data Check the tabs given below for details
View PDF

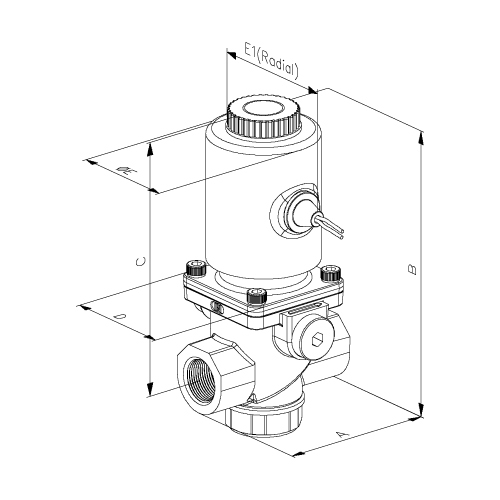

Model No. Port Size A B C D E E1
DAN213 1/2" 72 147 118 70 50 60
