  • Uflow 1 Inch 2/2 way 350mbar Town Gas/Natural Gas/LPG Solenoid Valve with Epoxy Round Coil
Silverton Eco Paper
thumb1 thumb1 thumb1

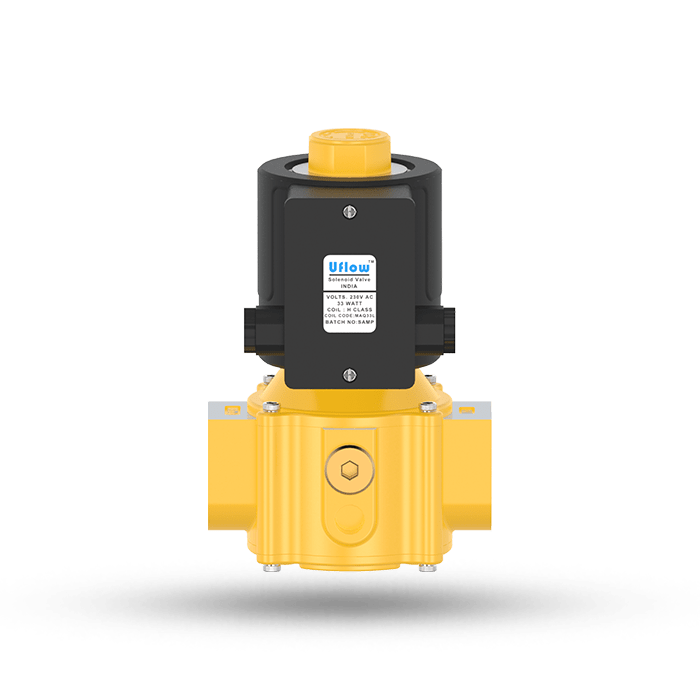

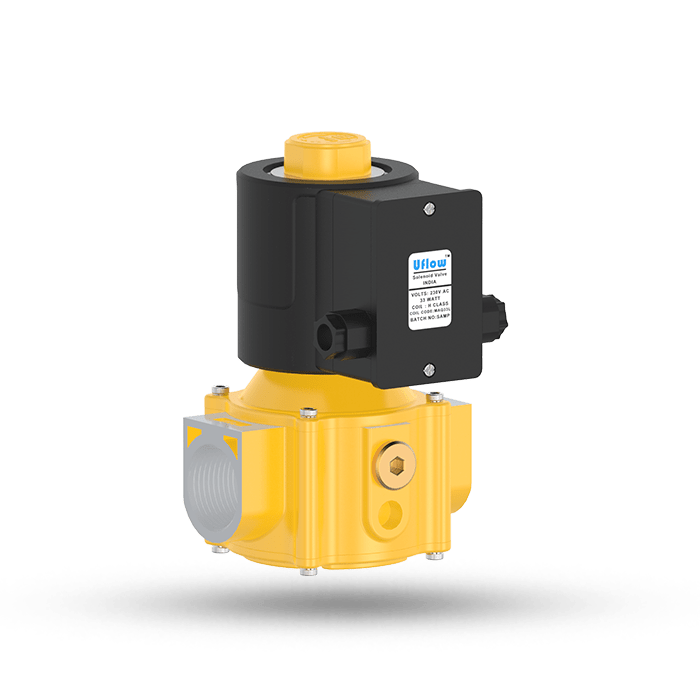

Uflow 1 Inch 2/2 way 350mbar Town Gas/Natural Gas/LPG Solenoid Valve with Epoxy Round Coil

Brand UFLOW
₹ 3790 (Incl. of all taxes)
₹ 3212 + ₹ 578 GST
MRP ₹4737
230v AC
110v AC
Offers and Coupons
Save instantly 2% with online payment.
via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.
Get flat Rs. 100 OFF
Min cart value ₹10,000
INDUSO100
Click to Copy
Get GST invoice and save up to 18% on business purchases
VIEW
Brand Warranty
100% Genuine Products
Safe & Secure Payment
Nationwide Delivery
Multi-Brands
Weight 2.5 KG
Port Refer to the technical data sheet (available with BSP threading)
End Connection Screwed ends
Body Material Aluminum pressure die-cast
Diaphragm Nitrile rubber (NBR)
Media Temperature -10°C to 60°C
Ambient Temperature -30°C to 70°C
Media Air, Natural Gas, Town Gas
Main Features Flow adjustment, Opening time adjustment, Quick-release initial flow adjustment
Operating Voltage
230 VAC 110 VAC
3 W 3 W
Coil Features High reliability; unaffected by voltage surges. Easy coil replacement. Coil lockable in 4 × 90° positions or freely adjustable in between as required.
Other Coil Types Round metallic power-saver coil
Other Specification Data Available on request

Note: Use of a filter at the inlet port is recommended.

  • Coils conform to IEC 60335-1 and applicable derivatives (LVD / EMC).
  • Gas solenoid valve complies with EN 161 requirements.
Circuit Diagram 2/2 NC
Model No. Body Material Pipe (Inch) Orifice (mm) Min. Operating Pressure (mbar) Max. Operating Pressure (mbar) Seal & Diaphragm Material Flow Factor Kv (m³/hr)
DAN408 Aluminium 1" 30 0 350 NBR 13
Size 1"BSP
Coil Type Epoxy Round Coil
Valve Type 2/2 way Normally Closed Screwed End
Key factor with Quick Release Initial Flow Adjustment, Opening Time Adjustment
Body Material Aluminum Pressure Die Cast
Pressure Range 0 to 350 mbar
Temperature (Media) -10° C to 60° C
Seal Nitrile (NBR)
Media Air, Natural Gas, Town Gas
Application Generally used in a boiler or industrial heating application related to Town Gas, Natural gas
Other Specification / Data Check the tabs given below for details
View PDF

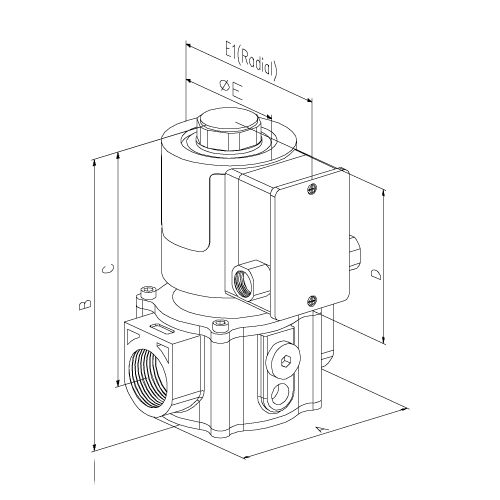

Model No. Port Size A B C D E E1
DAN408 1" 108.50 164.50 130.50 85 74 105
₹ 3790.00
10-14 Days
Prepaid
Accepted
Part COD
Accepted
Full COD
Unavailable
Return
Accepted
As per return policy
