Uflow 1 Inch 2/2 Way Normally Close Brass Body Diaphragm Solenoid Valve with Epoxy Moulded LED Coil

Uflow 1 Inch 2/2 Way Normally Close Brass Body Diaphragm Solenoid Valve with Epoxy Moulded LED Coil

Brand UFLOW

₹ 3376 (Incl. of all taxes)

₹ 2861 + ₹ 515 GST

MRP ₹4219

Select Options:

230v AC

24v DC

110v AC

12v DC

24v AC

Offers and Coupons

Save instantly 2% with online payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets.

Get flat Rs. 100 OFF

Min cart value ₹10,000

INDUSO100

Click to Copy

Get GST invoice and save up to 18% on business purchases

VIEW

Brand Warranty

100% Genuine Products

Safe & Secure Payment

Nationwide Delivery

Multi-Brands

Weight	1 KG

PORT

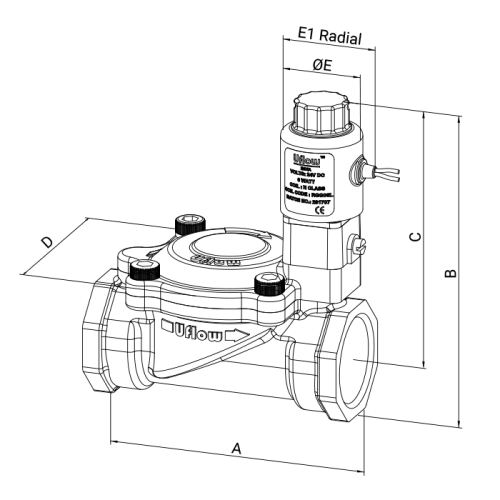

Refer technical data sheet (Available in BSP threading)

END CONNECTION

Screwed Ends

BODY MATERIAL

Forged Brass

DIAPHRAGM
MEDIA TEMP.

Nitrile (NBR)	EPDM Optional	Viton (FKM) Optional
-30° C to 90° C	-10° C to 140° C	-10° C to 180° C

CIRCUMSTANCE TEMP.

-10° C to 70° C

MEDIA

Steam, Hot Water, Hot Fluid, Hot Oil

MAIN FEATURES

Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment.

OPERATING VOLTAGE
POWER CONSUMPTION

24AC	110AC	230AC	12DC	24DC
6W	6W	6W	6W	6W

COIL FEATURES

High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

COIL HOUSING

Epoxy Moulded Coil with LED, Metallic Round Coil with Lead Wire

OPTIONAL FEATURE

90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.

OTHER SPECIFICATION DATA

Available on Request

NOTE: Use of filter in the inlet port is recommended.

Model No.	PBN460
Body Material	Forged Brass
Pipe Size (Inch)	1"
Orifice (mm)	25
Min. Operating Pressure (kg/cm²)	0.50
Max. Operating Pressure (kg/cm²)	10
Seal & Diaphragm Material	NBR
Flow Factor Kv (m³/hr)	9.00

* Note – Seal : EPDM / VITON on request

Size	1"BSP
Coil Type	Epoxy Moulded LED Coil
Valve Type	2/2 way Pilot Operated with Manual Override
Body Material	Forged Brass
Pressure Range	0.5 to 10 kg/cm2 (bar)
Temperature (Media)	-30° C to 90° C
Seal	Nitrile (NBR)
Media	Suitable for Air, Water, Gas, Oil
Other Specification / Data	Check the tabs given below for details
