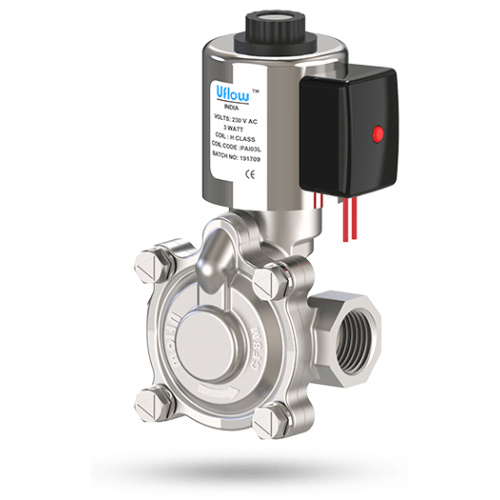

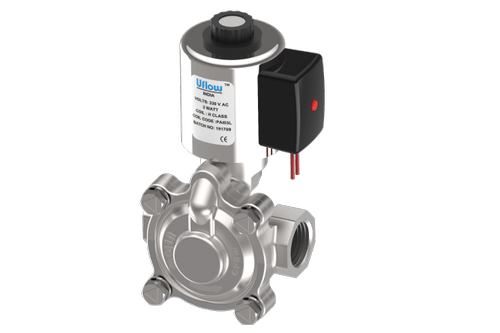

Uflow 1 Inch 2/2 Way High Pressure Diaphragm Solenoid Valve SS304 with Power Saver Coil – Screwed Ends

4,415.005,519.00 (-20%)

In stock

Features:

  • Size : 1″BSP
  • Coil Type : Power Saver Coil
  • Valve Type : High Pressure 2/2 way Normally Closed Screwed End
  • Body Material : SS304 (ASTM A351 Grade CF8)
  • Pressure Range : 1 to 20 kg/cm2 (bar)
  • Temperature (Media) : -30° C to 90° C
  • Seal : Nitrile (NBR)
  • Media : Suitable for Air, Water, Chemical, Gas
  • Other Specification / Data : Check the tabs given below for details

W3Schools

4,415.005,519.00 (-20%)

Clear

Description

Port Refer technical data sheet (Available in BSP threading)
End Connection Screwed
Body Material SS ASTM A351 Grade CF8
Diaphragm
Nitrile (NBR) EPDM Viton (FKM)
-30° C to 90° C -10° C to 140° C -10° C to 180° C
Media Temp.
Media Air, Water, Chemical, Gas
Main Features Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment
Operating Voltage
230AC 24DC
8W 11W
Power Consumption
Coil Features High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require..
Other Coil Types Metallic Round Coil with Wire, Metallic Round Coil with LED, Epoxy Moulded Coil with LED, IP-68 Weather Proof Coil, IP-67 Flame Proof Coil
Optional Feature 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.
Other Specification Data Available on Request

NOTE: Use of filter in the inlet port is recommended.

Dimensions

Model No. Port Size Diagram No A B C D E E1
PCN4G
1"
14.1
96
145.50
104
64
48
57

Technical Data

Model  No.   Body    Material   Pipe (Inch) Orifice (mm) Min. Operating Pressure Kg/cm² Max. Operating Pressure Kg/cm² Seal & Diaphragm   Material Flow Factor Kv m³ / hr
PCN4G CF8 (SS304) 1” 25 1 20 NBR 8.20

* Note – Body Material : CF8M (SS316) on request, Seal : EPDM / VITON on request
