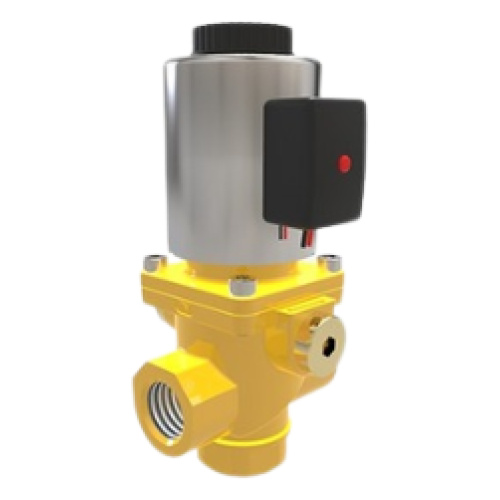

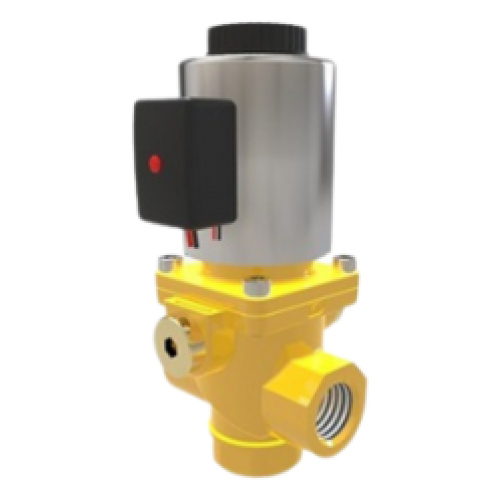

Uflow 1/2 Inch 2/2 way 500mbar Town Gas/Natural Gas/LPG Solenoid Valve with Power Saver Metallic Round Coil
₹2,770.00₹3,463.00 (-20%)
Features:
- Size : 1/2″BSP
- Coil Type : Metallic Round Power Saver Coil
- Valve Type : 2/2 way Normally Closed Screwed End
- Key factor : with Quick Release Initial Flow Adjustment, Opening Time Adjustment
- Body Material : Aluminum Pressure Die Cast
- Pressure Range : 0 to 500 mbar
- Temperature (Media) : -10° C to 60° C
- Seal : Nitrile (NBR)
- Media : Air, Natural Gas, Town Gas
- Application : Generally used in a boiler or industrial heating application related to Town Gas, Natural gas
- Other Specification / Data : Check the tabs given below for details
Description
Port | Refer technical data sheet (Available in BSP threading) | ||||
---|---|---|---|---|---|
End Connection | Screwed Ends | ||||
Body Material | Aluminum Pressure Die Cast | ||||
Diaphragm | Nitrile (NBR) | ||||
Media Temp | -10° C to 60° C | ||||
Circumstance Temp | -30° C to 70° C | ||||
Media | Air, Natural Gas, Town Gas, Air. | ||||
Main Features | Flow adjustment, Opening time adjustment, Quick release initial flow adjustment | ||||
Operating Voltage |
|
||||
Power Consumption | |||||
Coil Features | High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.. | ||||
Other Coil Types | Round Metallic Coil With Lead Wire, Round Metallic Coil with LED | ||||
Other Specification Data | Available on Request |
NOTE: Use of filter in the inlet port is recommended.
- Coils are conforming as per IEC-60335-1 with derivatives (LVD / EMC).
- Gas Solenoid Valve complies as per EN-161 requirement.
Dimensions
Model No. | Port Size | A | B | C | D | E | E1 |
---|---|---|---|---|---|---|---|
DAN213
|
1/2"
|
72
|
147
|
118
|
70
|
50
|
60
|
Technical Data
Model No. | Body Material | Pipe (Inch) | Orifice (mm) | Min. Operating Pressure mbar | Max. Operating Pressure mbar | Seal & Diaphragm Material | Flow Factor Kv m³/hr |
---|---|---|---|---|---|---|---|
DAN213 | Aluminium | 1/2″” | 15 | 0 | 500 | NBR | 4 |
